Early Production (SBEC)

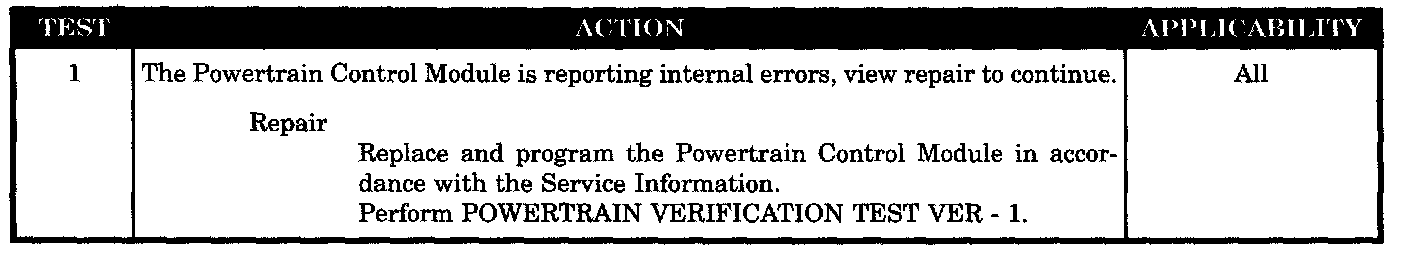

Test 1:

SYMPTOM
P0601-PCM INTERNAL CONTROLLER FAILURE

TEST NOTE
This symptom is diagnosed using the test P0600-PCM FAILURE SPI COMMUNICATIONS.

WHEN MONITORED
Ignition key on.

SET CONDITION
Internal checksum for software failed, does not match calculated value.

POSSIBLE CAUSES
- PCM internal or SPI
