P0586

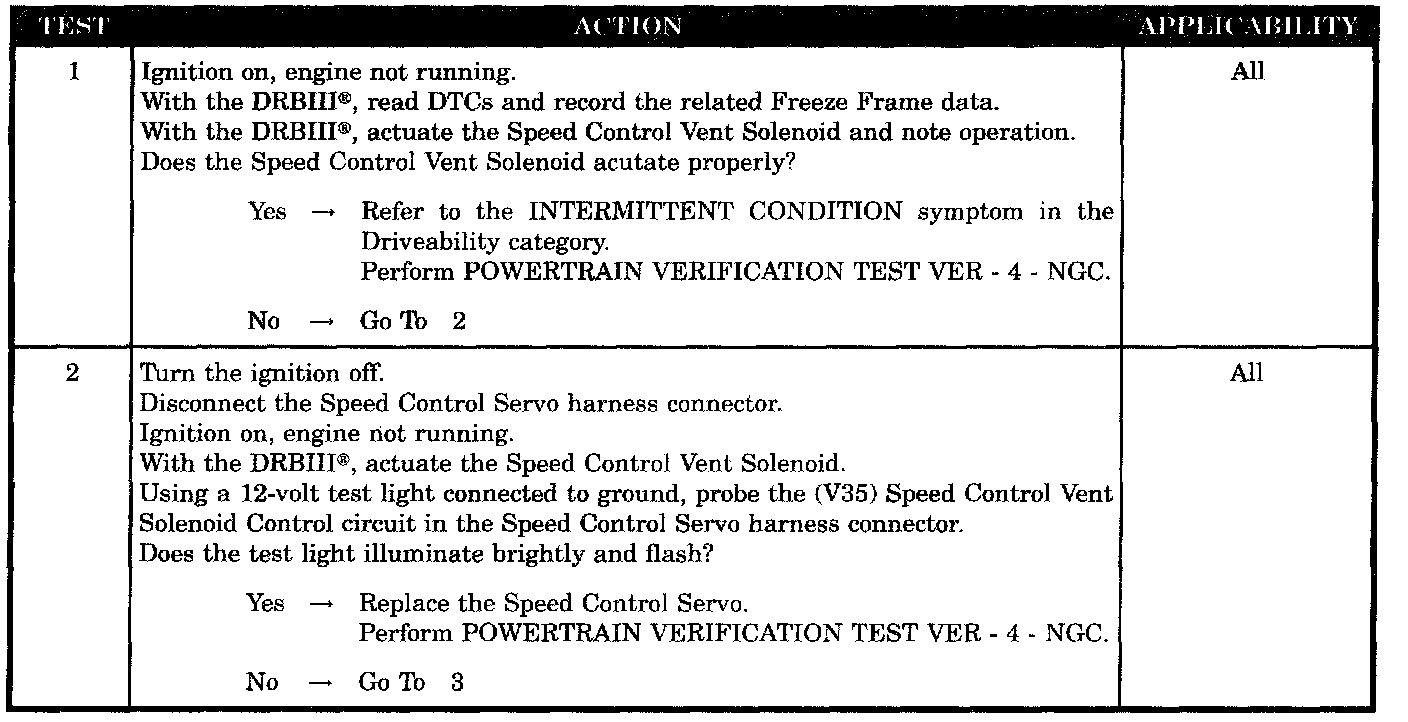

Test 1 - 2:

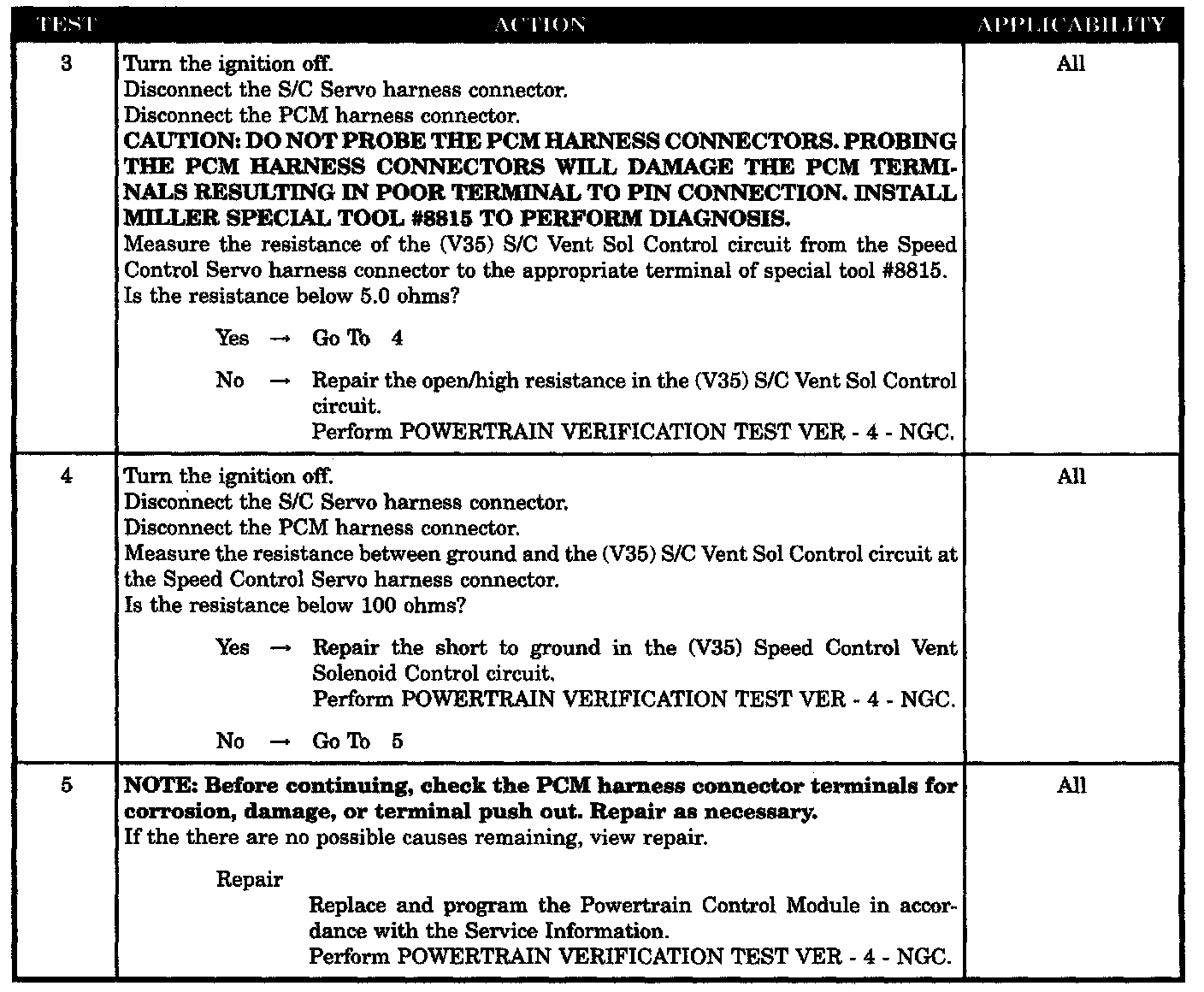

Test 3 - 5:

Test 1:

SYMPTOM
P0586-SPEED CONTROL VENT SOLENOID CIRCUIT

WHEN MONITORED
Ignition on. Speed Control active.

SET CONDITION
The PCM detects an open or short to voltage in the Speed Control Vent Control circuit. One Trip Fault.

POSSIBLE CAUSES
- Speed control solenoid operation
- Speed control vent solenoid
- (V35) S/C vent SOL control circuit open
- (V35) S/C vent SOL control circuit shorted to ground
- PCM (vent solenoid)
