P0582

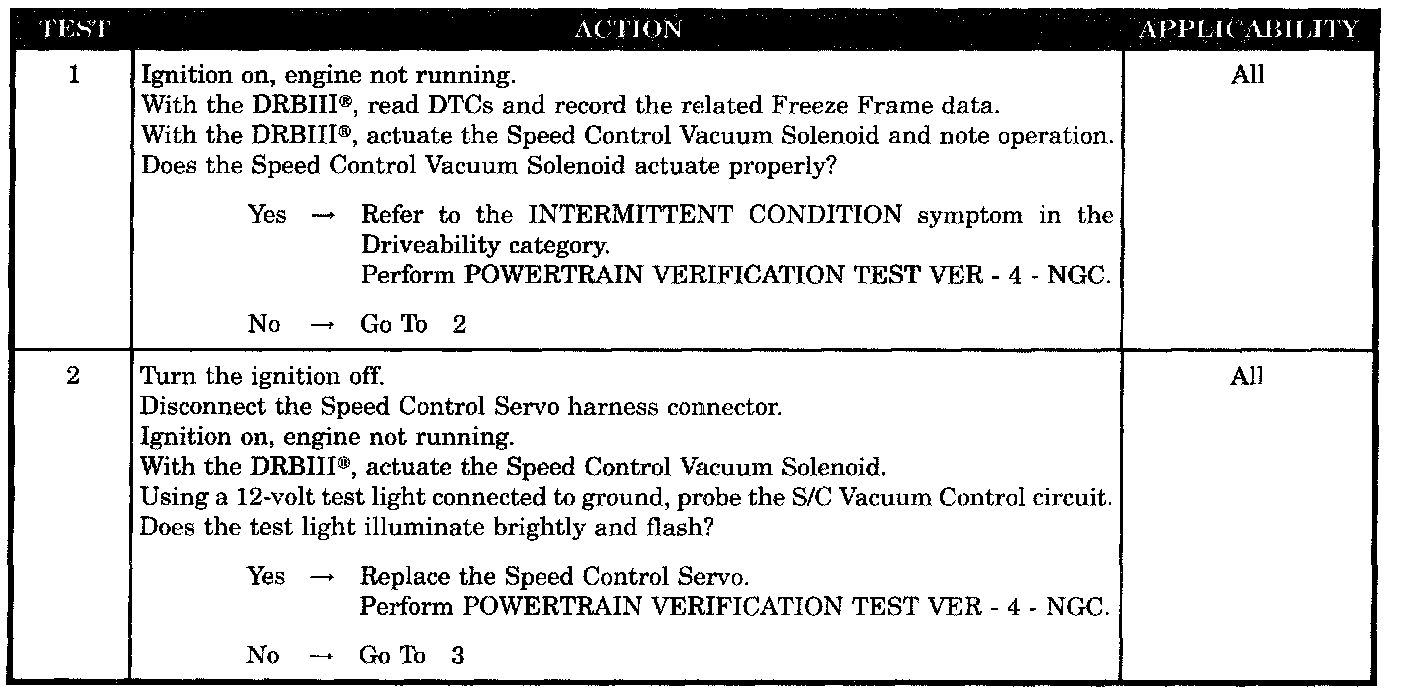

Test 1 - 2:

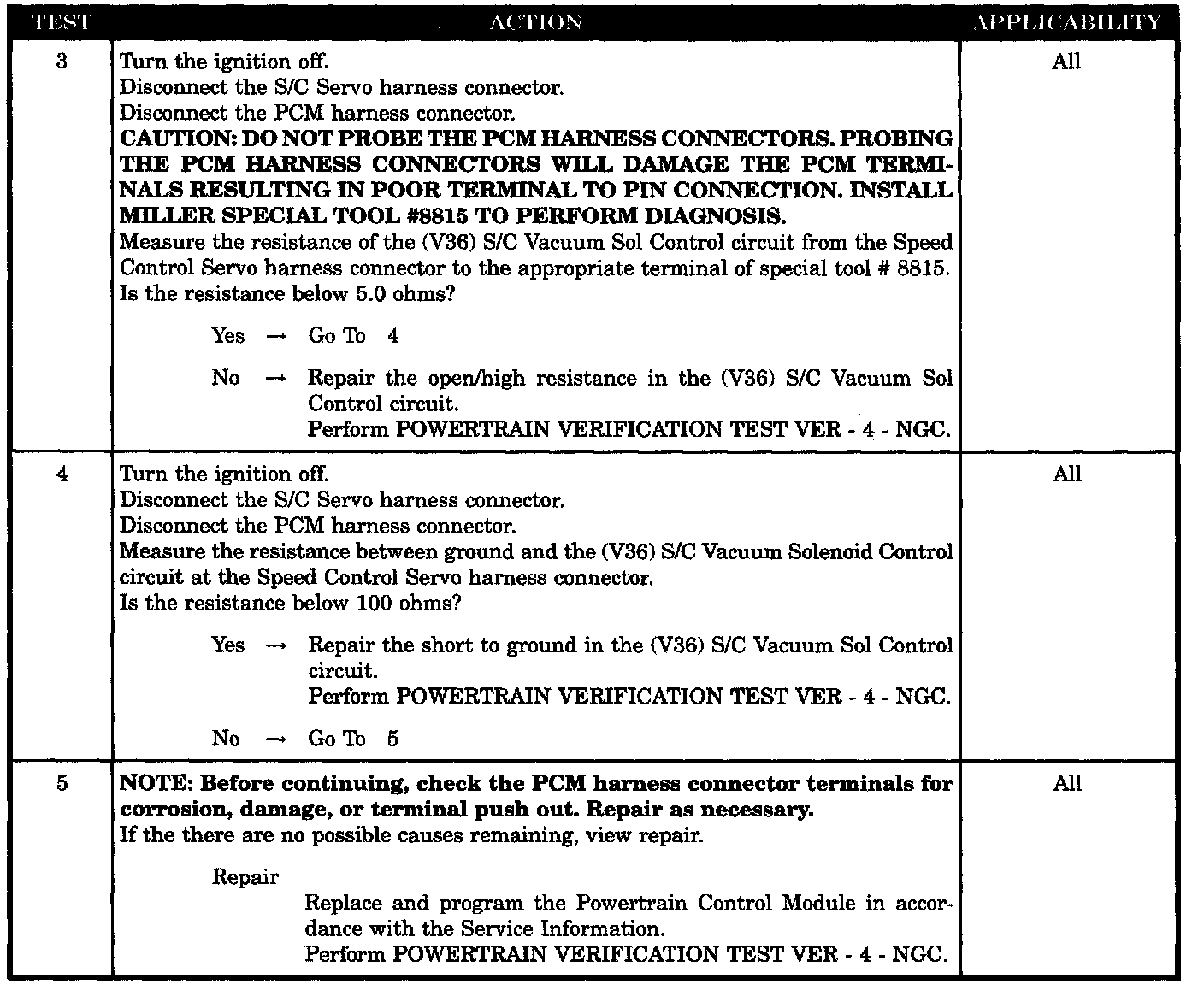

Test 3 - 5:

SYMPTOM
P0582-SPEED CONTROL VACUUM SOLENOID CIRCUIT

WHEN MONITORED
Ignition on. Speed Control active.

SET CONDITION
The PCM detects an open or short to voltage in the Speed Control Vacuum Control circuit. One Trip Fault.

POSSIBLE CAUSES
- Speed control solenoid operation
- Speed control vacuum solenoid
- (V36) S/C vacuum SOL control circuit shorted to ground
- (V36) S/C vacuum SOL control circuit open
- PCM (vacuum solenoid)
