EATX Transmission

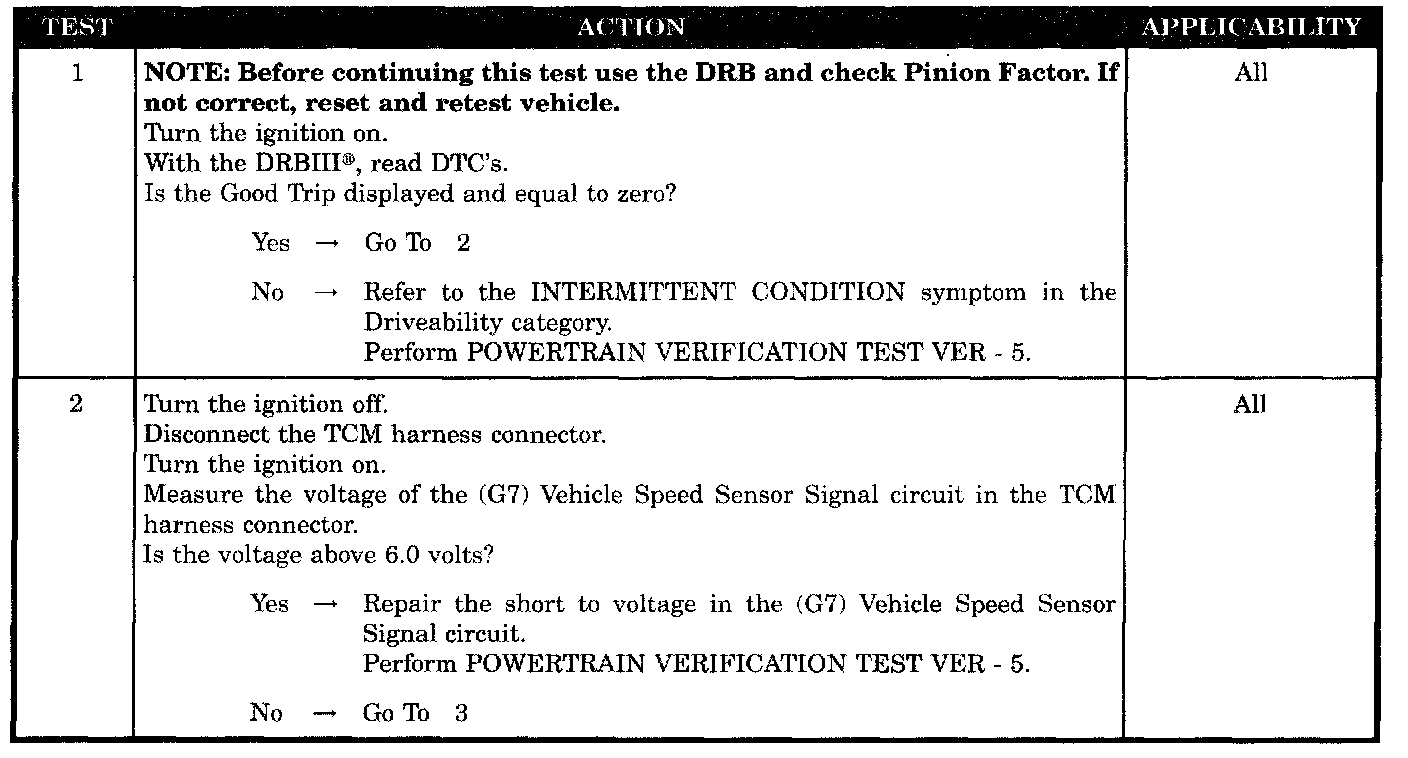

Test 1 - 2:

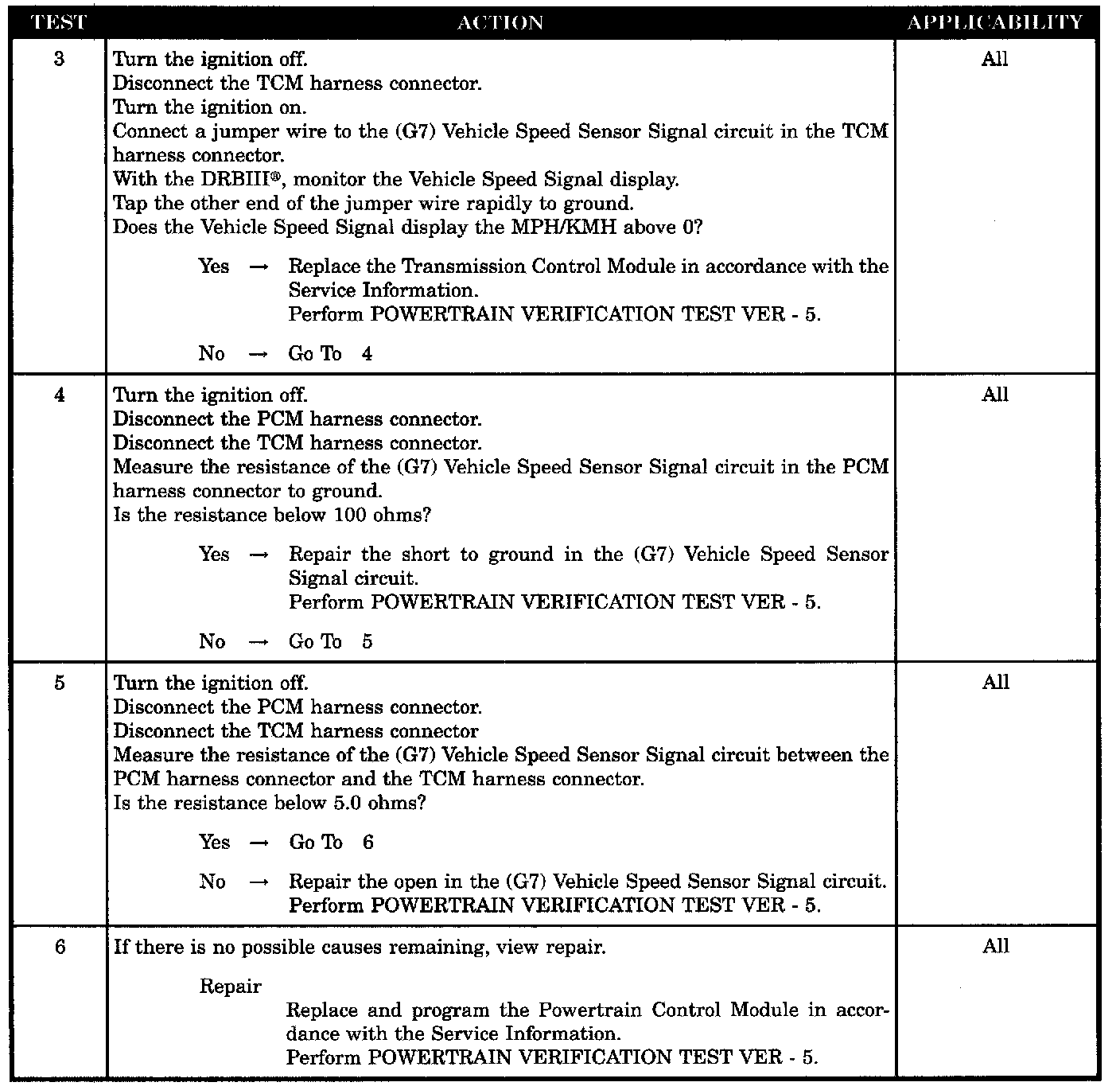

Test 3 - 6:

SYMPTOM
P0500-NO VEHICLE SPEED SIGNAL (EATX TRANSMISSION)

WHEN MONITORED
With the engine running, transmission not in park or neutral, brakes not applied, and engine rpm greater than 2200.

SET CONDITION
This code will set if no vehicle speed signal is received from the TCM (transmission control module) for more than 7 seconds for 2 consecutive trips.

POSSIBLE CAUSES
- Good trip equal to zero
- (G7) vehicle speed sensor signal shorted voltage
- (G7) vehicle speed sensor signal from TCM
- (G7) vehicle speed sensor signal shorted to ground
- (G7) vehicle speed sensor signal open
- PCM (G7) VSS signal
