P0218

Symptom:
P0218-HIGH TEMPERATURE OPERATION ACTIVATED

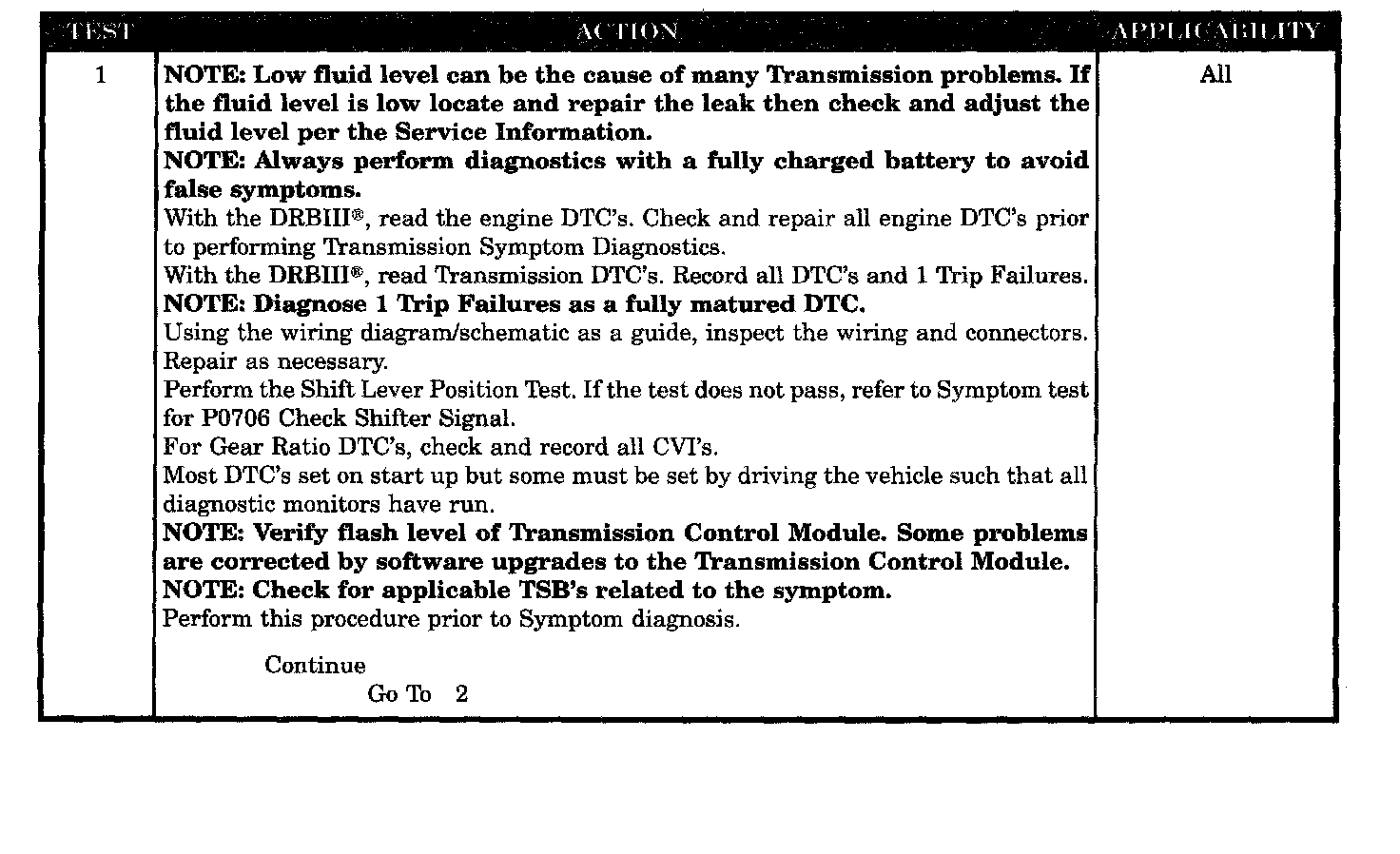

Test 1:

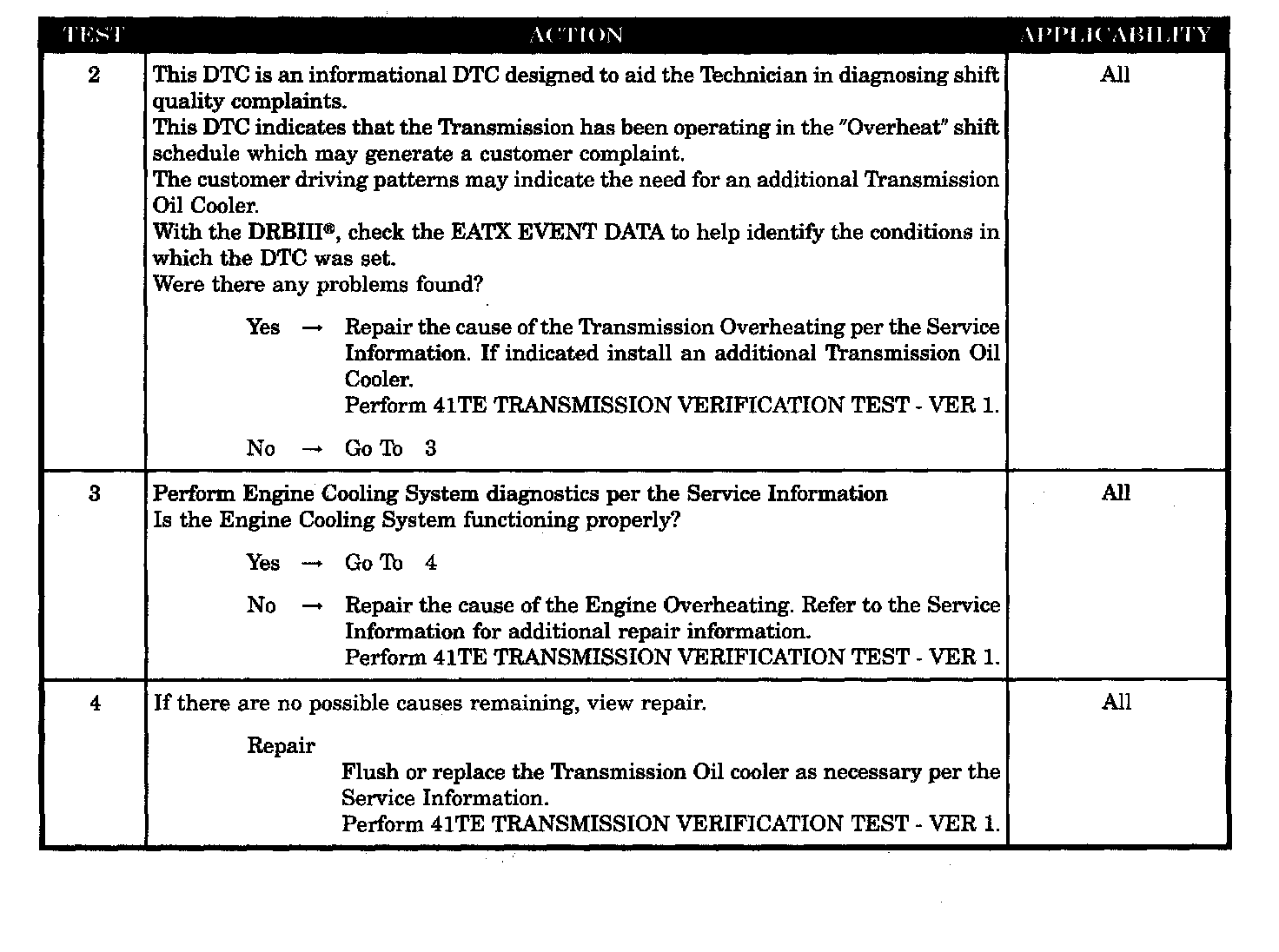

Test 2-4:

When Monitored:
Whenever the engine is running.

Set Condition:
Immediately when the Overheat shift schedule is activated when the Transmission Oil Temperature reaches 116°C or 240°F.

POSSIBLE CAUSES
- ENGINE COOLING SYSTEM MALFUNCTION
- TRANSMISSION OIL COOLER PLUGGED
- HIGH TEMPERATURE OPERATIONS ACTIVATED
