P0124

Symptom:
P0124-TPS/APPS INTERMITTENT

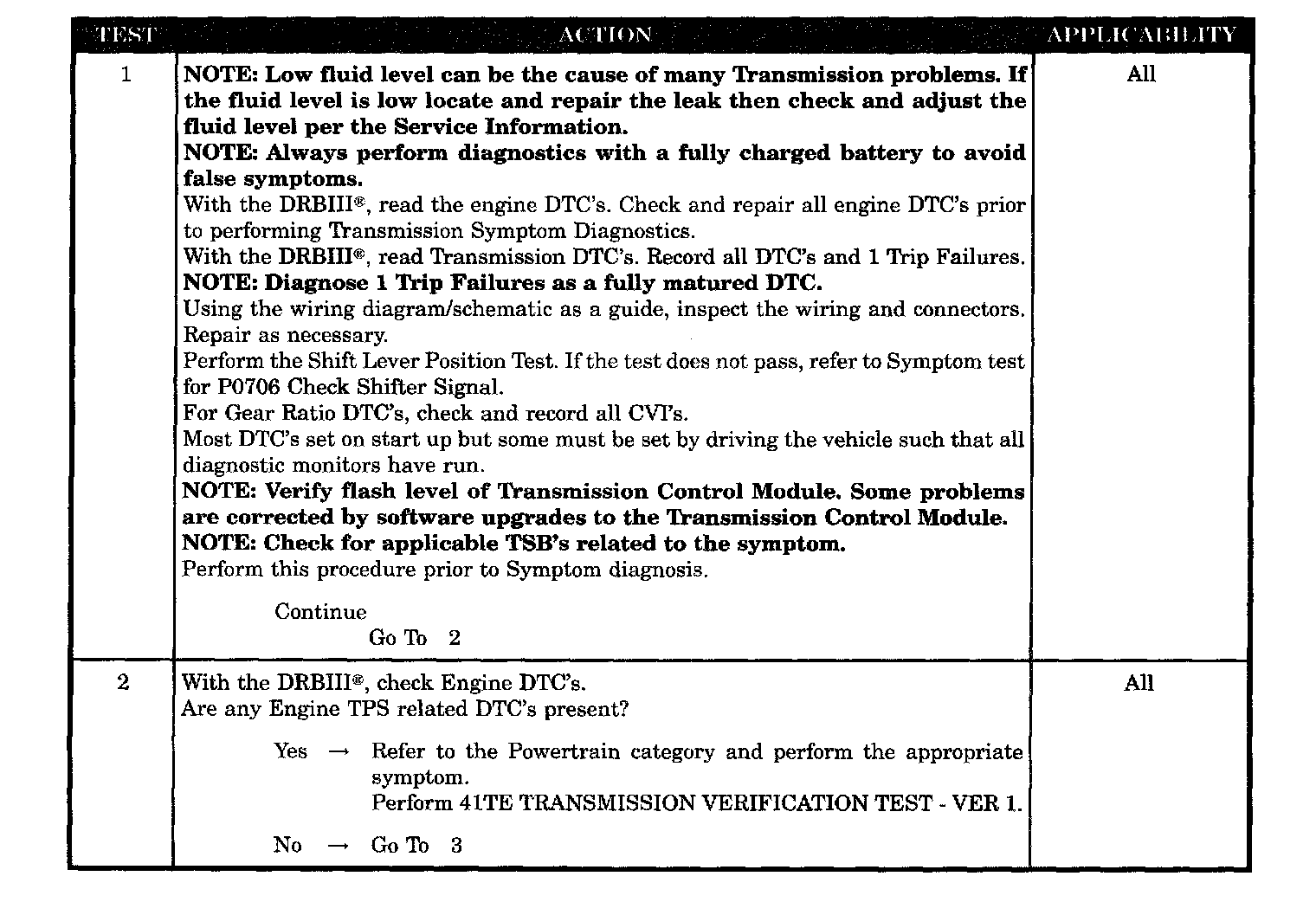

Test 1-2:

Test 3-4:

When Monitored:
Continuously with the ignition on and engine running.

Set Condition:
This DTC will set with a throttle angle between 6° and 120.6° with a 5° or higher change under 7.0 milliseconds.

POSSIBLE CAUSES
- ENGINE TPS DTC'S PRESENT
- THROTTLE POSITION SENSOR
- TRANSMISSION CONTROL MODULE
