Transmission Code

Symptom:
P0122-TPS/APPS LOW

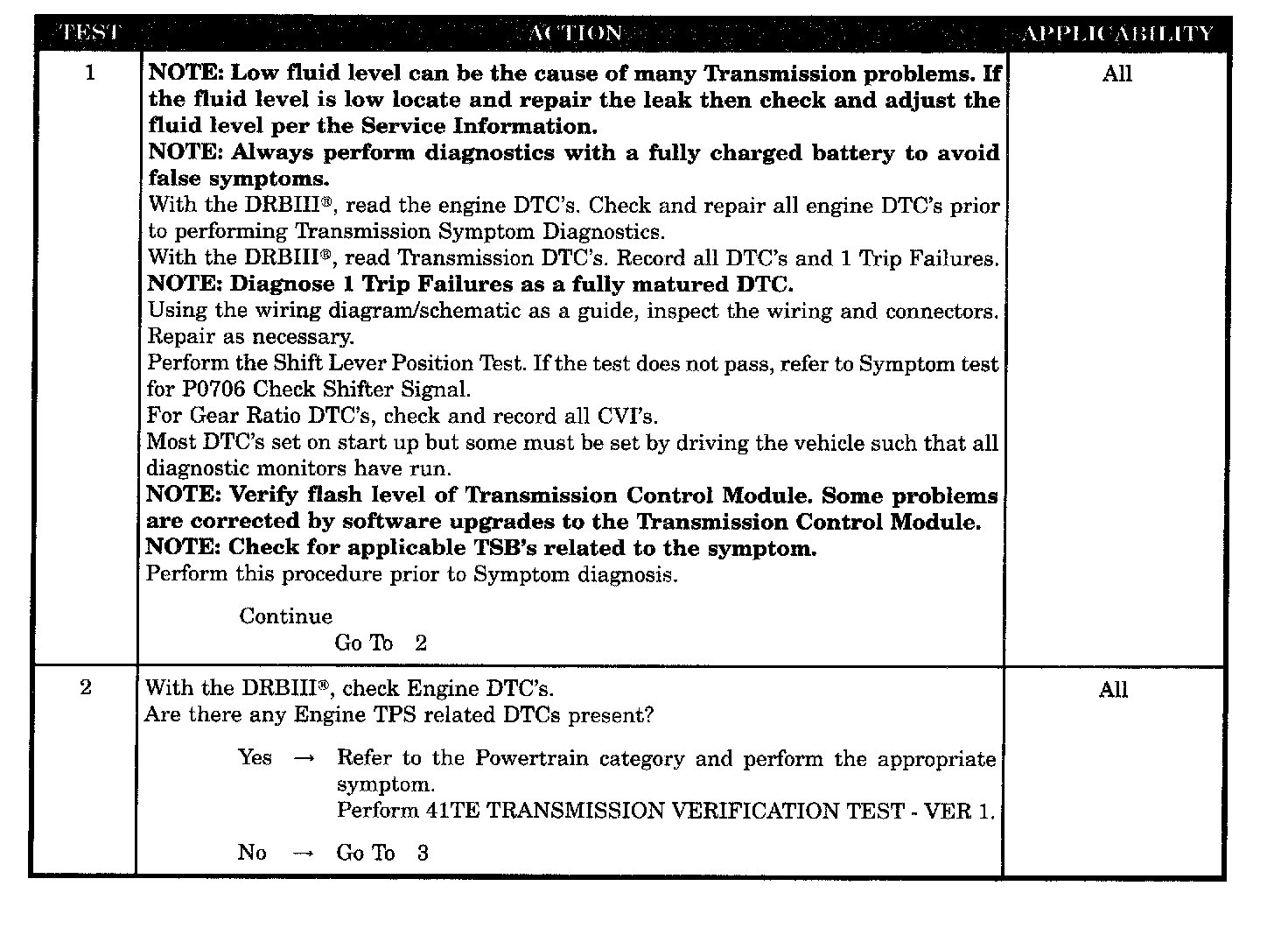

Test 1-2:

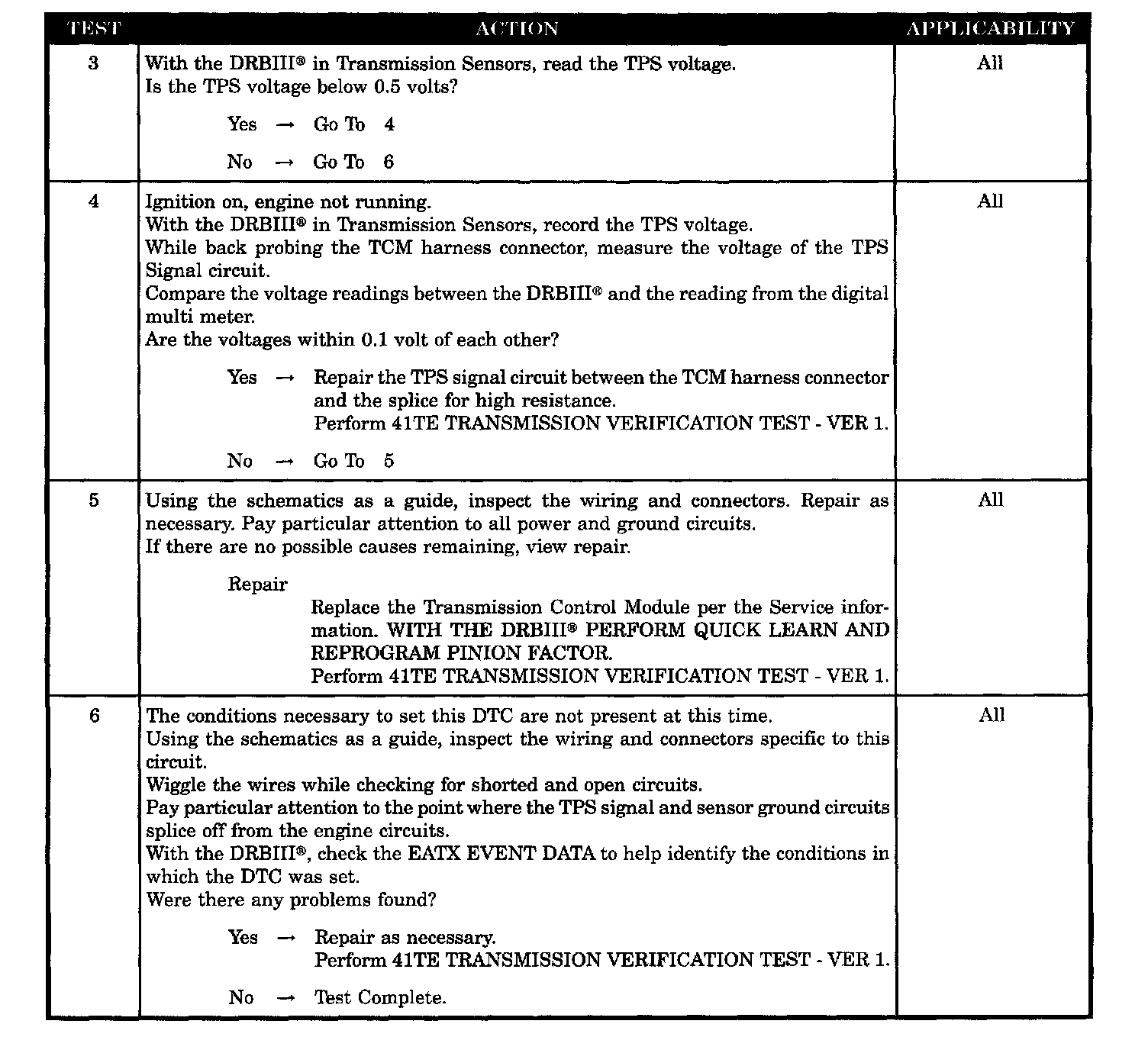

Test 3-6:

When Monitored:
Continuously with the ignition on and engine running.

Set Condition:
This DTC will set if the monitored TPS voltage drops below 0.078 volts for the period of 0.48 seconds.

POSSIBLE CAUSES
- ENGINE TPS DTC'S PRESENT
- TPS SIGNAL CIRCUIT HIGH RESISTANCE
- TRANSMISSION CONTROL MODULE
- INTERMITTENT WIRING AND CONNECTORS
