No Response From Transmission Control Module - Transmission Control System

Symptom:
NO RESPONSE FROM TRANSMISSION CONTROL MODULE - EATX

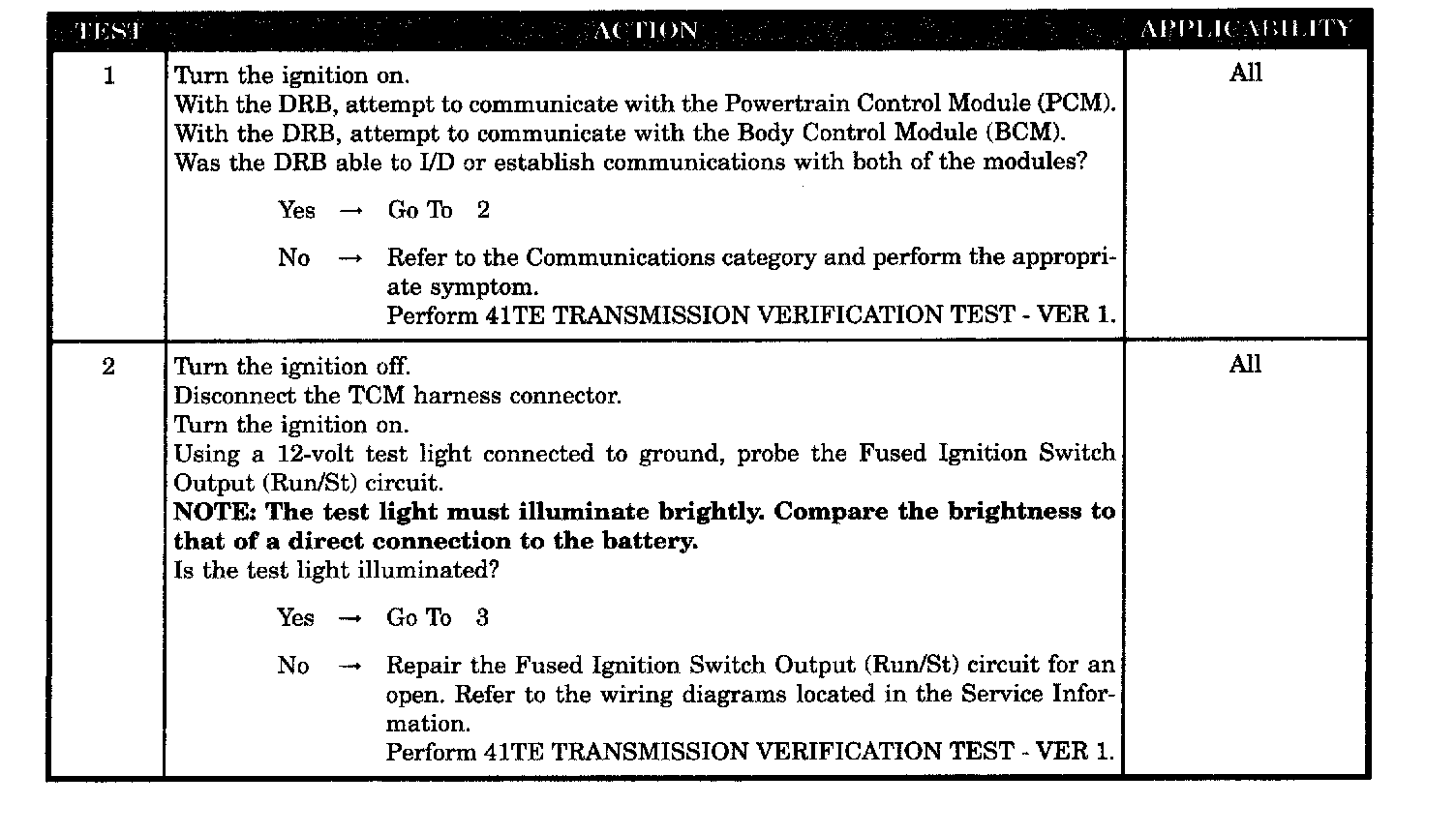

Test 1-2:

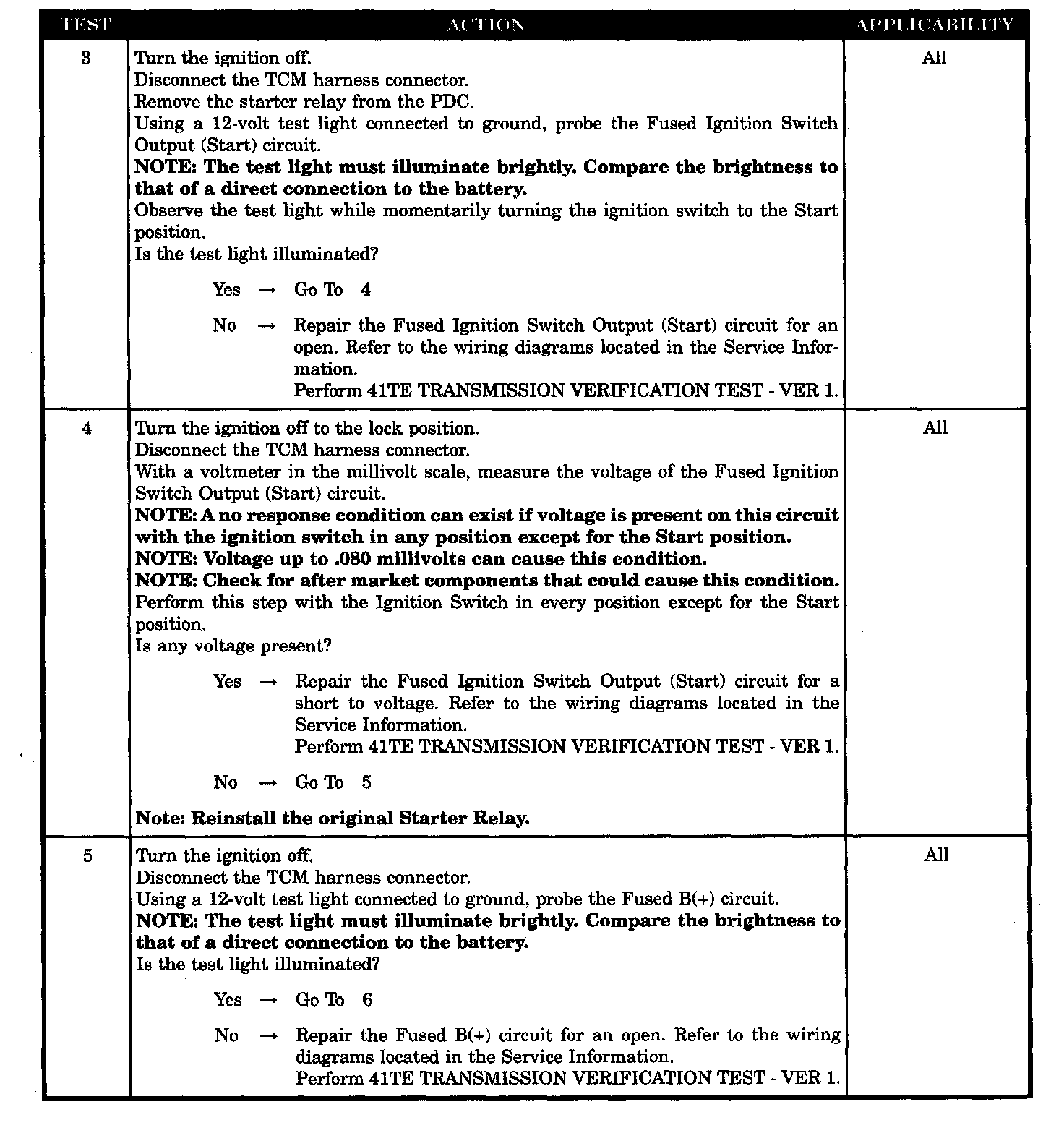

Test 3-5:

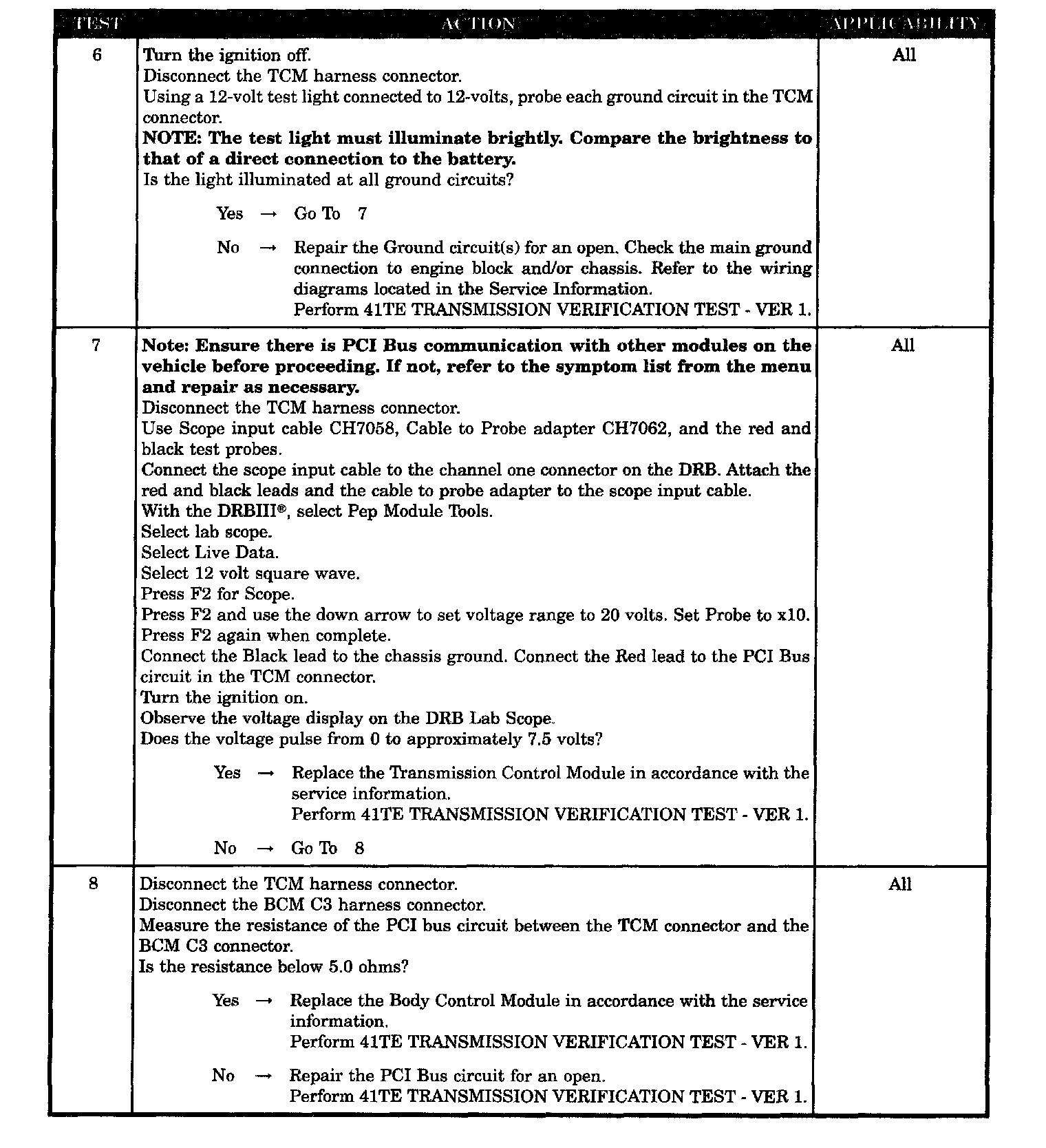

Test 6-8:

POSSIBLE CAUSES
- NO RESPONSE FROM TRANSMISSION CONTROL MODULE
- FUSED IGNITION SWITCH OUTPUT (RUN/ST) CIRCUIT OPEN
- FUSED IGNITION SWITCH OUTPUT (START) CIRCUIT OPEN
- FUSED IGNITION SWITCH OUTPUT (START) CIRCUIT SHORT
- FUSED B(+) CIRCUIT OPEN
- GROUND CIRCUIT(S) OPEN
- TRANSMISSION CONTROL MODULE
- PCI BUS CIRCUIT OPEN
- BODY CONTROL MODULE
