Headlamp Switch: Testing and Inspection

HEADLAMP LEVELING SWITCH - EXPORT
1. Remove the headlamp leveling switch.

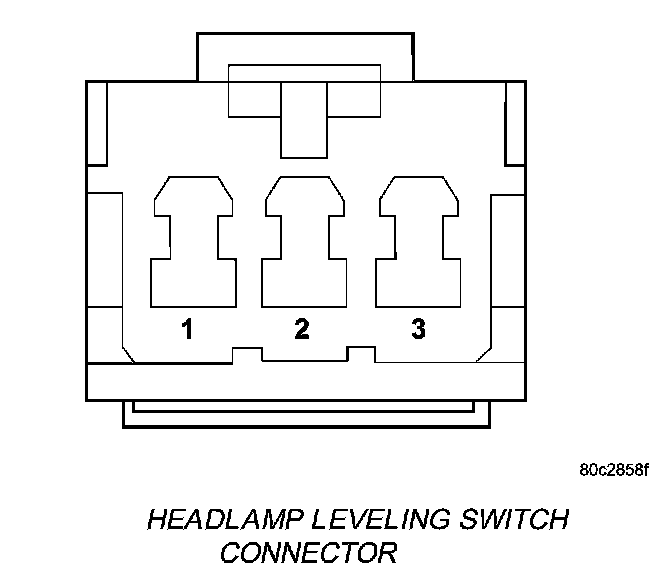

Headlamp Leveling Switch Connector:

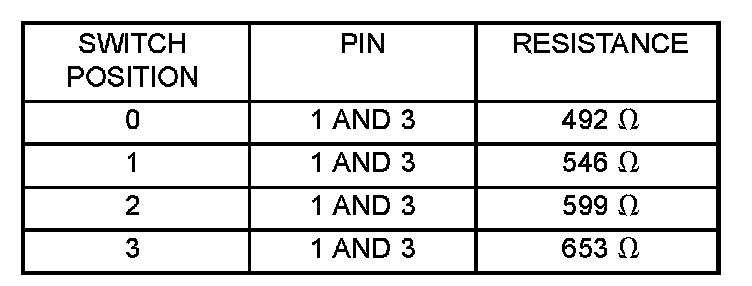

Headlamp Leveling Switch Resistance:




2. Using an ohmmeter, check the resistance readings between headlamp leveling switch pins.
