Ignition Coil Capacitor

REMOVAL
1. Remove the negative battery cable.

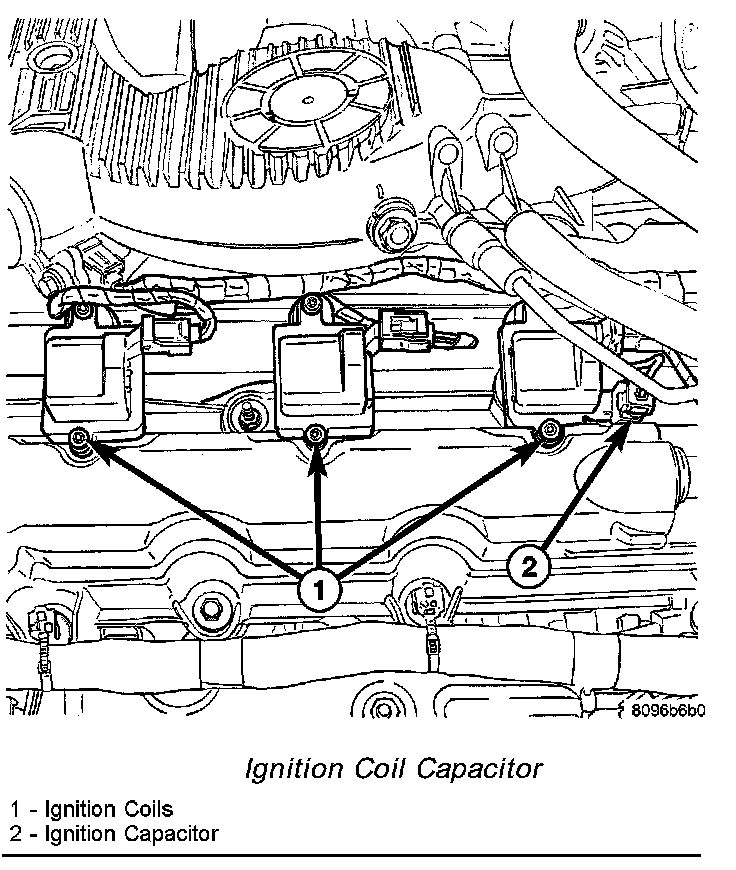

Ignition Coil Capacitor:

2. Disconnect the electrical connector.
3. Remove nut and capacitor.

INSTALLATION
1. Install capacitor and tighten nut.
2. Attach electrical connector to capacitor.
3. Install the negative battery cable.
