Evaporative Emissions System: Specifications

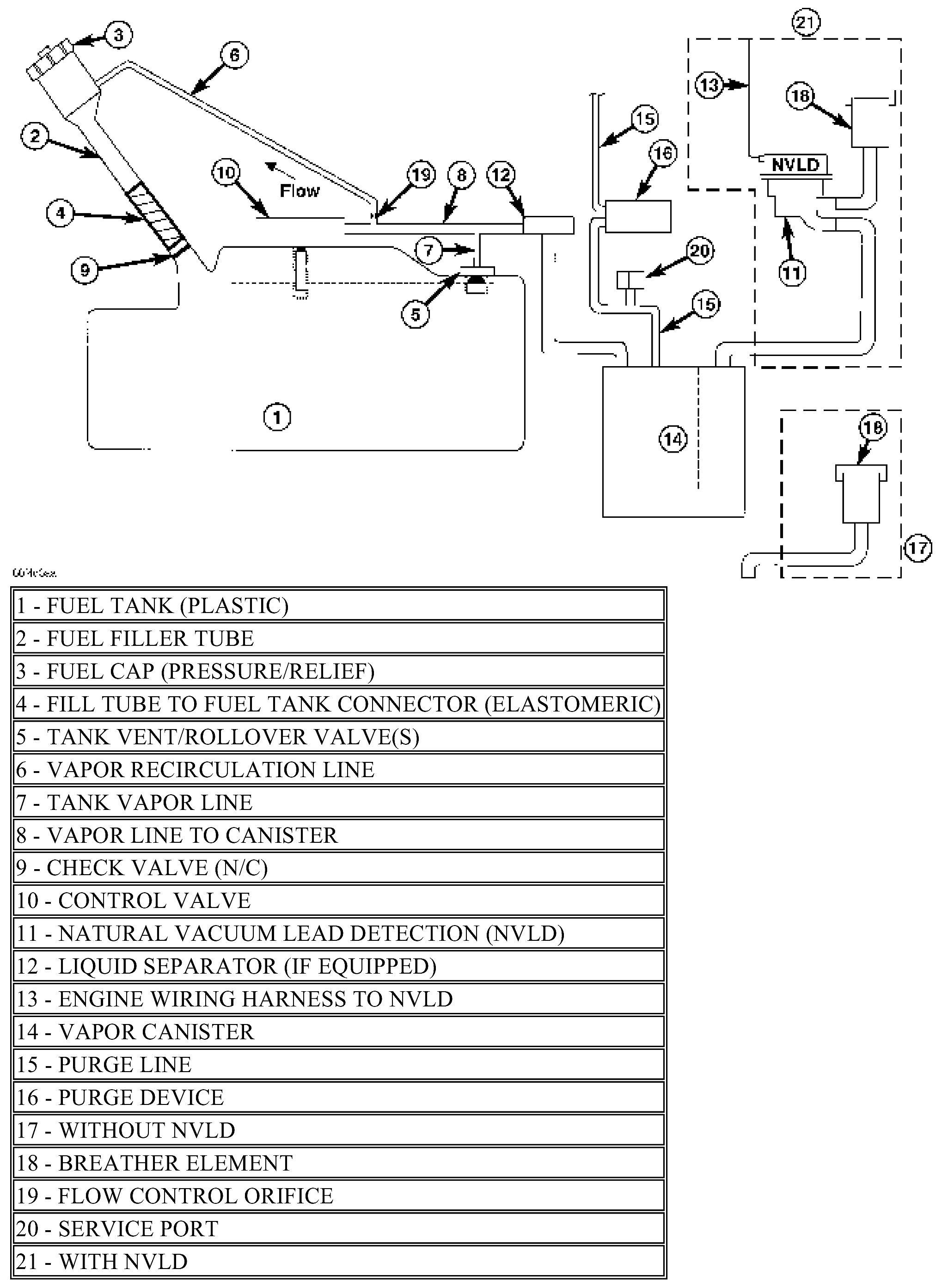

ORVR System Schematic 2.0, 2.4, 2.7 MTX & AUTOSTICK (GAS & FFV):

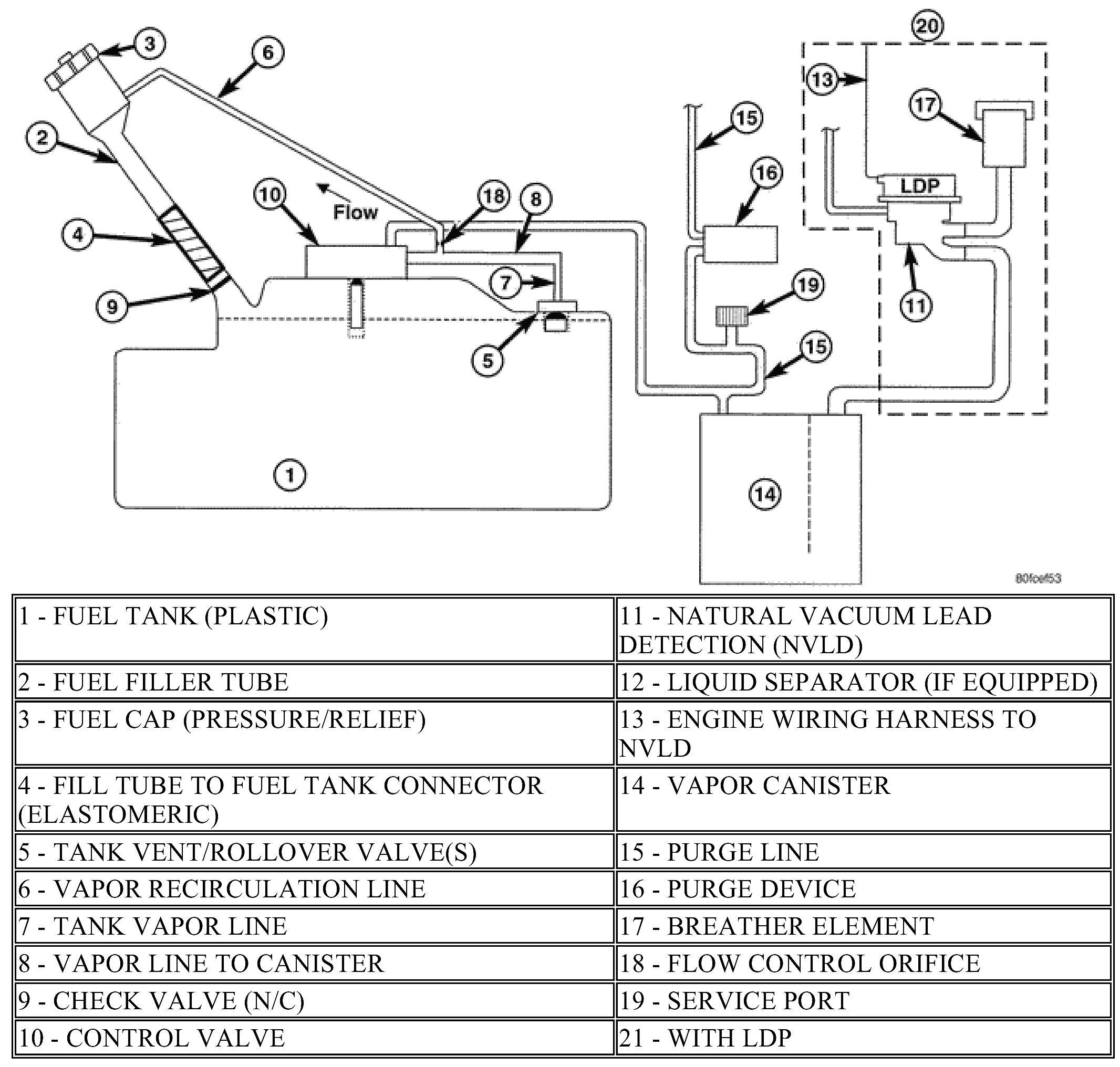

ORVR System Schematic (PZEV):
