License Plate Lamp Unit Replacement

REMOVAL
1. Disconnect and isolate the battery negative cable.

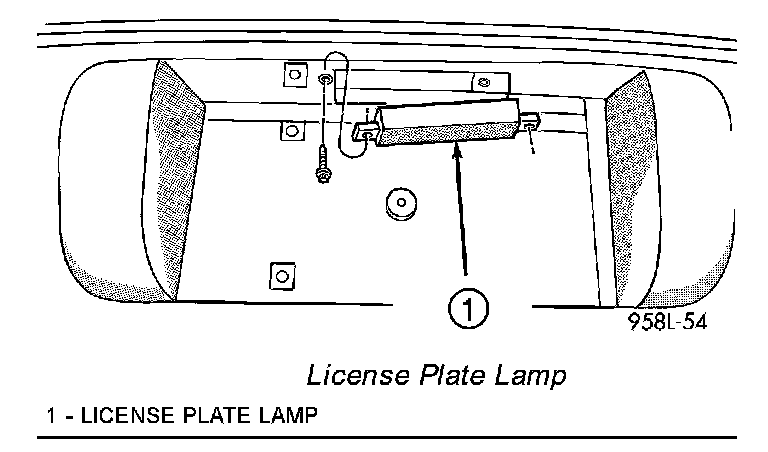

License Plate Lamp:

2. Remove screws attaching license plate lamp.
3. Remove license plate lamp from fascia.
4. Remove socket from lamp.

INSTALLATION
1. Install socket to lamp.
2. Install license plate lamp to fascia.
3. Install screws attaching license plate lamp.
4. Connect the battery negative cable.
