Center High Mounted Stop Lamp Unit (CHMSL) Replacement

REMOVAL
1. Disconnect and isolate the battery negative cable.
2. Remove fasteners from trunk latch cover by prying under the head of the fastener with a flat bladed tool.
3. Remove trunk latch cover.
4. Remove socket from CHMSL.

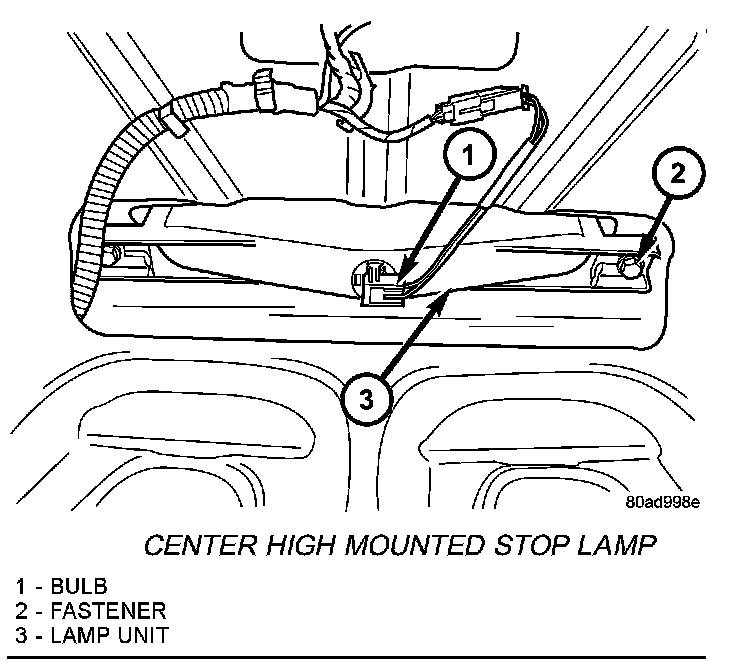

Center High Mounted Stop Lamp:

5. Remove screws attaching CHMSL to decklid.
6. Remove CHMSL from decklid.

INSTALLATION
1. Install CHMSL to decklid.
2. Install screws attaching CHMSL to decklid.
3. Install socket into CHMSL.
4. Install trunk latch cover. Insert fasteners and press into place.
5. Connect battery negative cable.
