Blower Motor: Service and Repair

REMOVAL
1. Disconnect negative battery cable.
2. Remove lower right silencer panel.
3. Remove blower motor connector.
4. Remove the three blower motor mounting screws.

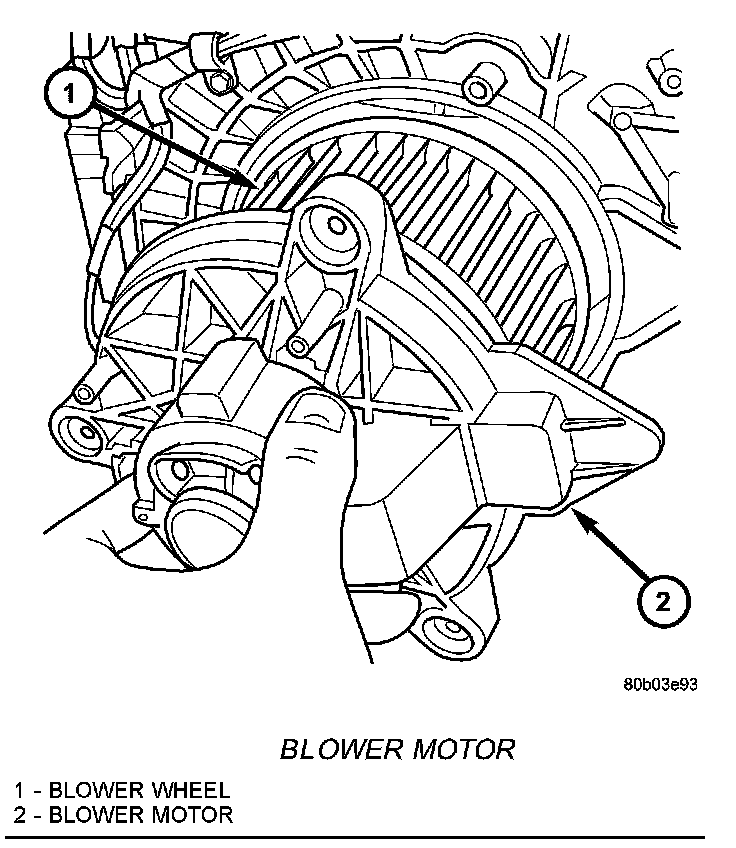

Blower Motor:

5. Remover blower motor from housing.

INSTALLATION
1. Install blower motor into the housing.
2. Install the three blower motor mounting screws.
3. Connect blower motor wiring harness.
