Measuring Connecting Rod Side Clearance
CONNECTING ROD BEARINGSSTANDARD PROCEDURE - CONNECTING ROD FITTING
1. For measuring connecting rod bearing clearance procedure and use of Plastigage Refer to measuring connecting rod bearing clearance procedure.
NOTE: The rod bearing bolts should not be reused.
2. Before installing the NEW bolts the threads should be oiled with clean engine oil.
3. Install each bolt finger tight then alternately torque each bolt to assemble the cap properly.
4. Tighten the bolts to 27 Nm (20 ft. lbs.) PLUS 1/4 turn Do not use a torque wrench for last step.

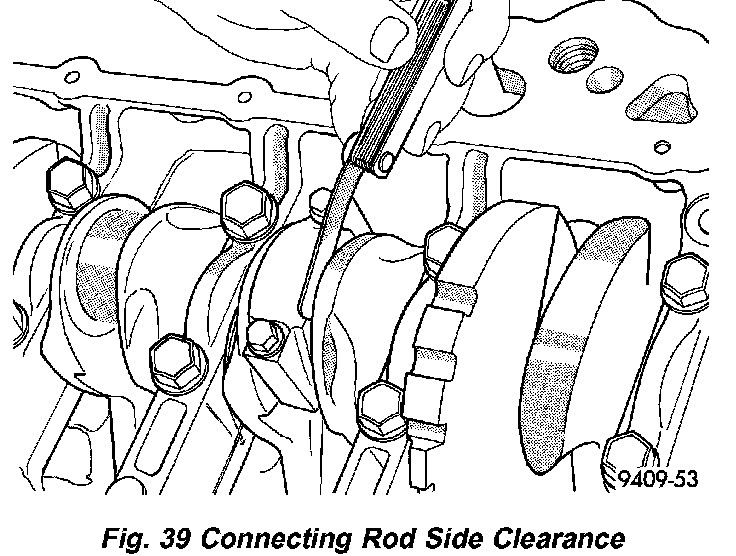

5. Using a feeler gauge, check connecting rod side clearance (Fig. 39).
