Spoiler: Service and Repair
SPOILERREMOVAL - JR-41 (Sedan)
1. Remove the decklid cover if necessary. Refer to Trim Panel.

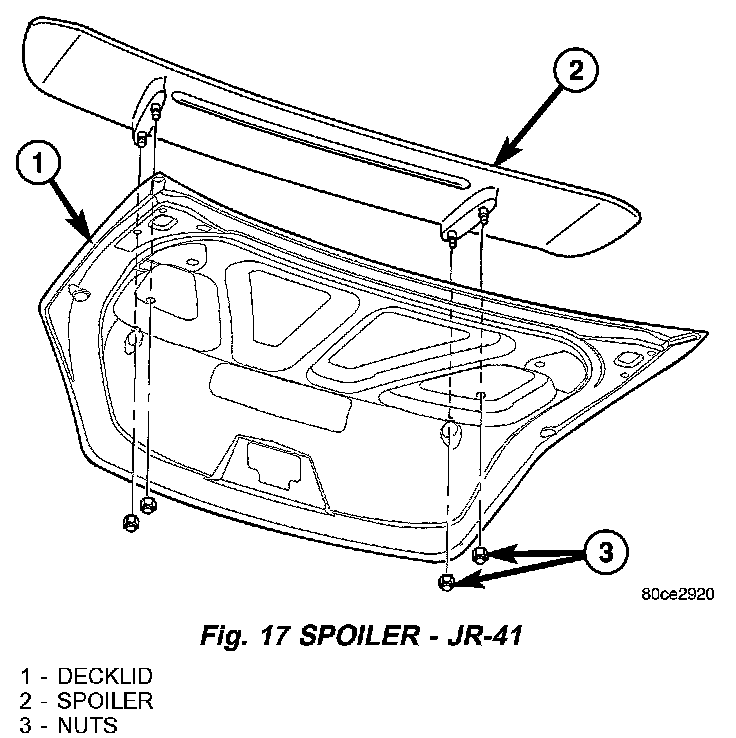

Fig. 17:
2. Remove the four nuts and remove the spoiler (Fig. 17).
REMOVAL - JR-27 (Convertible)
1. Remove the decklid cover if necessary. Refer to Trim Panel.

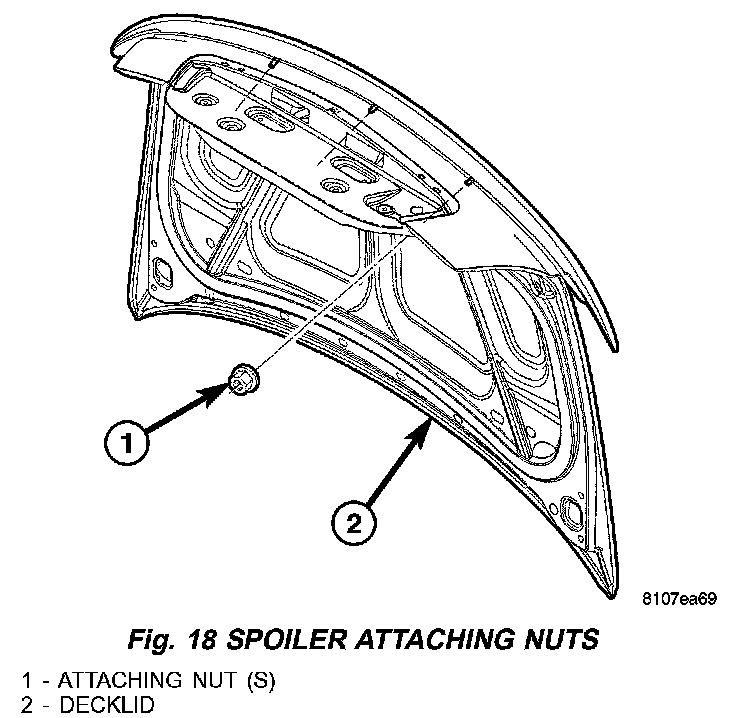

Fig. 18:
2. Remove the three nuts (Fig. 18).
Fig. 19:
3. Using a trim stick or a suitable tool release the double sided tape attaching spoiler to the decklid (Fig. 19).
4. Raising the rear edge of spoiler so the studs clear the decklid and remove the spoiler.
5. Clean area by remove all of the double sided tape and thoroughly clean the area with MOPAR(R) Super Kleen, or equivalent.
INSTALLATION - JR-41 (Sedan)
1. Install the spoiler and nuts (Fig. 17).
2. Tighten nuts to 3 N.m (30 in.lbs.) torque.
3. Install the decklid cover.
INSTALLATION - JR-27 (Convertible)
1. Clean the area of the decklid and spoiler that is to be bonded, with an alcohol based cleaner.
2. Install double sided tape to the spoiler if necessary.
3. Peel the backing from tape on the bottom side of spoiler (Fig. 19).
4. Position spoiler on the decklid aligning studs to holes and spoiler into position.
5. Press firmly on the leading edge of spoiler to assure adhesion.
6. Raise decklid and install nuts attaching spoiler to the decklid. Tighten nuts to 5 N.m (45 in.lbs.) torque (Fig. 18).
7. Close decklid.
