Sunroof / Moonroof Windguard: Service and Repair

WIND DEFLECTOR

REMOVAL
1. Open sunroof glass panel.

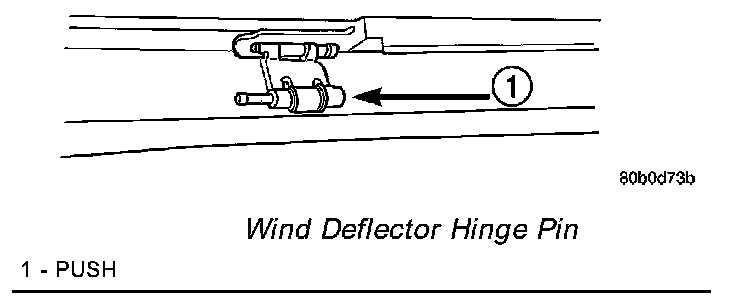

Wind Deflector Hinge Pin:

2. Remove hinge pins by pushing them outboard to release the wind deflector from sunroof housing.

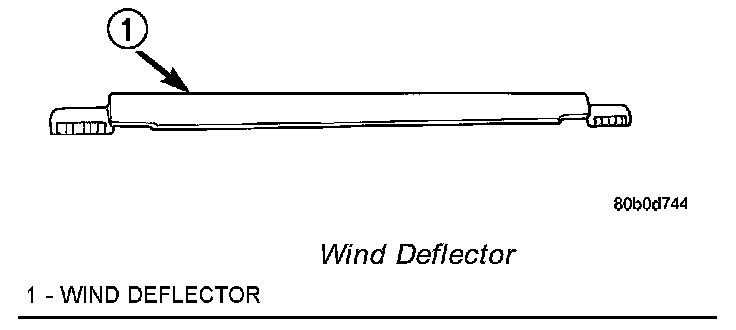

Wind Deflector:

3. Remove wind deflector.

INSTALLATION
1. Place wind deflector on wind deflector brackets.
2. Install wind deflector hinge pins.
3. Test sunroof operation.
