Rear Housing Hose

REMOVAL
1. Move glass panel to the fully closed position.
2. Remove sunroof opening trim lace.
3. Disconnect the control switch and wire connector.
4. Remove headliner.

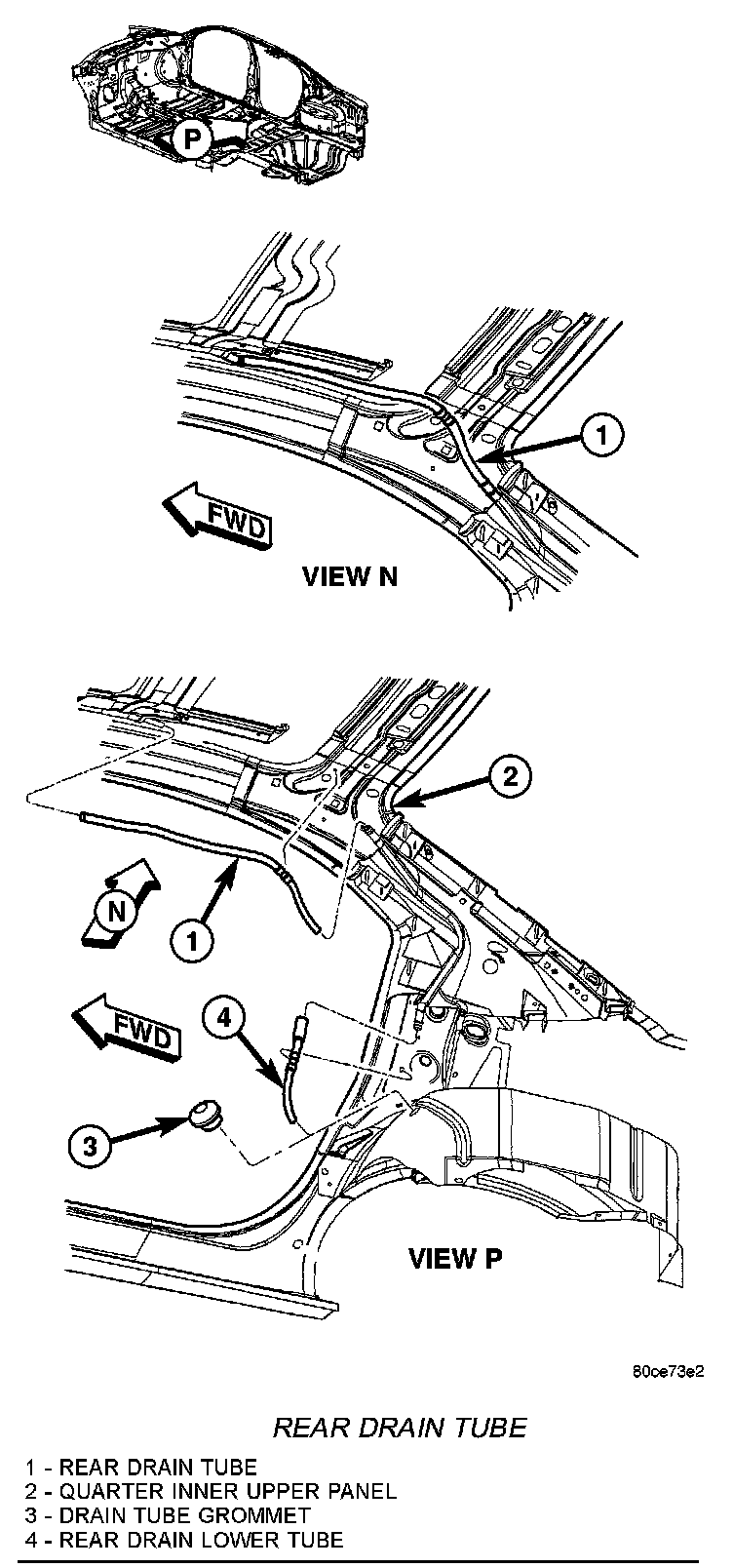

Rear Drain Tube:

5. Disconnect the drain hose from the sunroof housing.
6. Drain any liquid from hose connection, if necessary.
7. Attach new drain hose to old hose with tape that is to be replaced.
8. Work the old hose back and forth to loosen the sealer.
9. Pull the old hose out through the bottom and the new hose through.

INSTALLATION
1. Connect the drain hose to the sunroof housing and test drainage.
2. Set headliner into position.
3. Connect express module, drive motor, and control switch wire connectors.
4. Test sunroof operation, adjust as necessary.
5. Finish installing headliner.
6. Install sunroof opening trim lace.
7. Connect the control switch wire connector. Install control switch.
