Center Header Trim Panel

CENTER HEADER TRIM PANEL

REMOVAL

1. Remove both sun visor support centers.

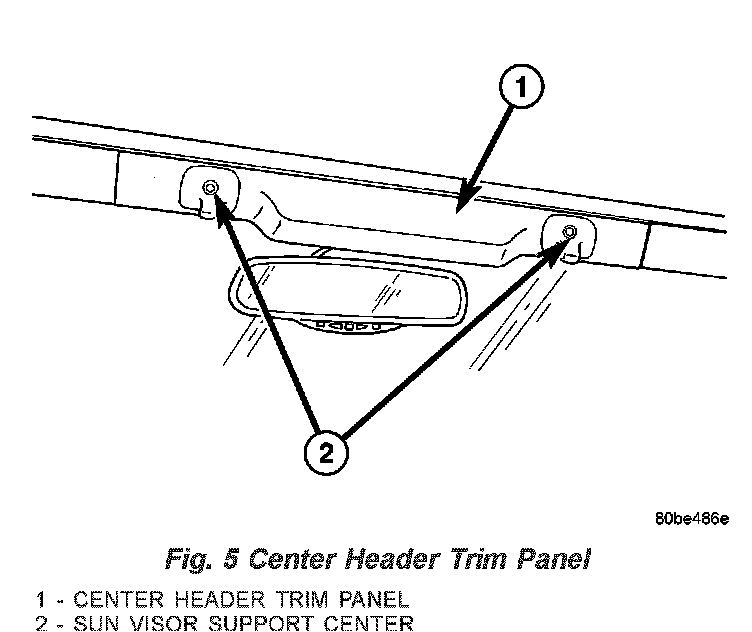

Fig. 5:

2. Pull trim rearward to disengage clips attaching header trim panel to header panel (Fig. 5).
3. Remove header trim panel from vehicle.

INSTALLATION

1. Position header trim panel on vehicle.
2. Align the two locating pins on back of header trim panel to holes in header panel.
3. Engage the two clips on header trim panel to slots in header panel.
4. Attach the two sun visor support centers.
