Console Lamp: Service and Repair

CONSOLE COURTESY LAMP-JR27 ONLY

REMOVAL
1. Disconnect and isolate the battery negative cable.

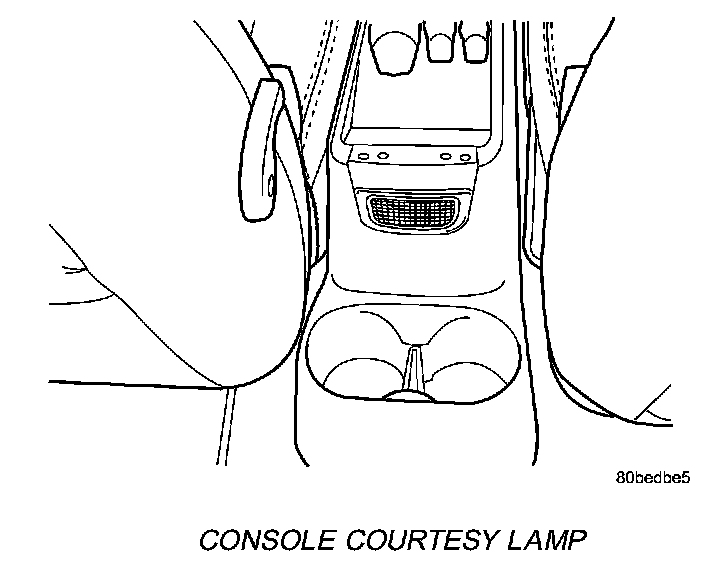

Console Courtesy Lamp:

2. Using a flat bladed tool, gently pry lamp from console.
3. Disconnect wire harness connector.
4. Remove bulb from lamp.

INSTALLATION
1. Install bulb to lamp.
2. Connect the wire harness connector.
3. Press lamp into the center console.
4. Connect the battery negative cable.
