PRND or Autostick Indicator Inaccurate or Inoperative

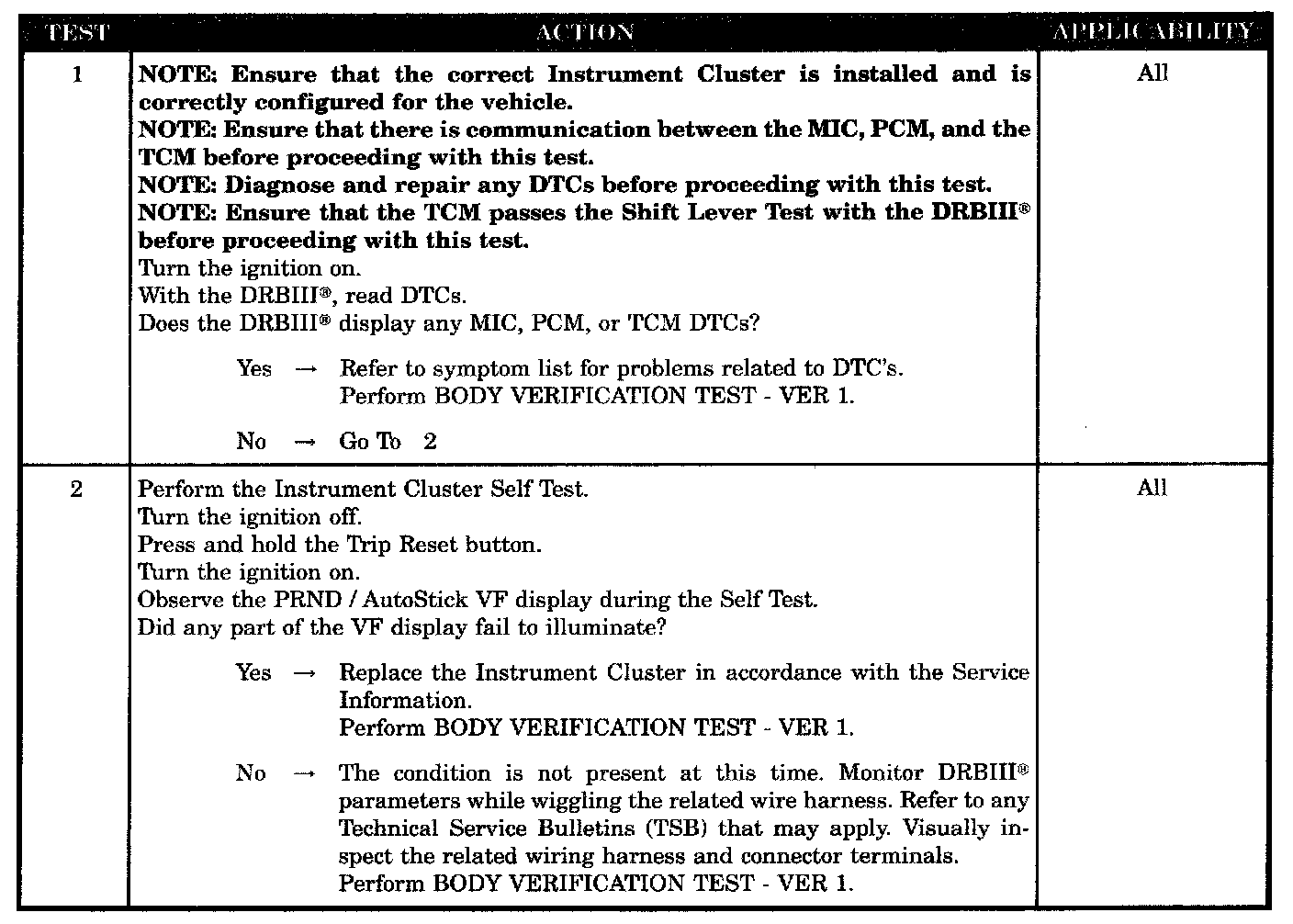

Test 1 - 2:






SYMPTOM
PRND OR AUTOSTICK INDICATOR INACCURATE OR INOPERATIVE

POSSIBLE CAUSES
- DTC present
- Intermittent condition
- Instrument cluster
