P1797

Symptom:
P1797 MANUAL SHIFT OVERHEAT

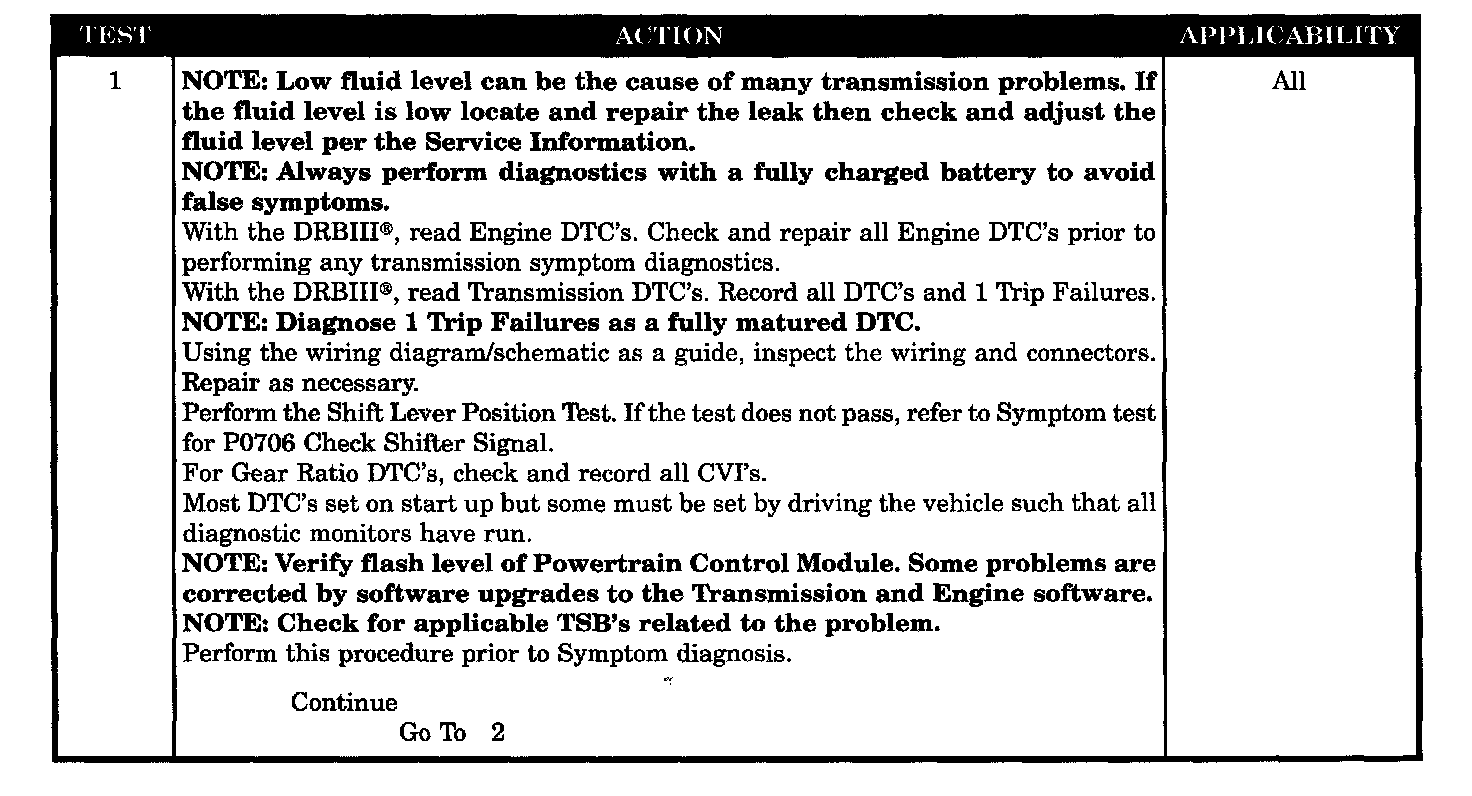

Test 1:

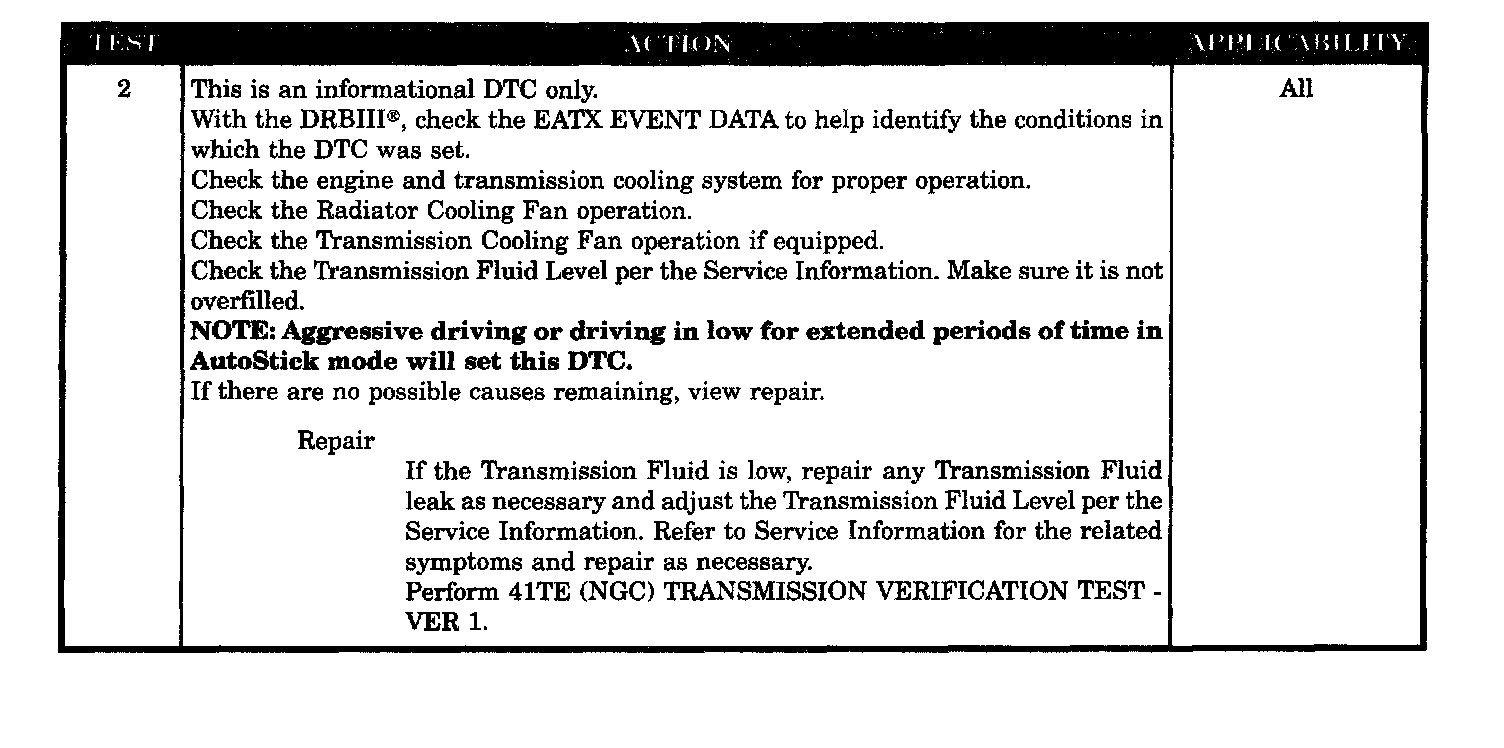

Test 2:

When Monitored:
Whenever the engine is running and transmission is in the AutoStick- mode.

Set Condition:
If the Engine Temperature exceeds 123°C or 255°F. or the Transmission Temperature exceeds 135°C or 275°F while in AutoStick- mode. Note: Aggressive driving or driving in low for extended periods of time in AutoStick- mode will set this DTC.

POSSIBLE CAUSES
- MANUAL SHIFT OVERHEAT
