P1776

Symptom:
P1776-SOLENOID SWITCH VALVE LATCHED IN LO POSITION

Test 1:

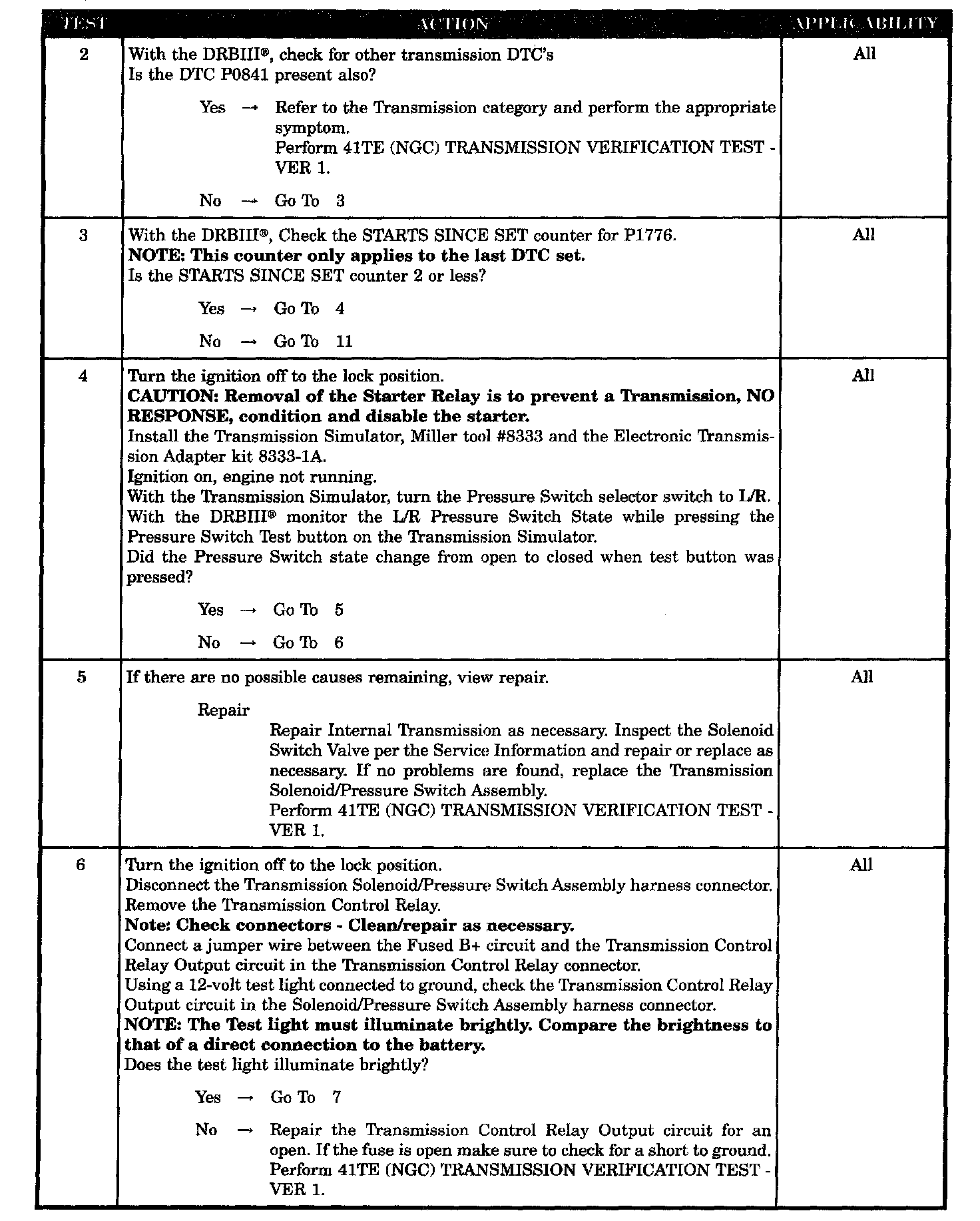

Test 2-6:

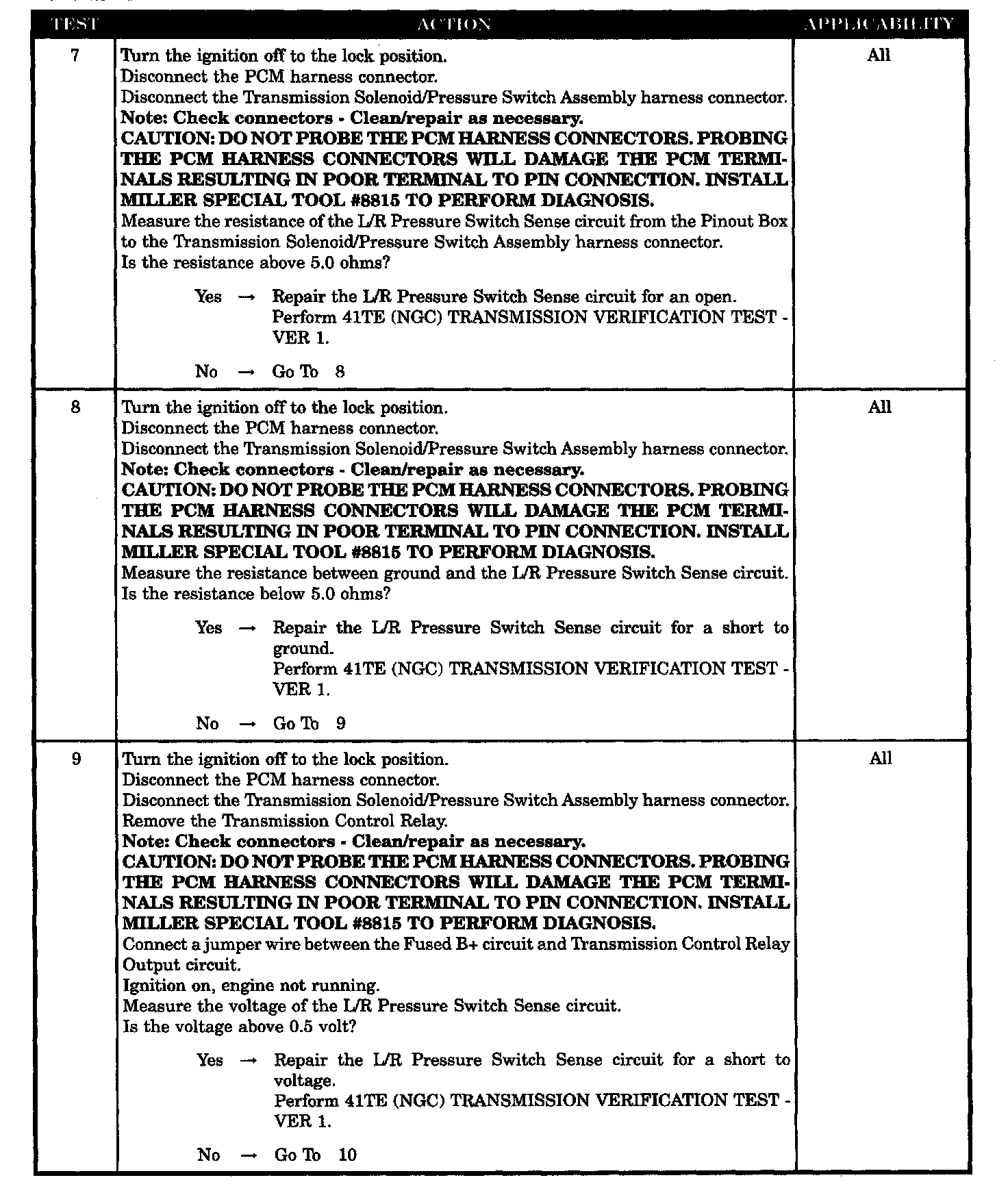

Test 7-9:

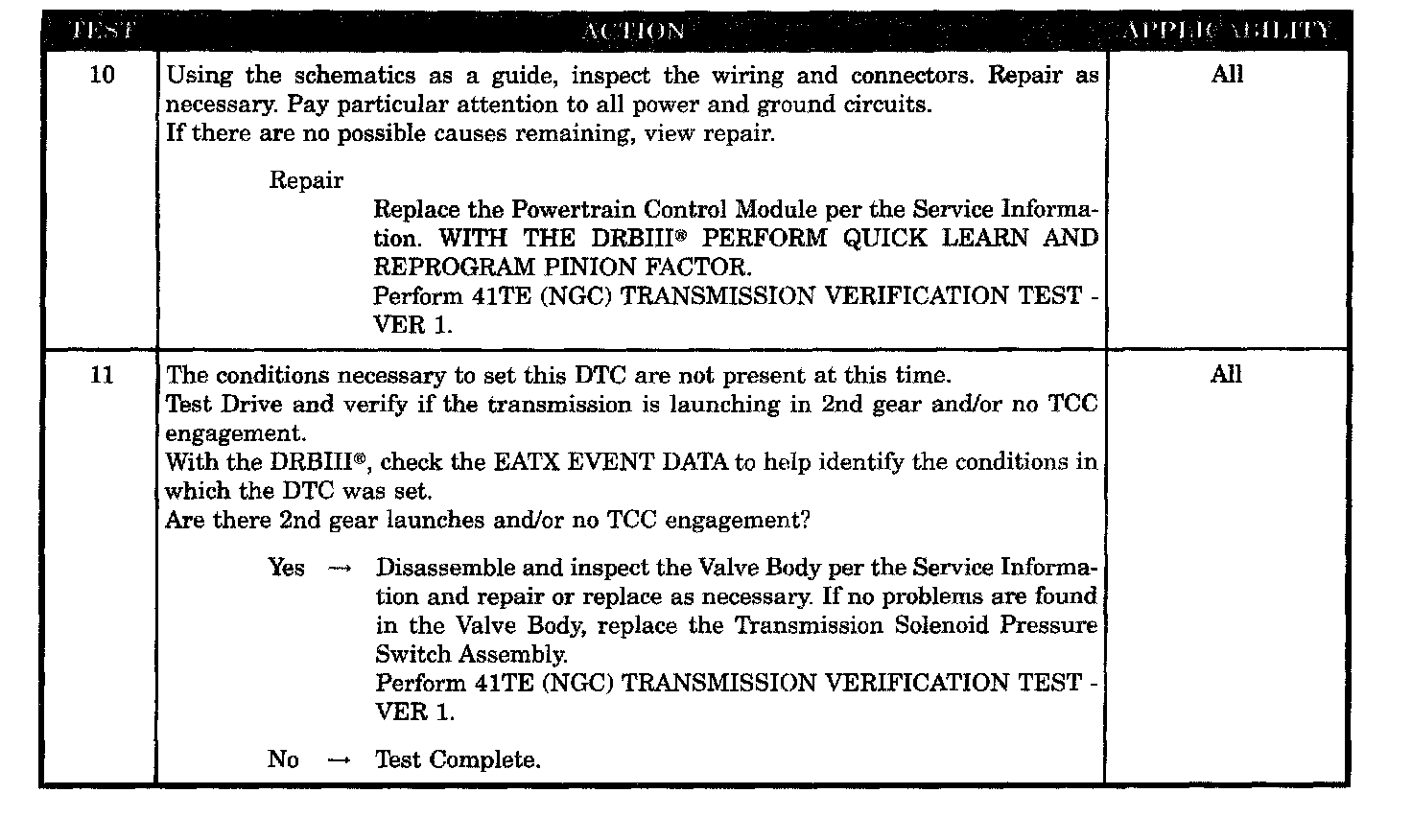

Test 10-11:

When Monitored:
Continuously when doing partial or full EMCC (PEMCC or FEMCC).

Set Condition:
If the PCM senses the L/R Pressure Switch closing while performing PEMCC or FEMCC. This DTC will be set after two unsuccessful attempts to perform PEMCC or FEMCC.

POSSIBLE CAUSES
- RELATED DTC P0841 PRESENT
- TRANSMISSION CONTROL RELAY OUTPUT CIRCUIT OPEN
- L/R PRESSURE SWITCH SENSE CIRCUIT OPEN
- L/R PRESSURE SWITCH SENSE CIRCUIT SHORT TO GROUND
- L/R PRESSURE SWITCH SENSE CIRCUIT SHORT TO VOLTAGE
- INTERNAL TRANSMISSION
- POWERTRAIN CONTROL MODULE
- INTERMITTENT WIRING AND CONNECTORS
