P0734

Symptom:
P0734-GEAR RATIO ERROR IN 4TH

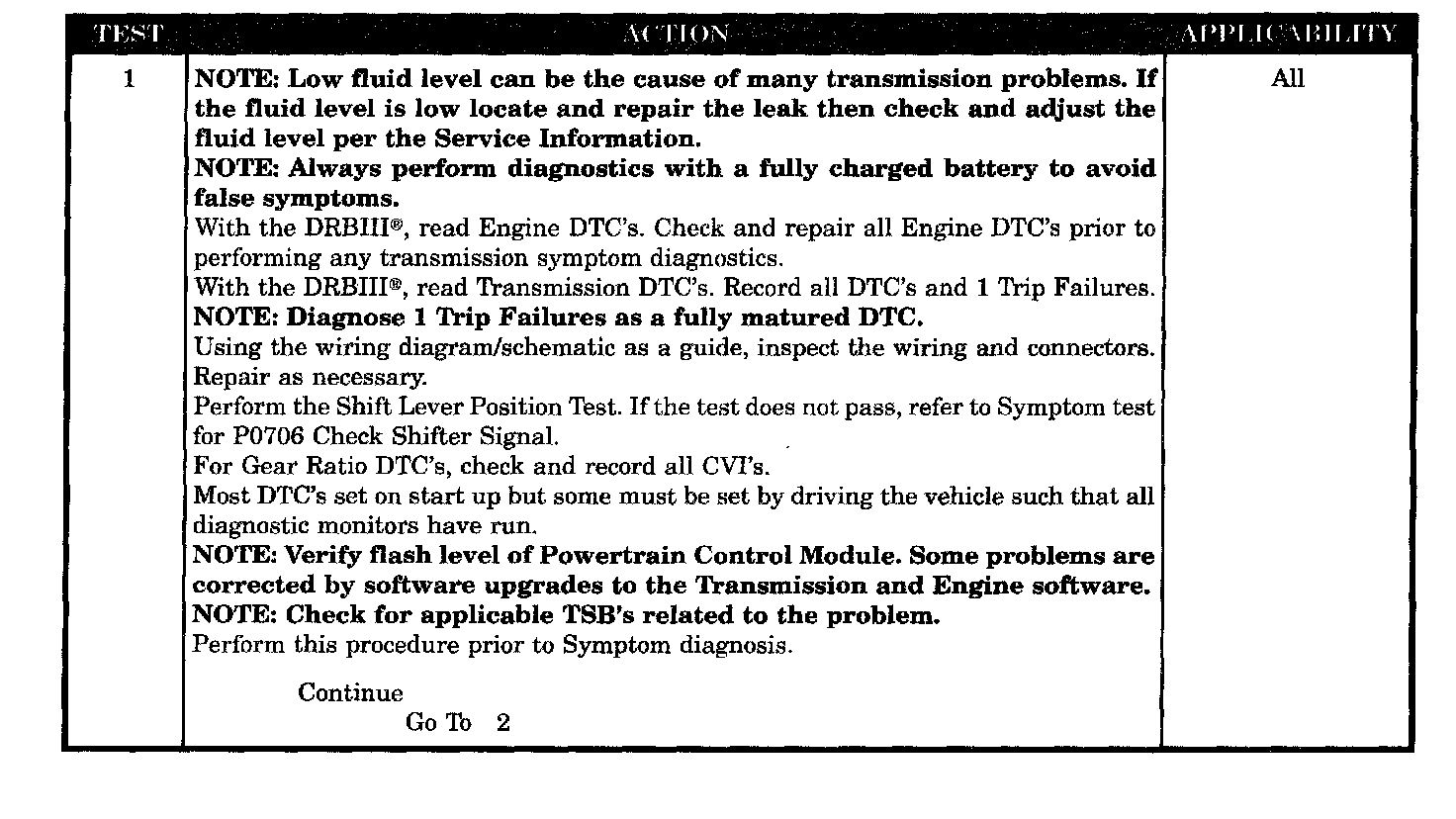

Test 1:

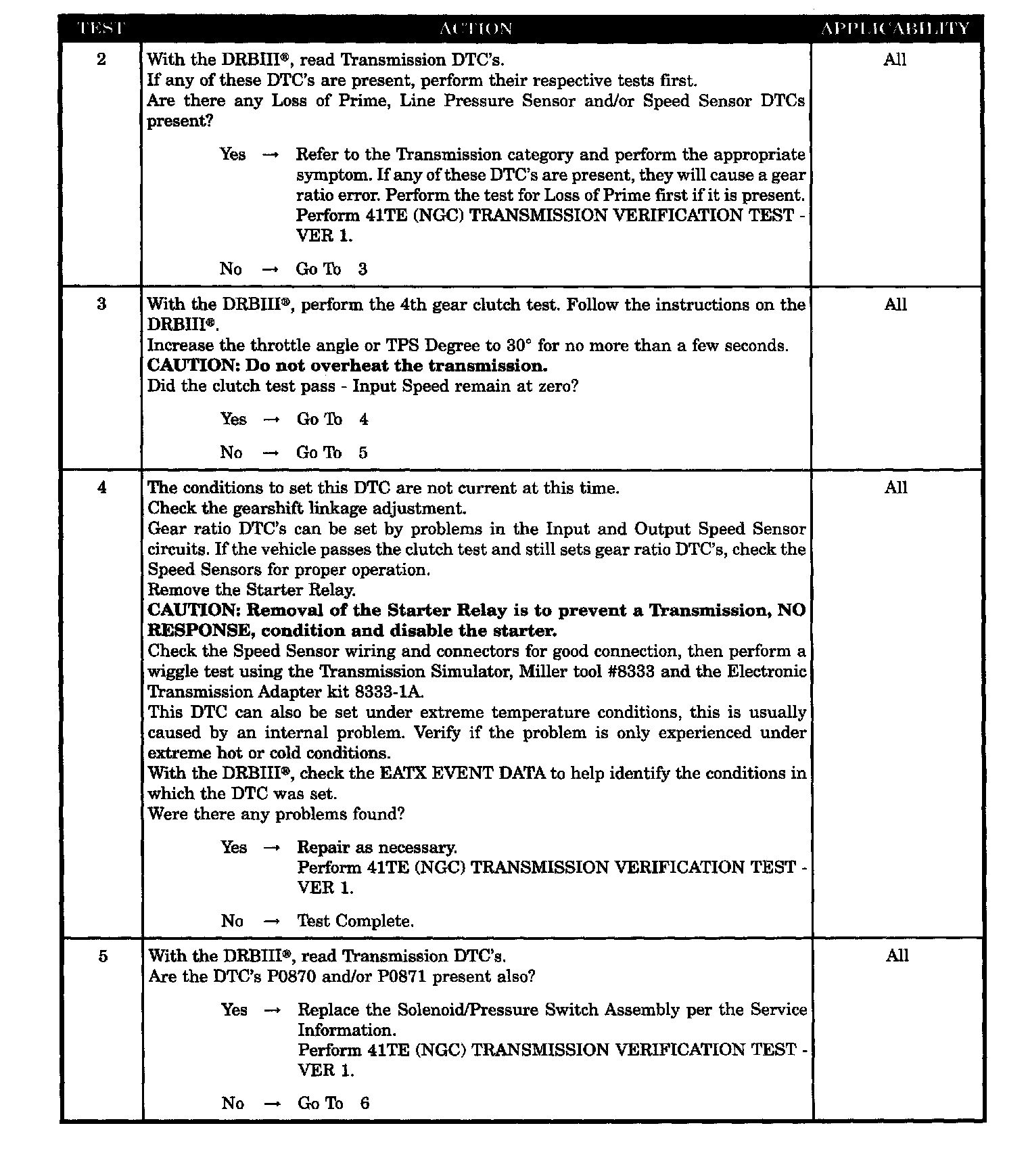

Test 2-5:

Test 6:

When Monitored:
The Transmission gear ratio is monitored continuously while the Transmission is in gear.

Set Condition:
If the ratio of the Input RPM to the Output RPM does not match the current gear ratio.

POSSIBLE CAUSES
- RELATED DTC'S PRESENT
- TRANSMISSION SOLENOID/PRESSURE SWITCH ASSEMBLY
- INTERNAL TRANSMISSION
- INTERMITTENT GEAR RATIO ERRORS
