P0712

Symptom:
P0712-TRANSMISSION TEMPERATURE SENSOR LOW

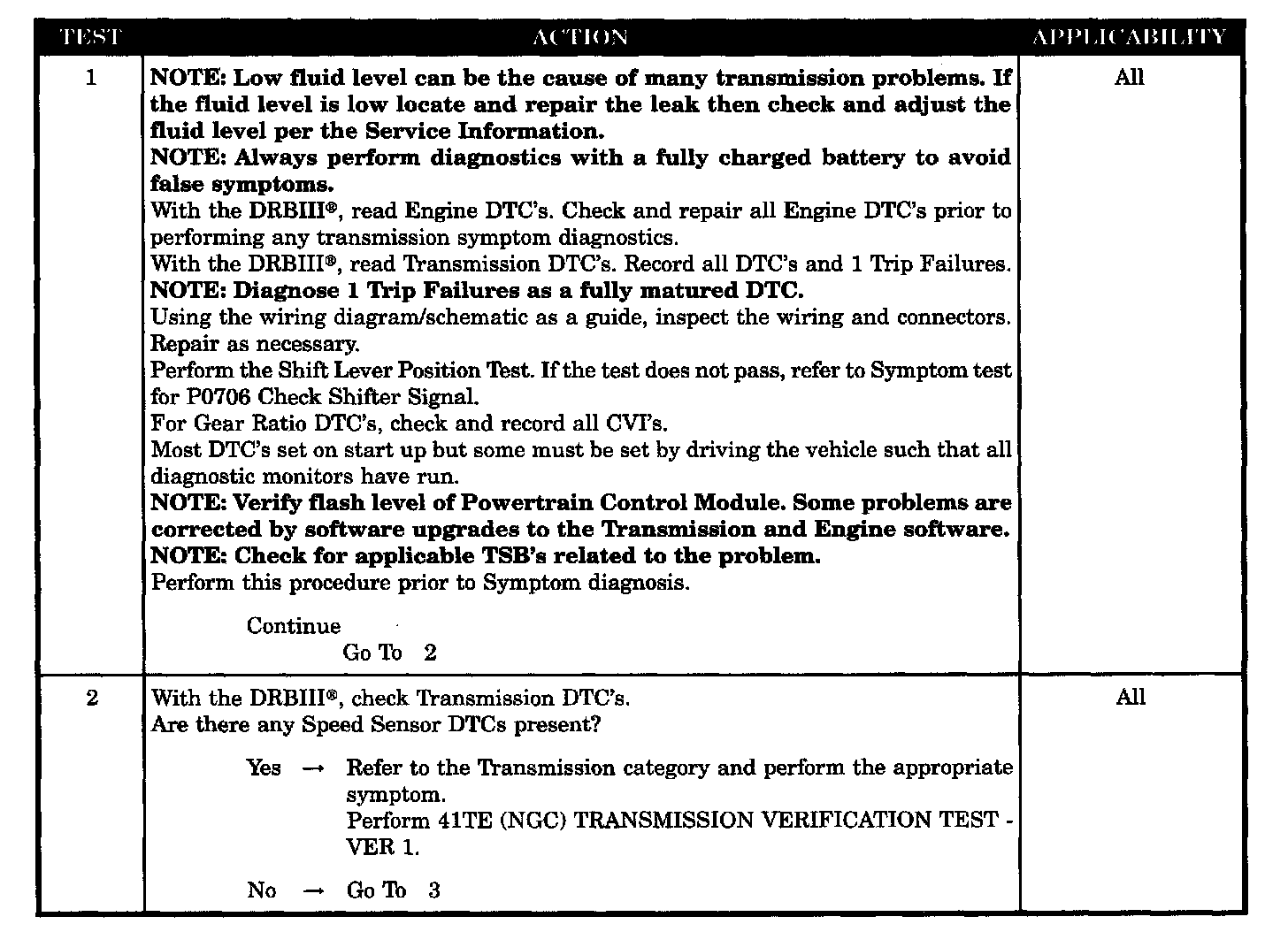

Test 1-2:

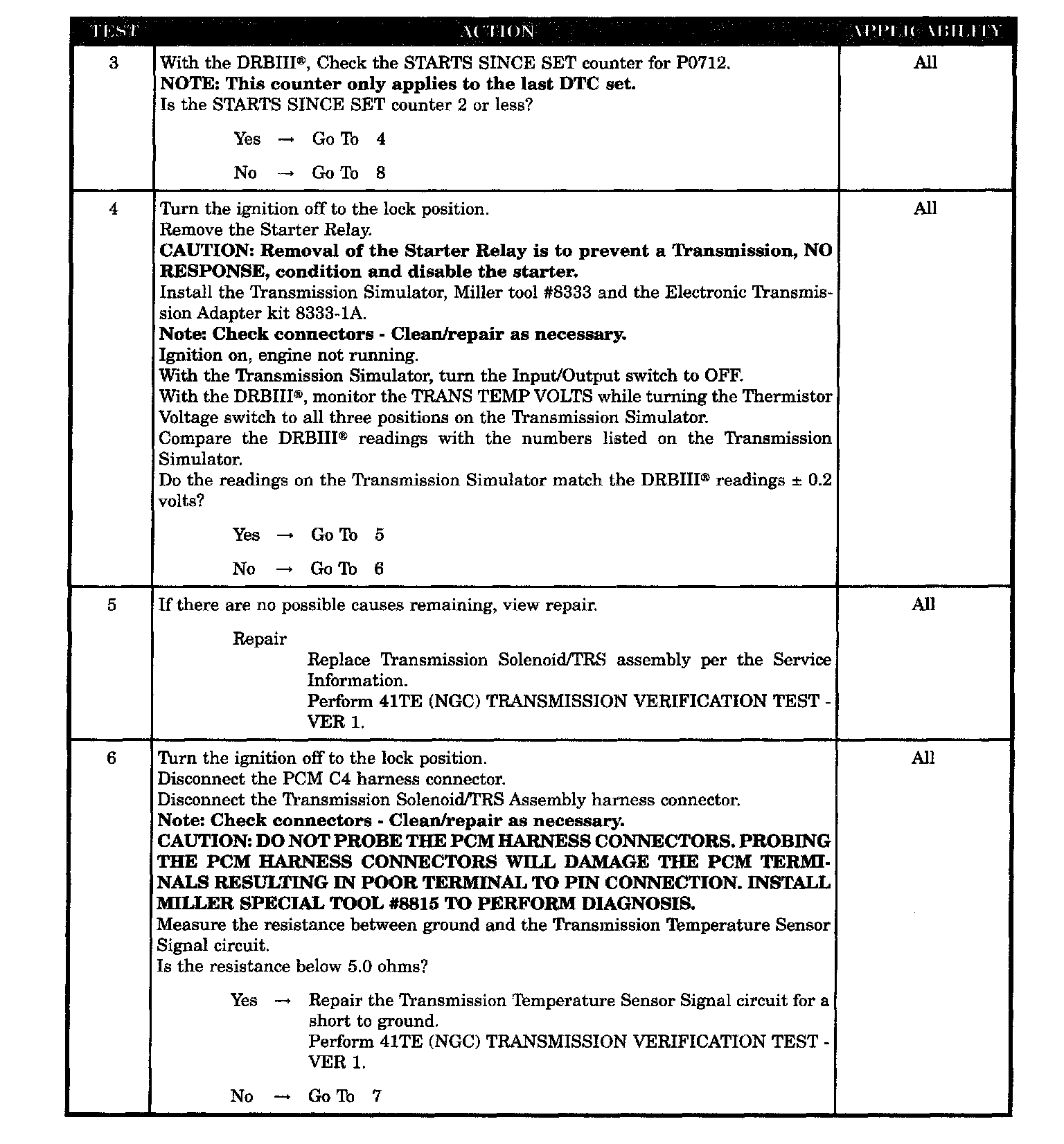

Test 3-6:

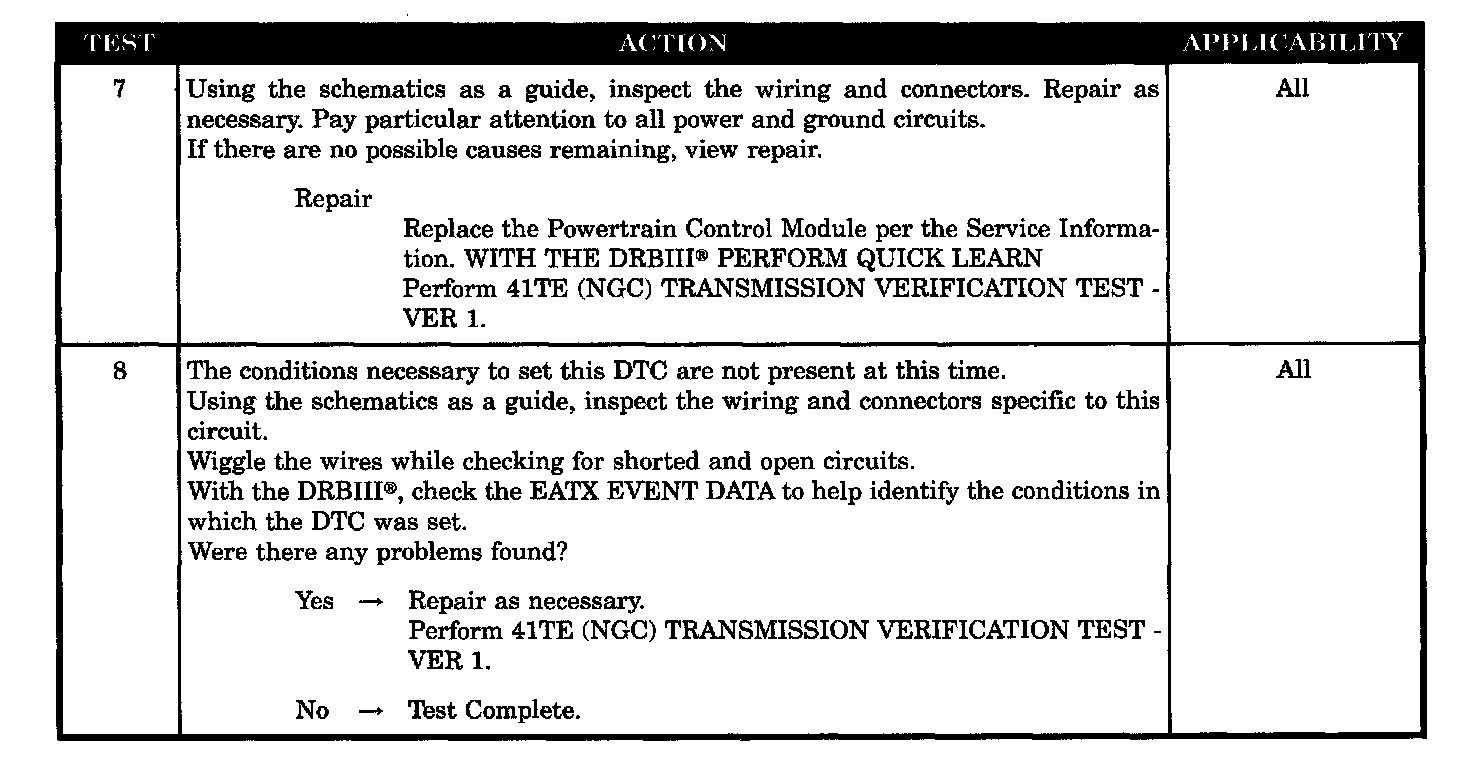

Test 7-8:

When Monitored:
Continuously with the ignition on and engine running.

Set Condition:
The DTC will set when the monitored Temperature Sensor voltage drops below 0.078 volts for the period of 0.45 seconds.

POSSIBLE CAUSES
- RELATED DTC'S PRESENT
- TRANSMISSION TEMPERATURE SENSOR SIGNAL CIRCUIT SHORT TO GROUND
- TRANSMISSION TEMPERATURE SENSOR
- POWERTRAIN CONTROL MODULE
- INTERMITTENT WIRING AND CONNECTORS
