P0711

Symptom:
P0711-TRANSMISSION TEMPERATURE SENSOR PERFORMANCE

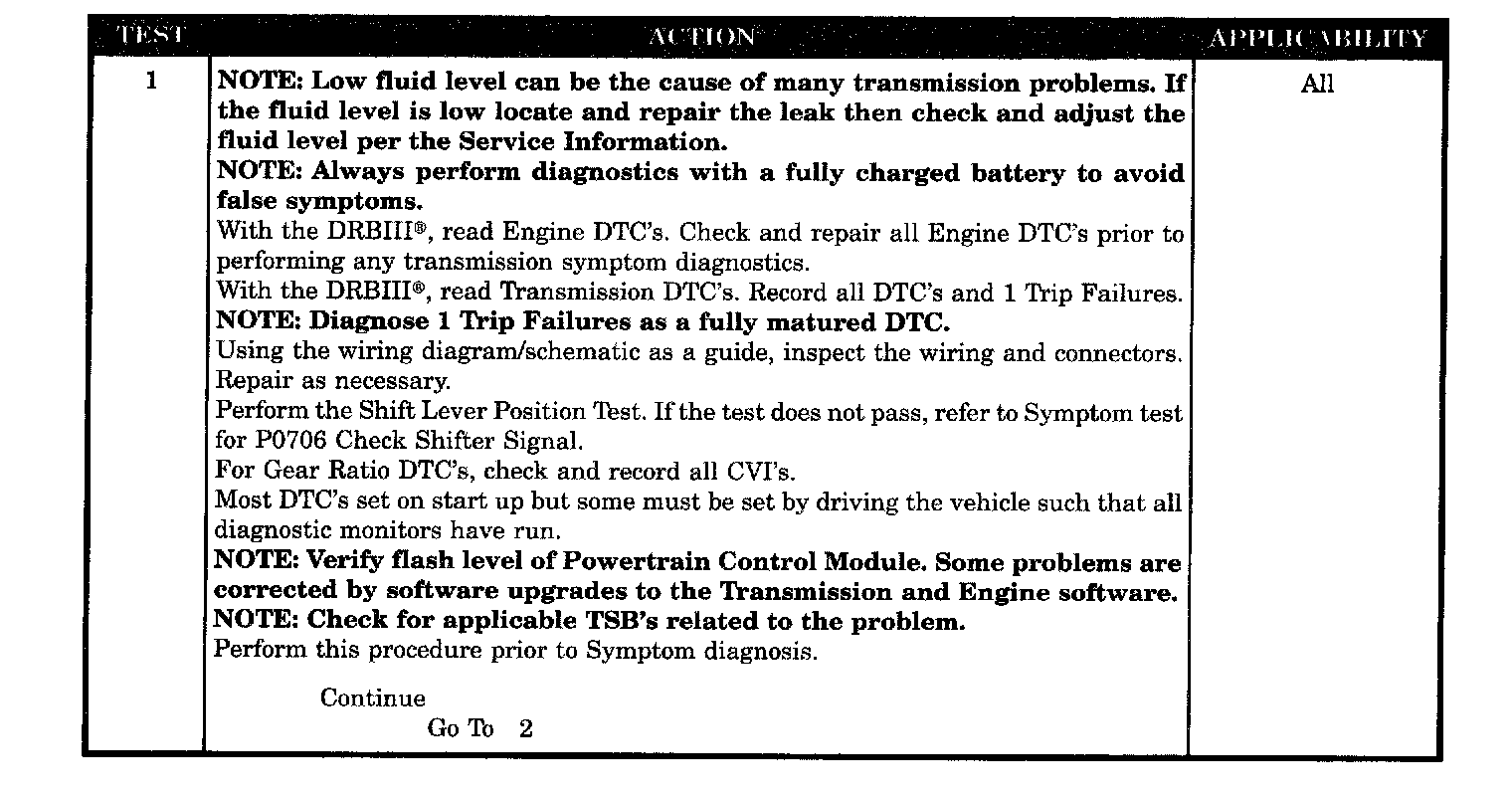

Test 1:

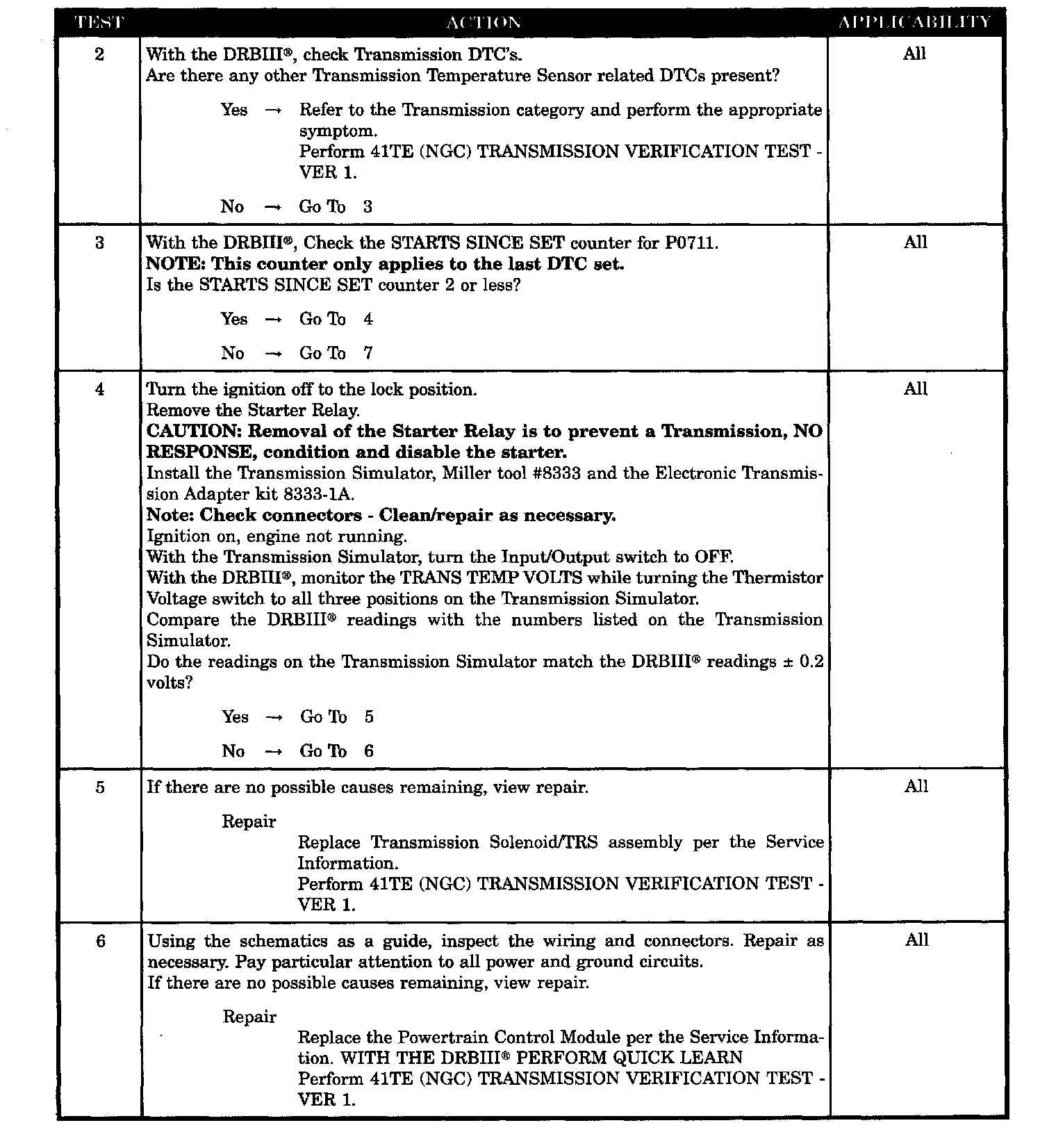

Test 2-6:

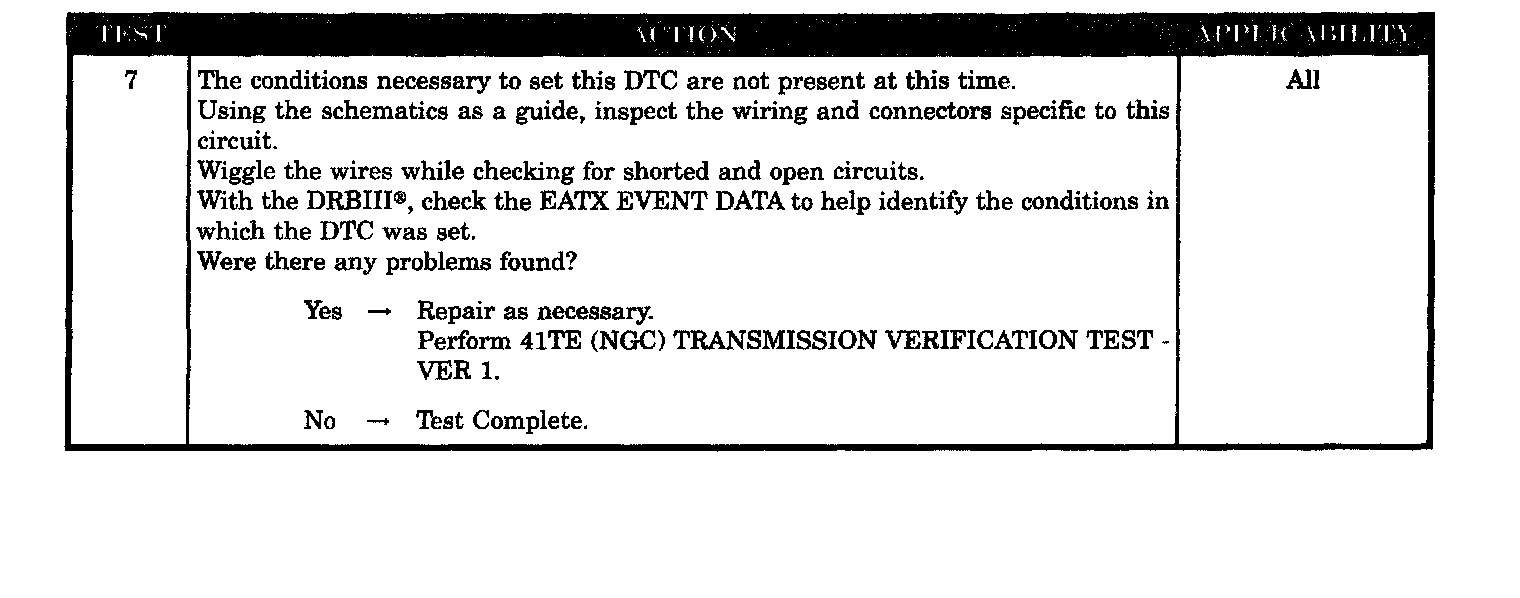

Test 7:

When Monitored:
Continuously with the ignition on and engine running.

Set Condition:
This DTC will set when the desired transmission temperature does not reach a normal operating temperature within a given time same. Time is variable due to ambient temperature. Approximate times are starting temperature to warm up time: (-40°F /-40°C - 35 min) (-20°F/ -28°C - 26 min) (20°F/ -6.6°C - 20 min) (60°F/16.6 °C - 10 min)

POSSIBLE CAUSES
- RELATED DTC'S PRESENT
- TRANSMISSION TEMPERATURE SENSOR
- POWERTRAIN CONTROL MODULE
- INTERMITTENT WIRING AND CONNECTORS
