P0572

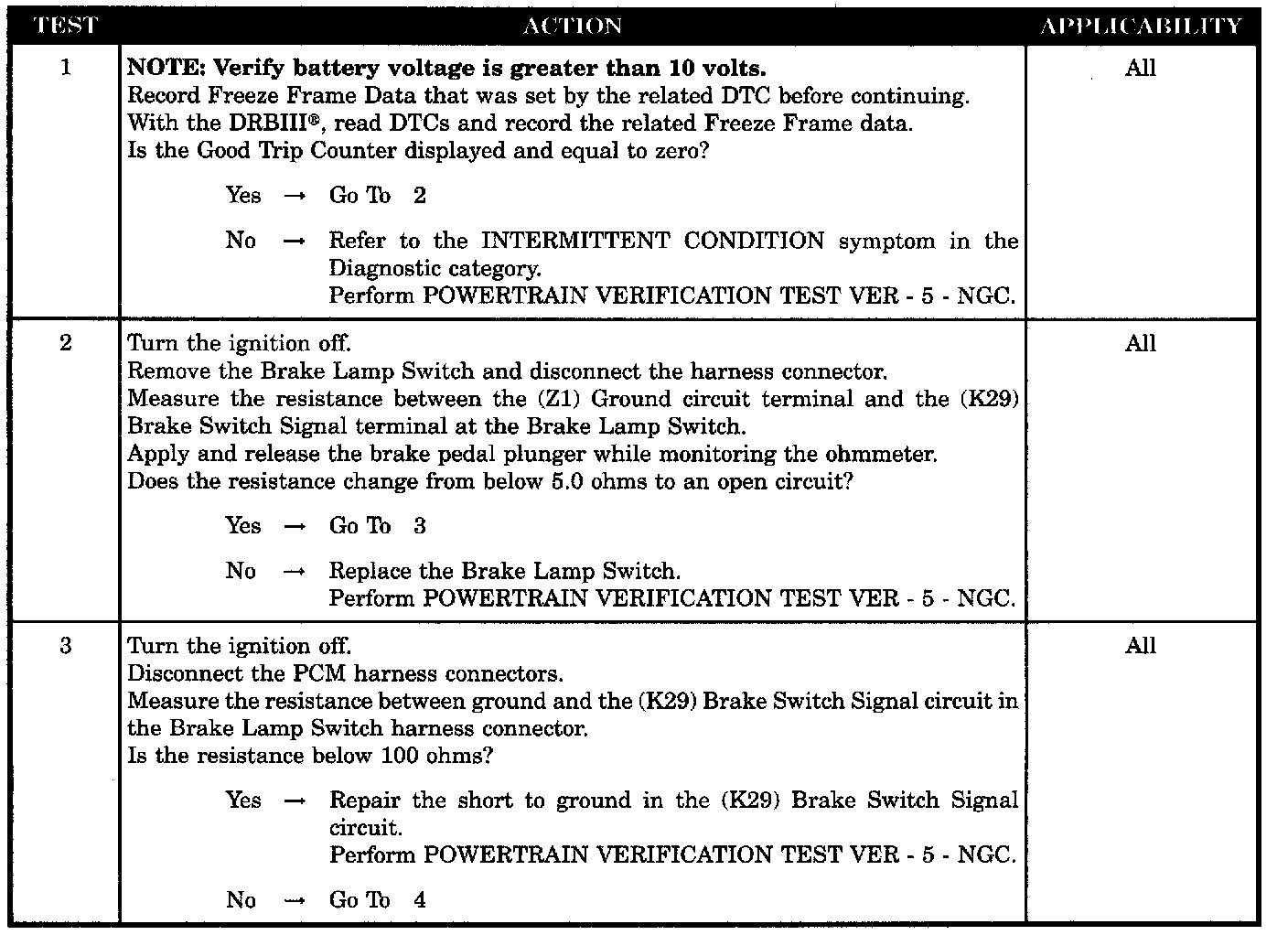

Test 1 - 3:

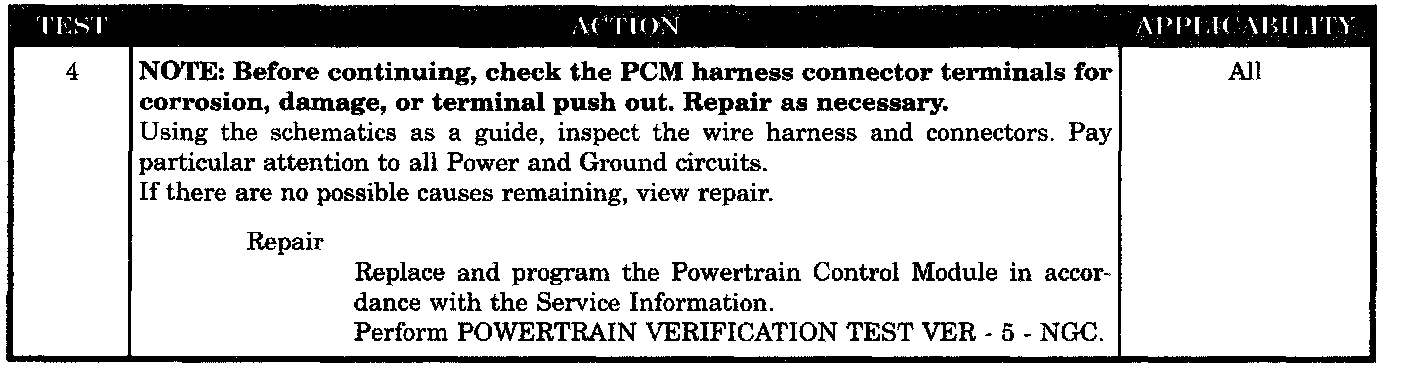

Test 4:

SYMPTOM
P0572-BRAKE SWITCH #1 CIRCUIT LOW

WHEN MONITORED
Ignition on

SET CONDITION
When the PCM recognizes Brake Switch is mechanically stuck in the low/on position. One Trip Fault.

POSSIBLE CAUSES
- Good trip equal to zero
- Brake lamp switch operation
- (K29) brake switch signal circuit shorted to ground
- PCM
