P0563

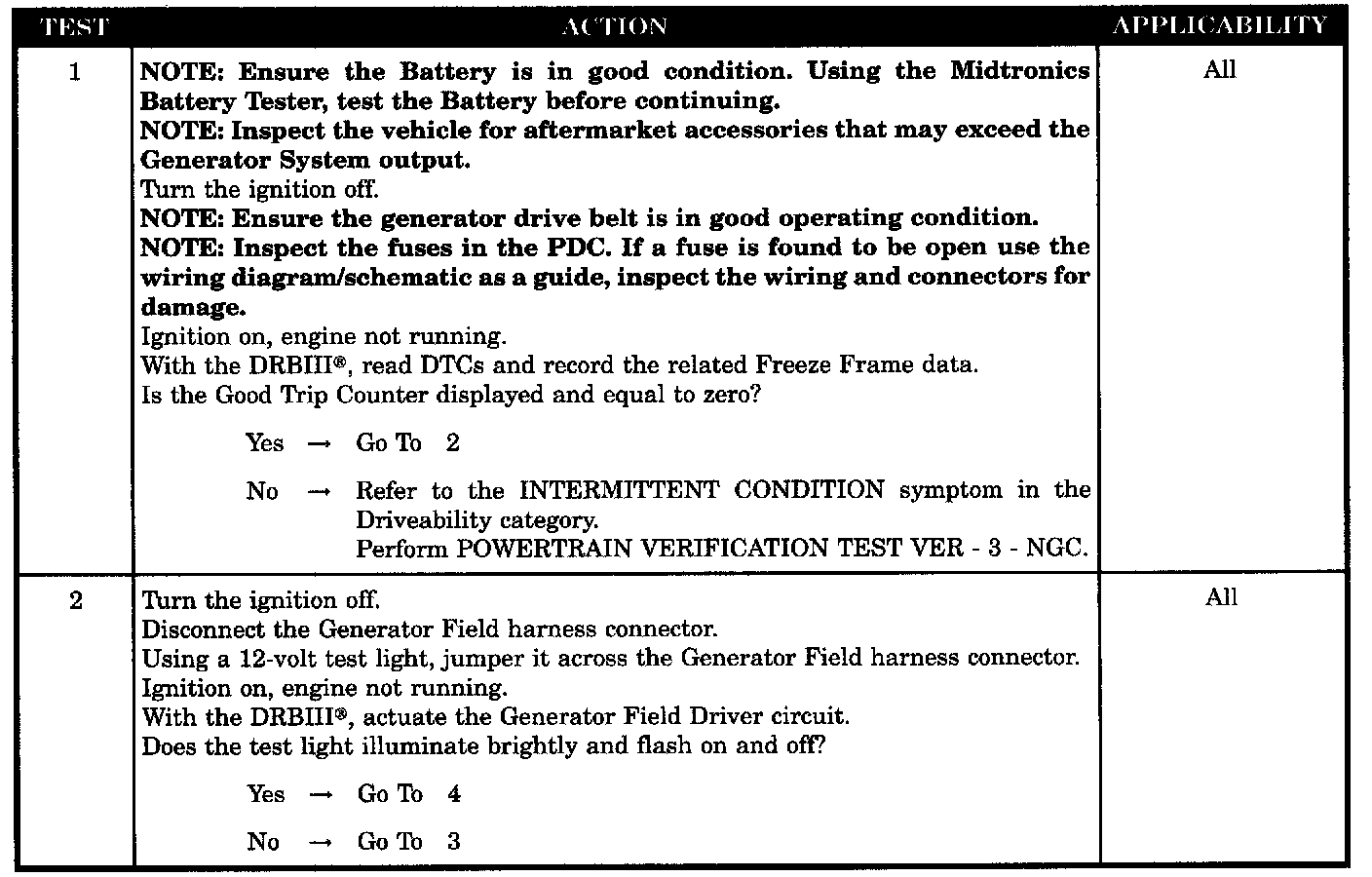

Test 1 - 2:

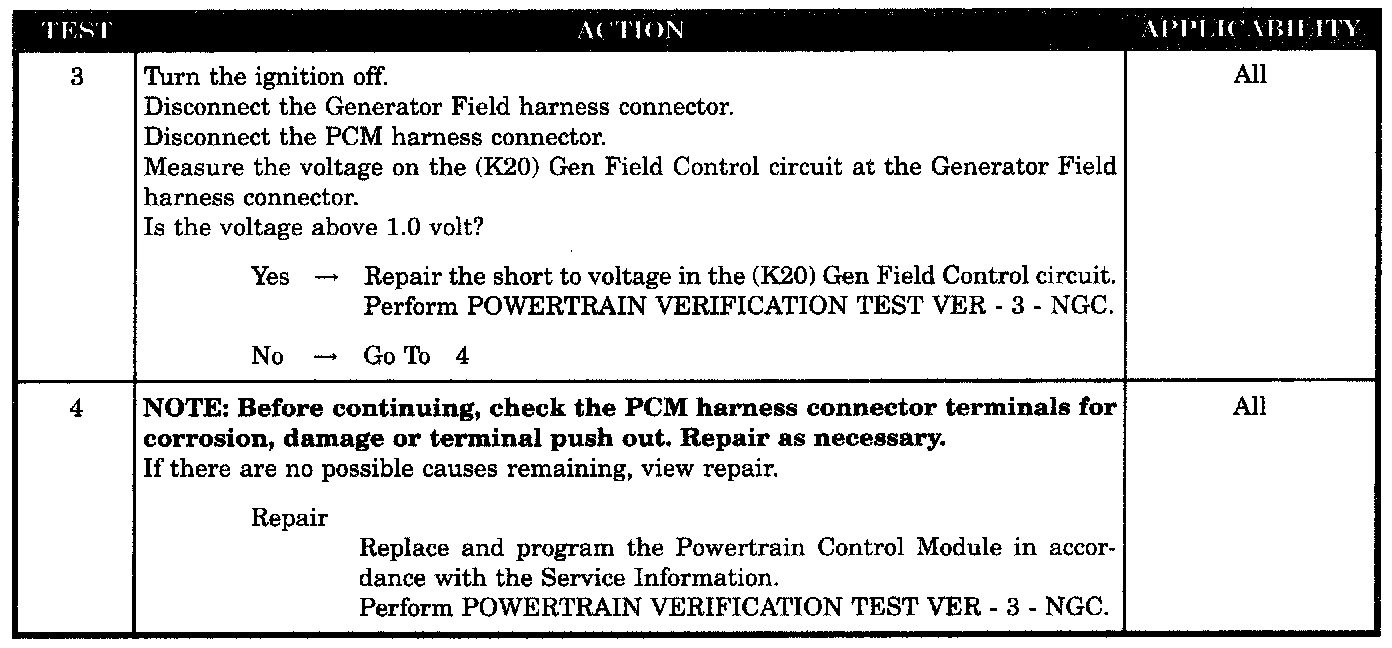

Test 3 - 4:

SYMPTOM
P0563-BATTERY VOLTAGE HIGH

WHEN MONITORED
With the ignition on. Engine RPM greater than 380 RPM.

SET CONDITION
Battery voltage is 1 volt greater than desired system voltage. One Trip Fault

POSSIBLE CAUSES
- Good trip equal to zero
- Generator operation
- (K20) GEN field control circuit shorted to battery voltage
- PCM
