P0513

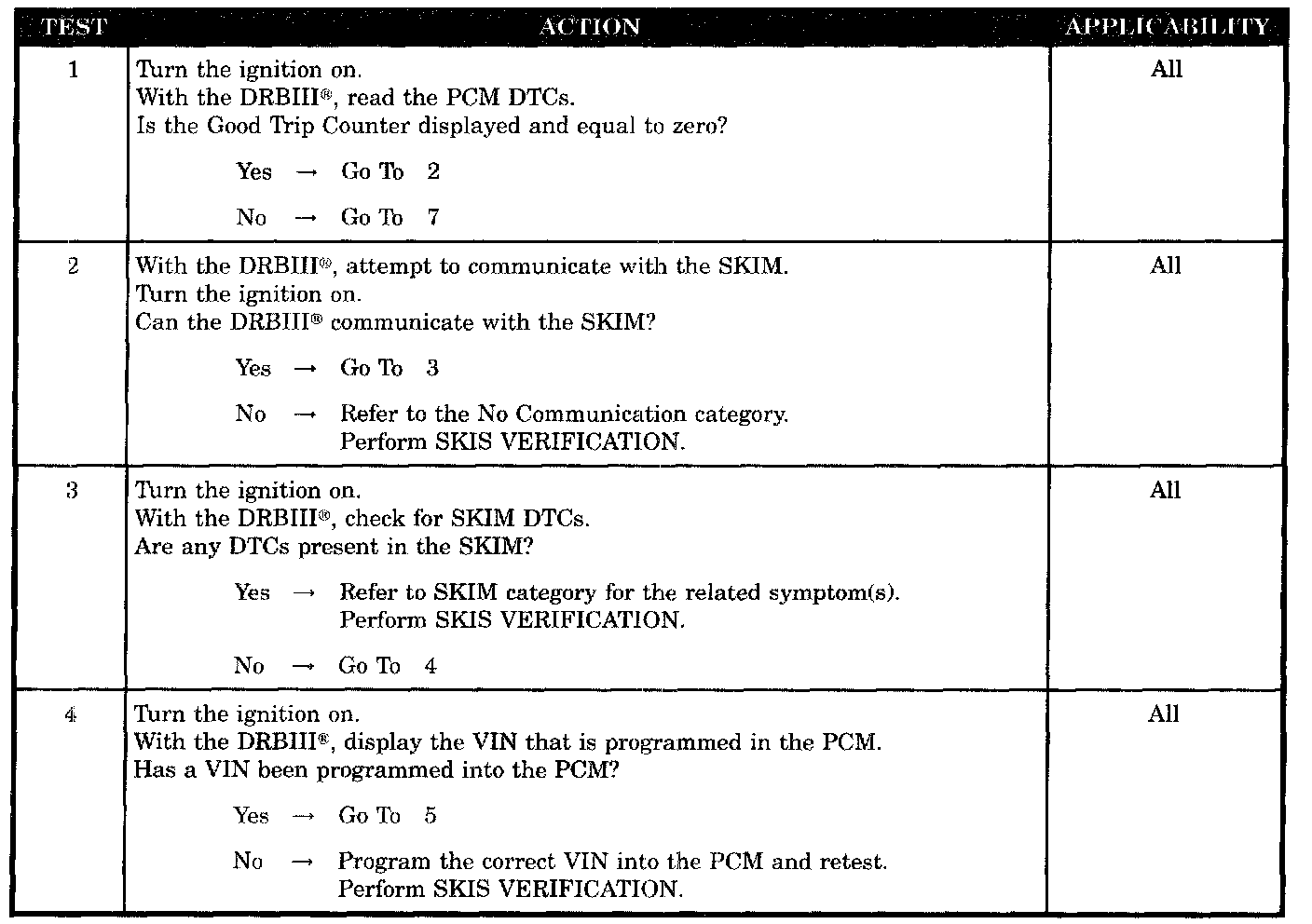

Test 1 - 4:

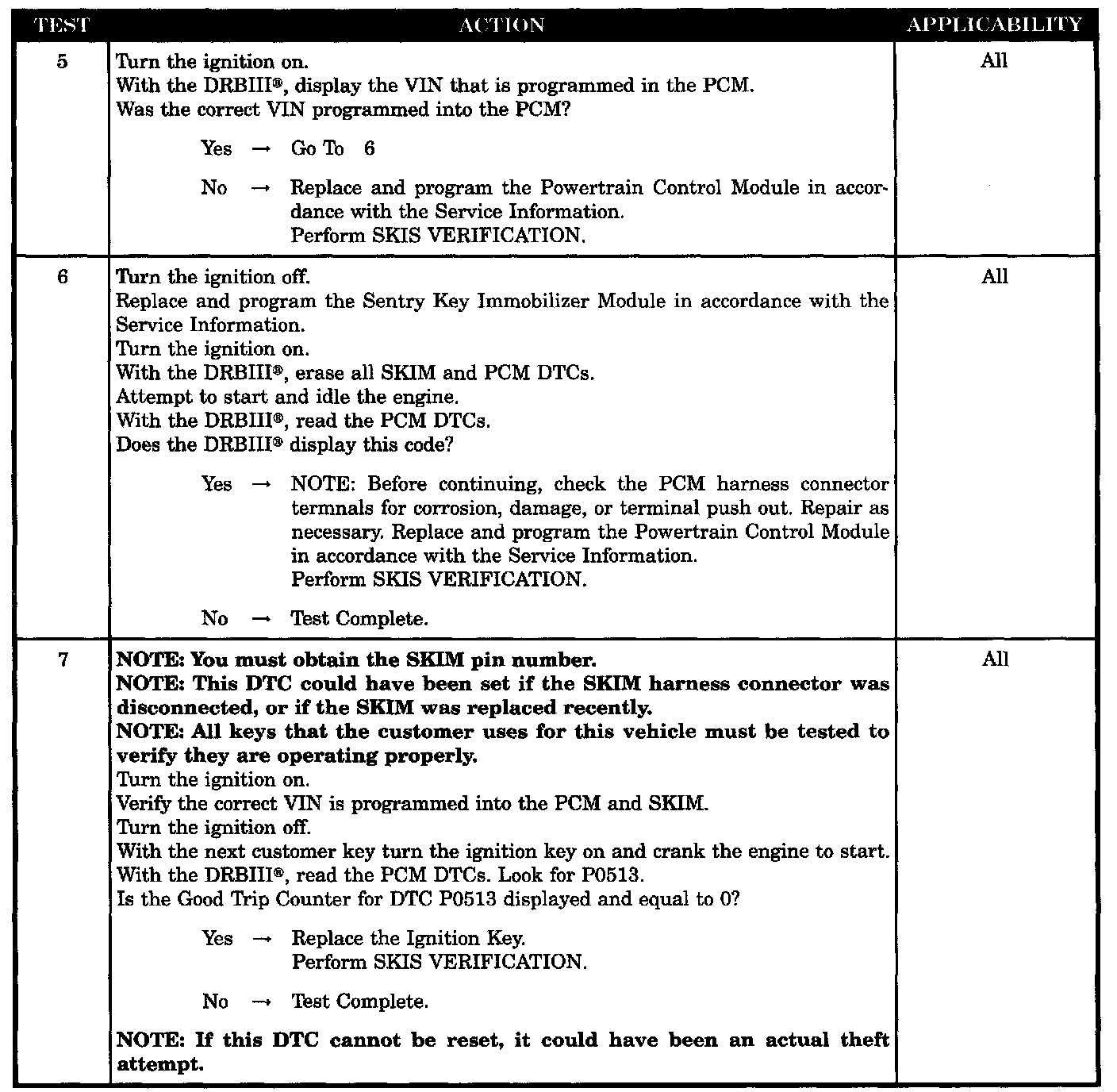

Test 5 - 7:

SYMPTOM
P0513-INVALID SKIM KEY

WHEN MONITORED
Ignition on.

SET CONDITION
The PCM detects an invalid SKIM key.

POSSIBLE CAUSES
- Incorrect VIN in PCM
- Invalid SKIM key not present
- No communication with SKIM
- No VIN programmed in the PCM
- PCM
- Skim trouble codes set
