P0124

Symptom:
P0124 THROTTLE POSITION SENSOR/APPS INTERMITTENT

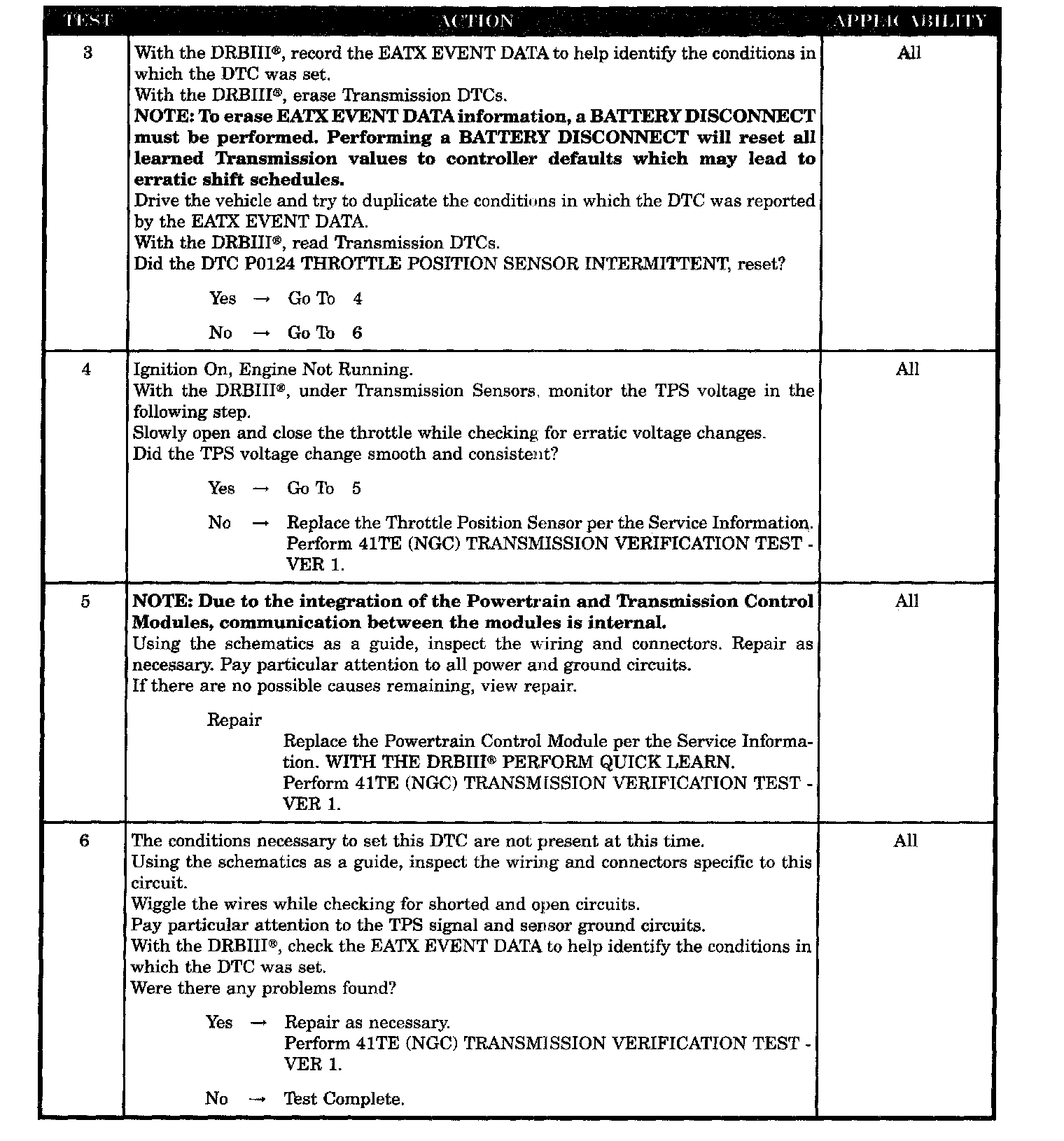

Test 1-2:

Test 3-6:

When Monitored:
Continuously with the ignition on and engine running.

Set Condition:
This DTC will set if the monitored TPS throttle angle between the angles of 6° and 120° and the degree change is greater than 5° within a period of less than 7.0 ms.

POSSIBLE CAUSES
- RELATED TPS ENGINE DTC'S PRESENT
- THROTTLE POSITION SENSOR
- POWERTRAIN CONTROL MODULE
- INTERMITTENT WIRING AND CONNECTORS
