Transmission Code

Symptom:
P0122-THROTTLE POSITION SENSOR/APPS LOW

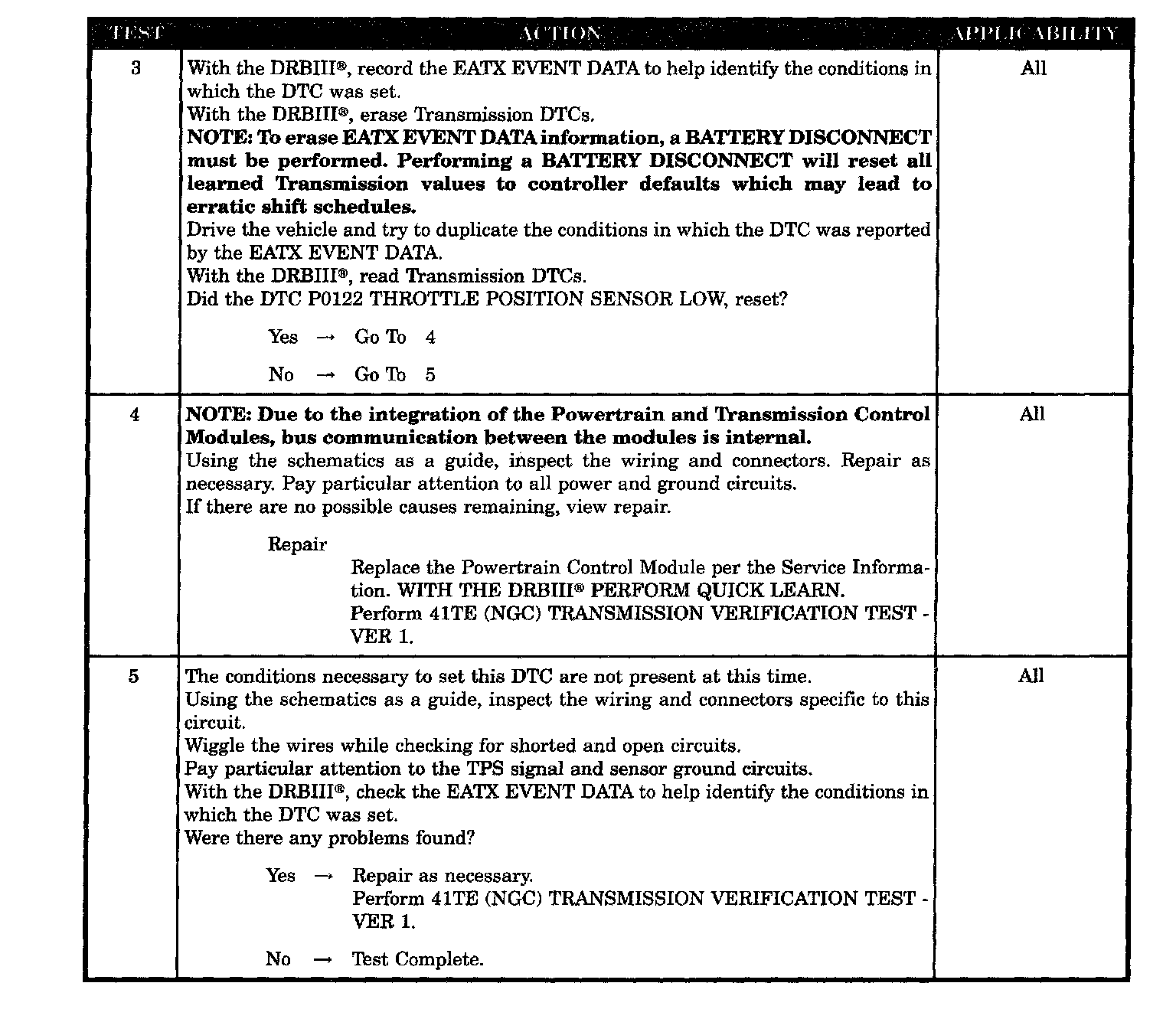

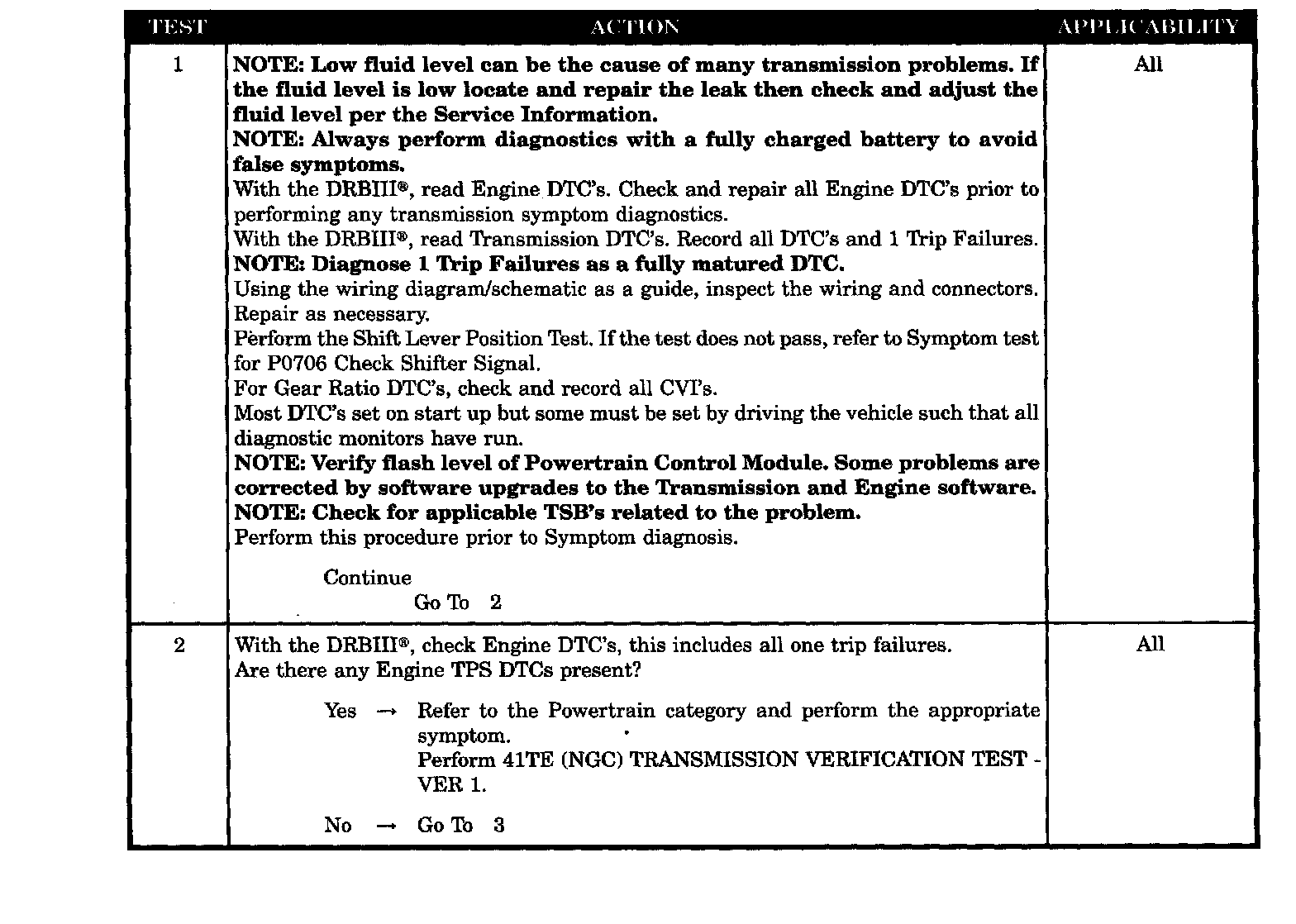

Test 1-2:

Test 3-5:

When Monitored:
Continuously with the ignition on and engine running.

Set Condition:
This DTC will set if the monitored TPS voltage drops below .078 volts for the period of 0.48 seconds.POSSIBLE CAUSES

POSSIBLE CAUSES
- RELATED TPS ENGINE DTC'S PRESENT
- POWERTRAIN CONTROL MODULE
- INTERMITTENT WIRING AND CONNECTORS
