Passenger Seat Belt Tensioner Shorted to Battery

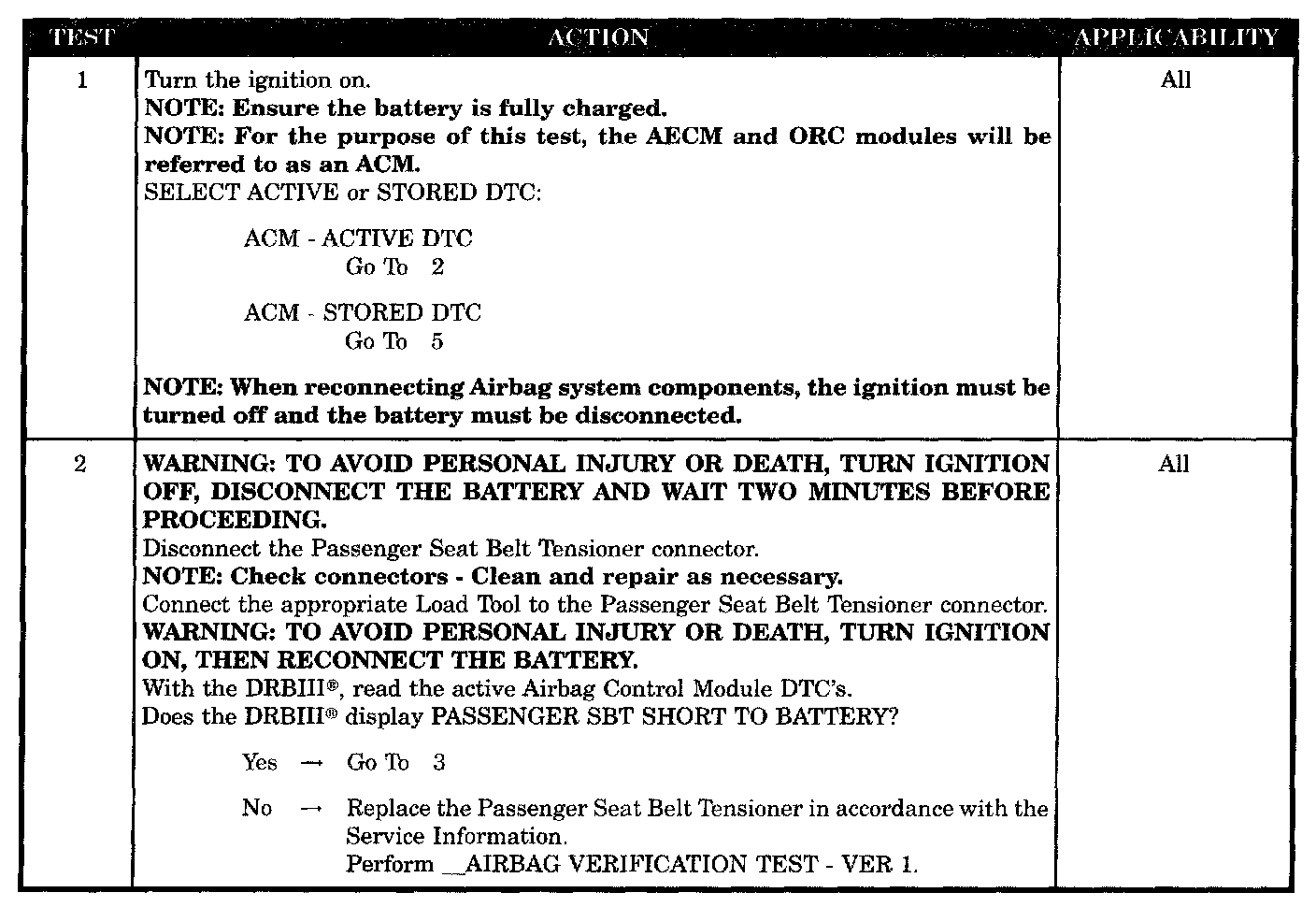

Test 1 - 2:

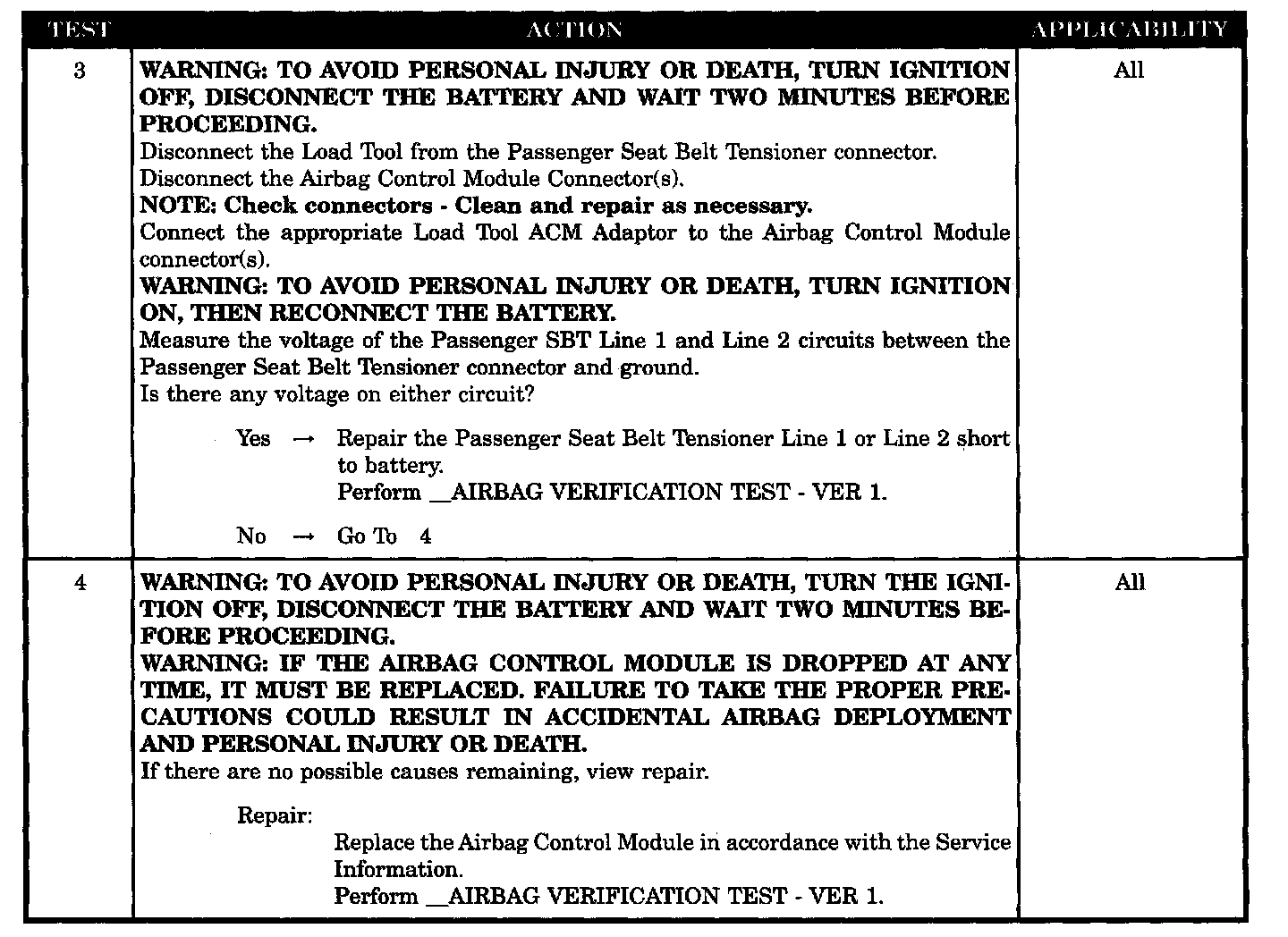

Test 3 - 4:

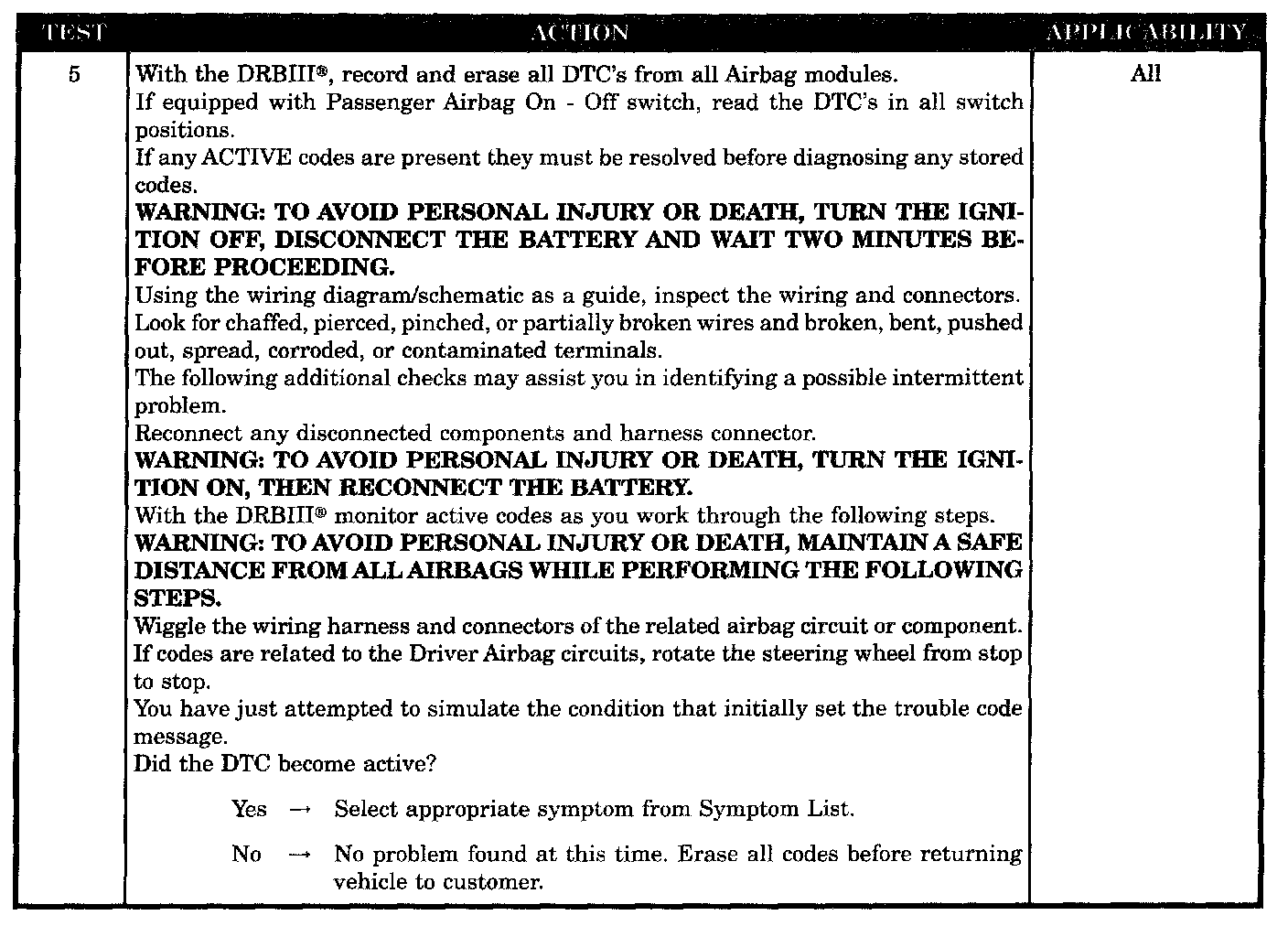

Test 5:

SYMPTOM
PASSENGER SEAT BELT TENSIONER SHORT TO BATTERY

WHEN MONITORED
When the ignition is on, the ACM monitors the voltage of the Passenger Seat Belt Tensioner circuits.

SET CONDITION
When the ACM detects voltage on the Passenger Seat Belt Tensioner circuits.

POSSIBLE CAUSES
- Passenger seat belt tensioner short to battery
- Passenger seat belt tensioner line 1 or line 2 short to battery
- ACM, passenger sbt short to battery
- Stored code or intermittent condition
- Active code present
