Passenger Curtain Squib Circuit Shorted

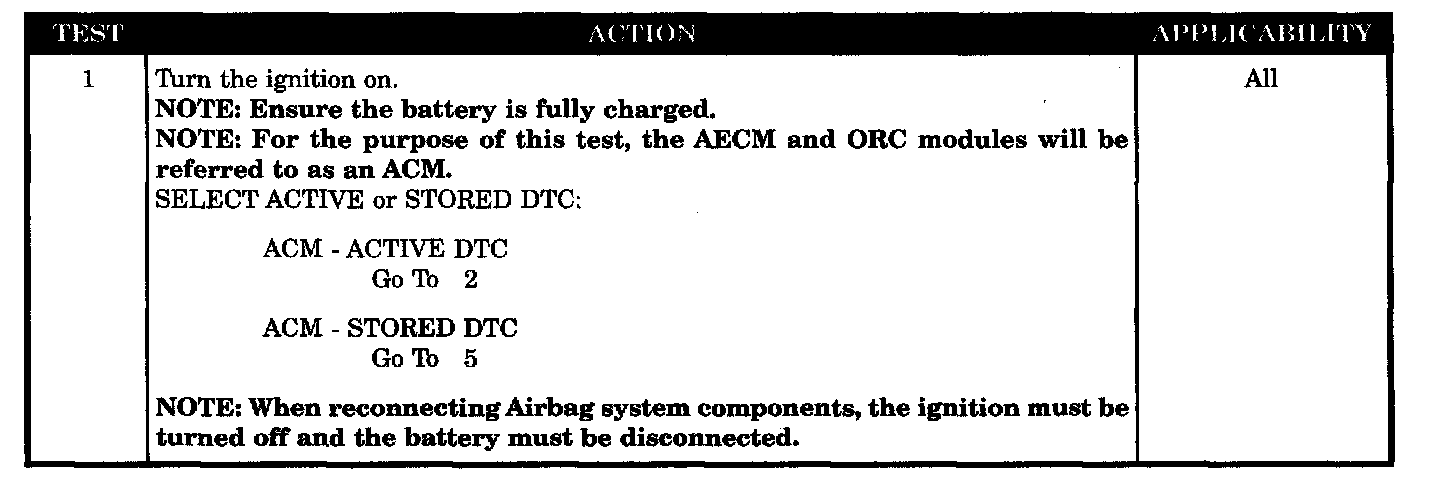

Test 1:

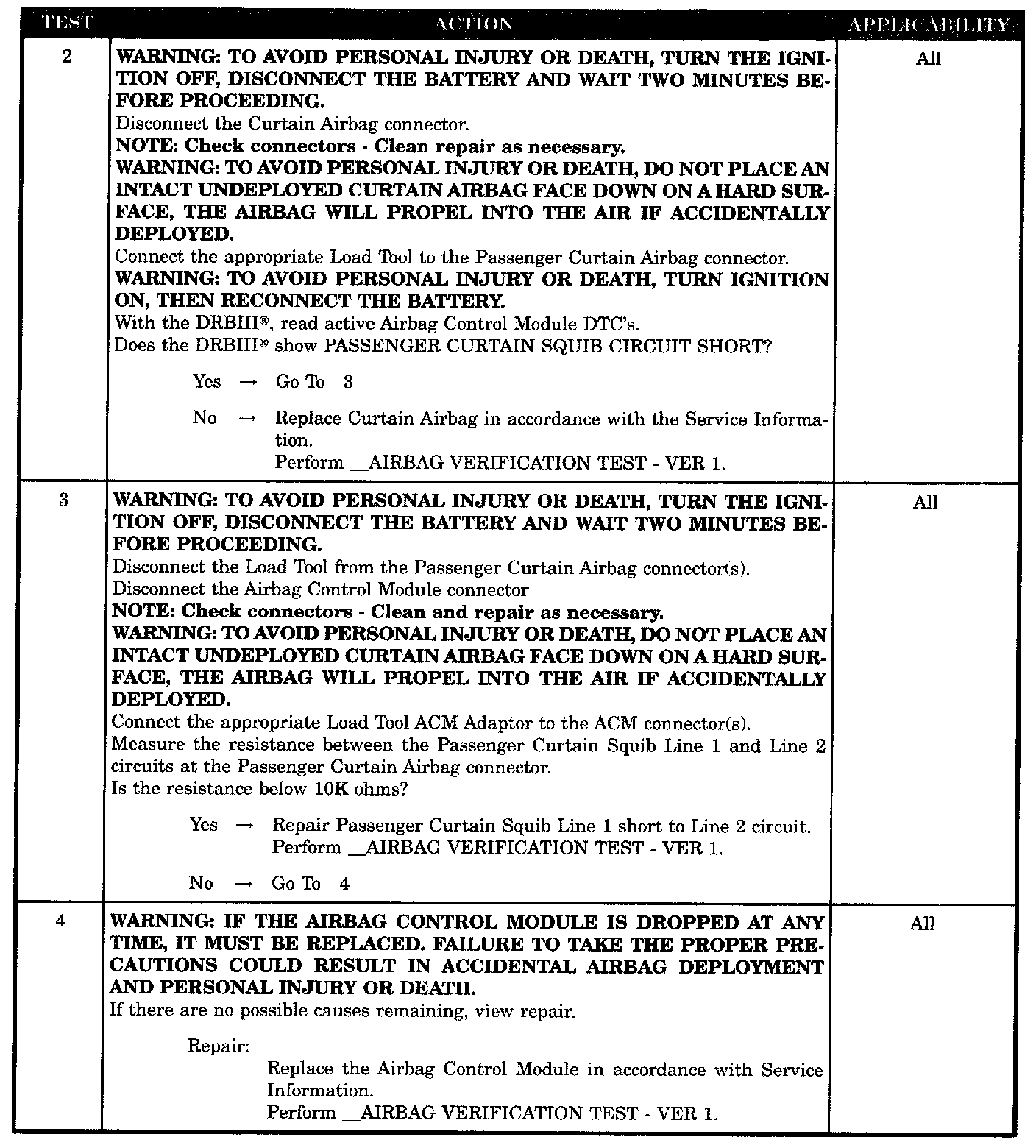

Test 2 - 4:

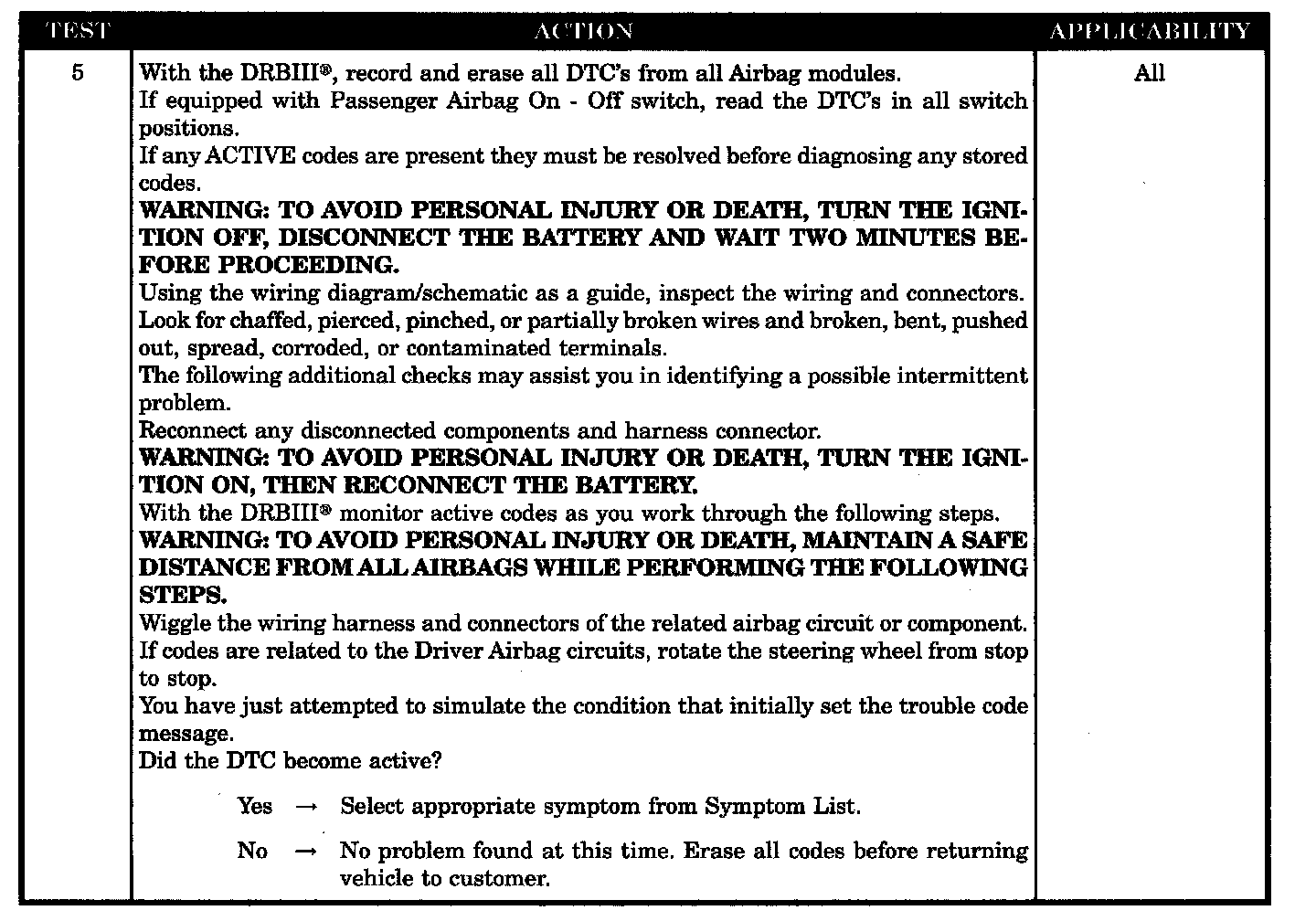

Test 5:

SYMPTOM
PASSENGER CURTAIN SQUIB CIRCUIT SHORT

WHEN MONITORED
With the ignition on, the ACM monitors the resistance between the Passenger Curtain Squib circuits.

SET CONDITION
When the ACM detects a low resistance between the Passenger Curtain Squib circuits.

POSSIBLE CAUSES
- Passenger curtain squib circuit short
- Passenger curtain squib line 1 short to line 2
- ACM, passenger curtain squib circuit short
- Stored code or intermittent condition
- Active code present
