Driver Curtain Squib Circuit Open

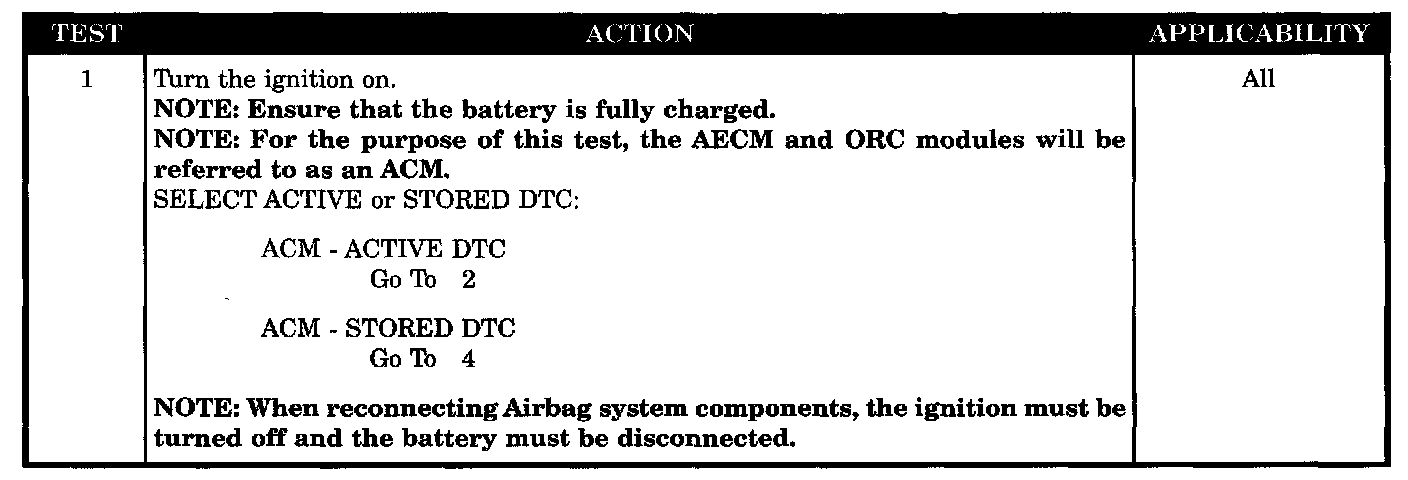

Test 1:

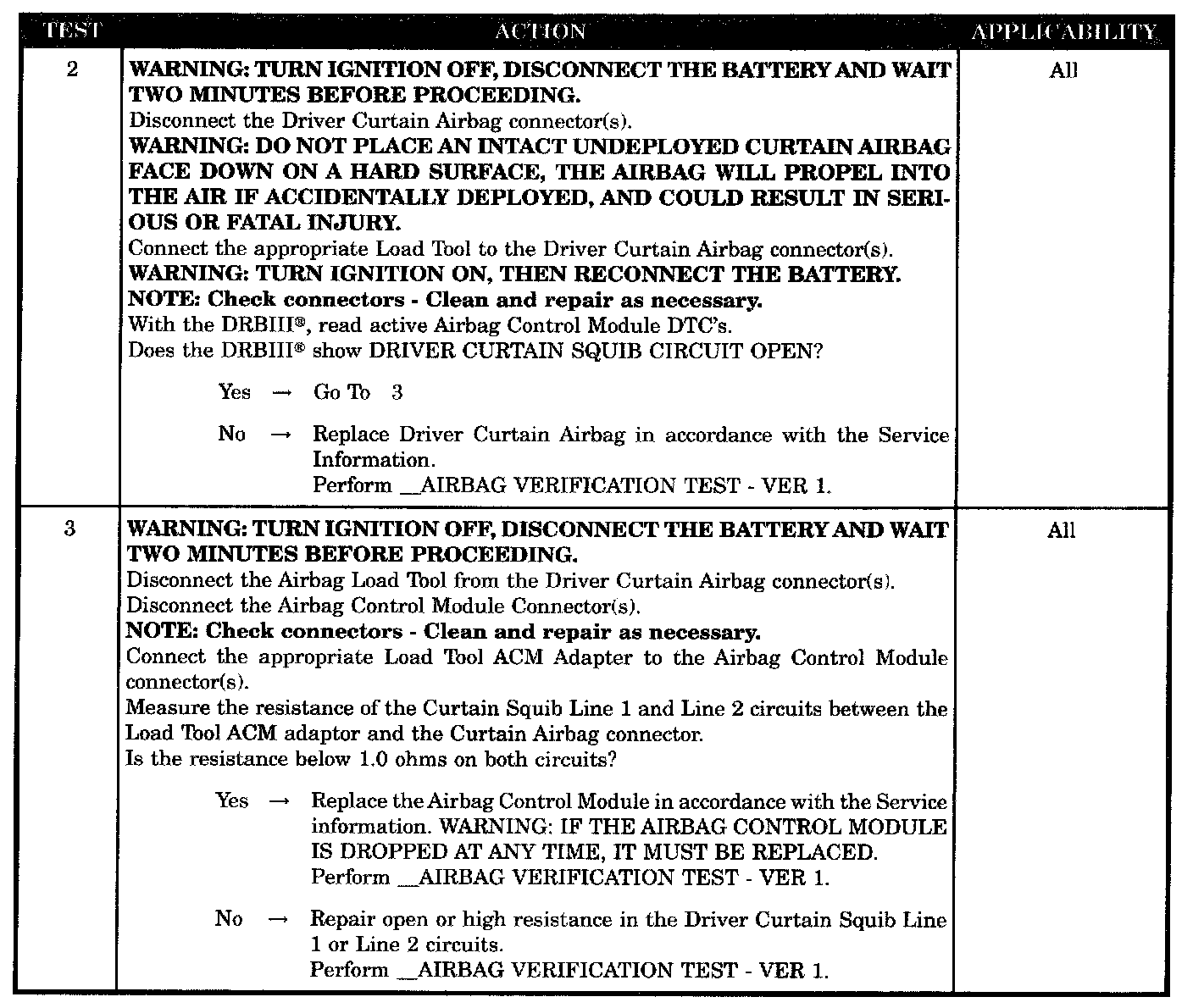

Test 2 - 3:

Test 4:

SYMPTOM
DRIVER CURTAIN SQUIB CIRCUIT OPEN

WHEN MONITORED
With the ignition on, the ACM monitors the resistance of the Driver Curtain Squib circuits.

SET CONDITION
when the ACM detects an open circuit or high resistance on the Curtain Squib circuits.

POSSIBLE CAUSES
- Driver curtain airbag circuit open
- Driver curtain squib line 1 or line 2 circuit open
- ACM, driver curtain squib circuit open
- Stored code or intermittent condition
- Active code present
