Door Lock Switch Failure

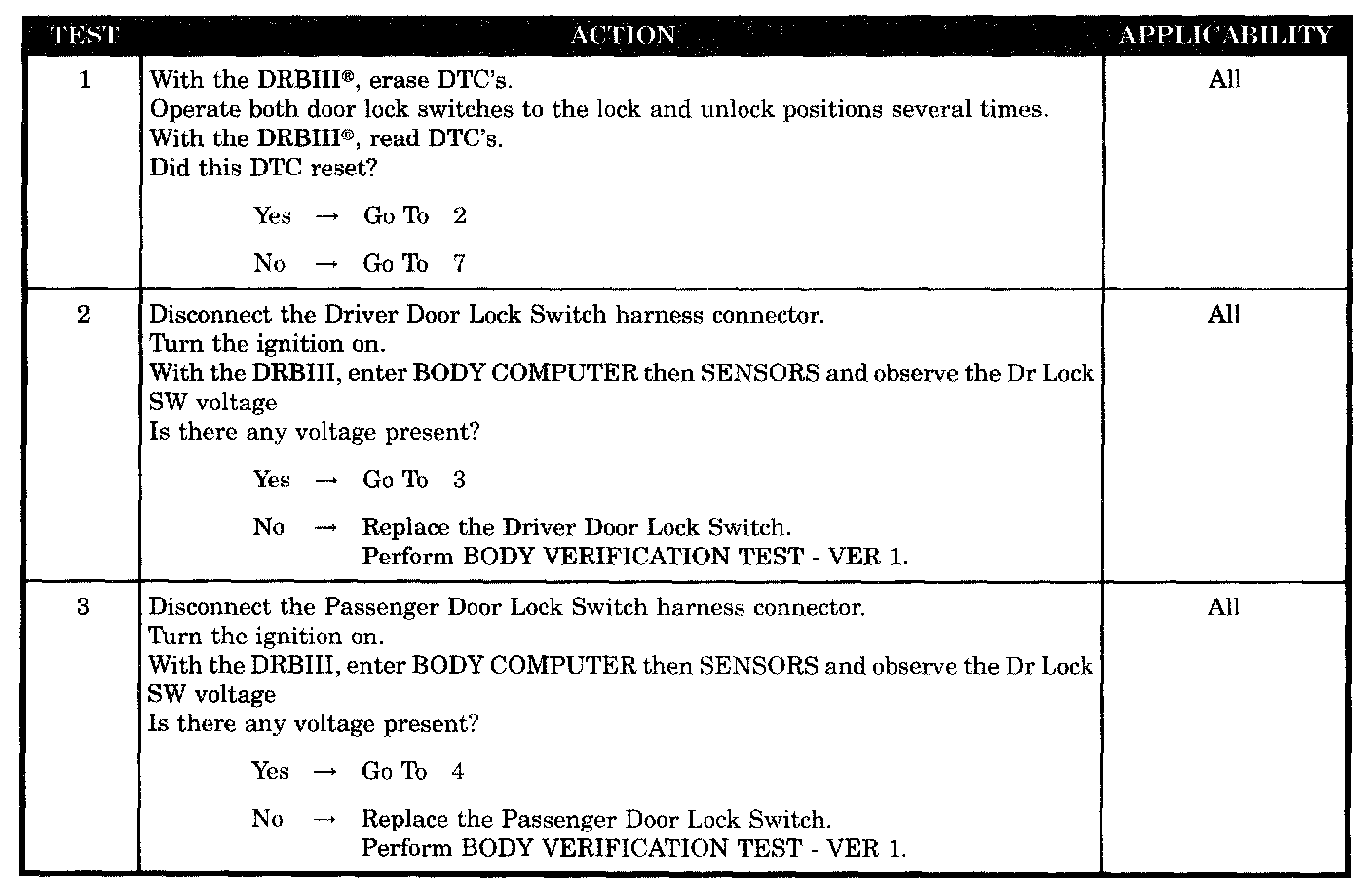

Test 1 - 3:
Test 4 - 7:
SYMPTOM
DOOR LOCK SWITCH FAILURE
WHEN MONITORED
Continuously.
SET CONDITION
When the BCM detects a signal on the Driver or Passenger Door Lock Switch for over 8 seconds this code will set. If the voltage is over 5.5 volts for over 8 seconds, both door lock switches will be inoperative until the offending input is corrected. This is an active code only.
POSSIBLE CAUSES
- Driver door lock switch shorted
- Passenger door lock switch shorted
- Driver door lock switch mux circuit shorted to voltage
- Passenger door lock switch mux circuit shorted to voltage
- System intermittent
- Body control module - door lock switch shorted
