No Response From Traveler (CMTC)

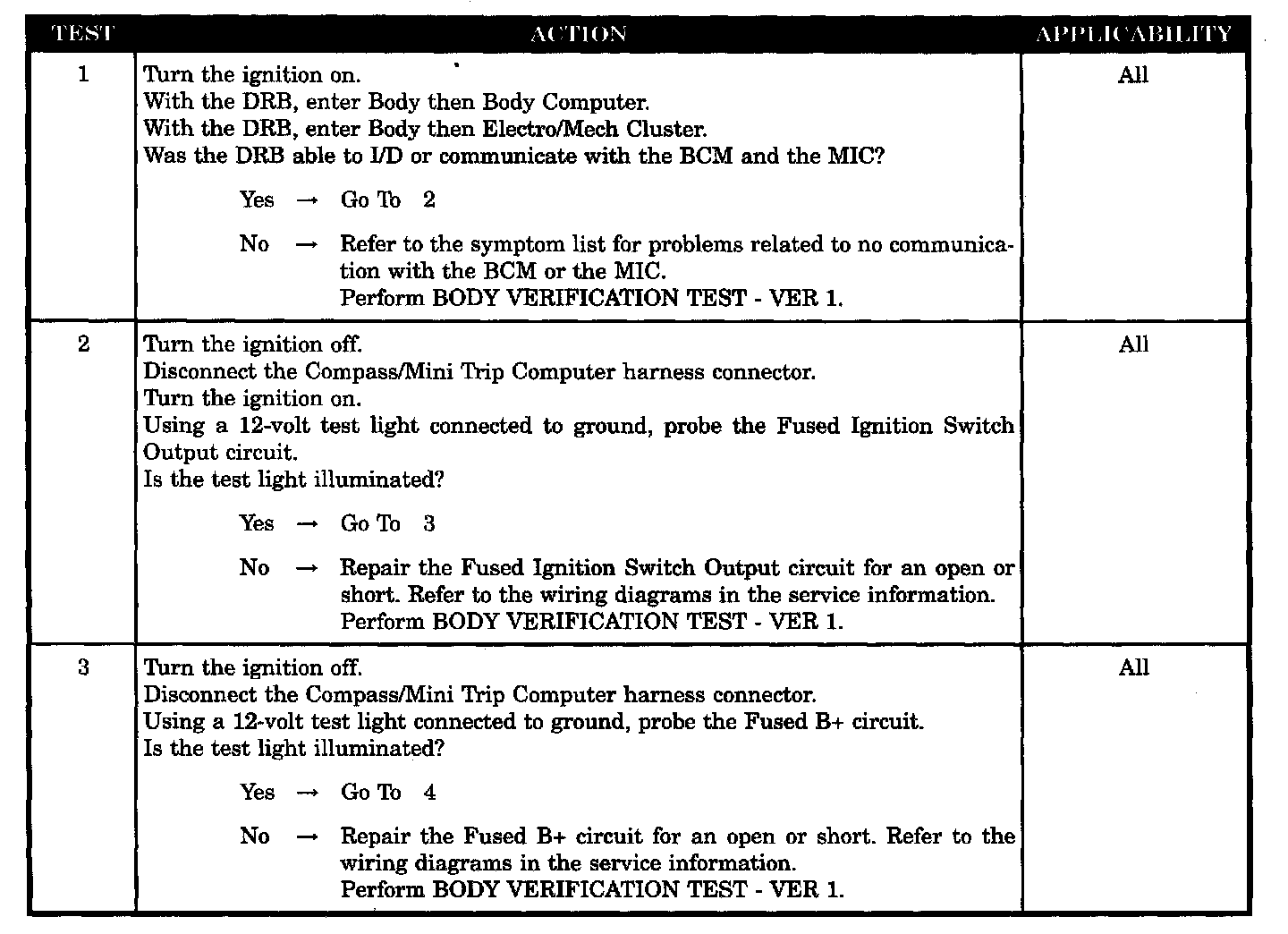

Test 1 - 3:

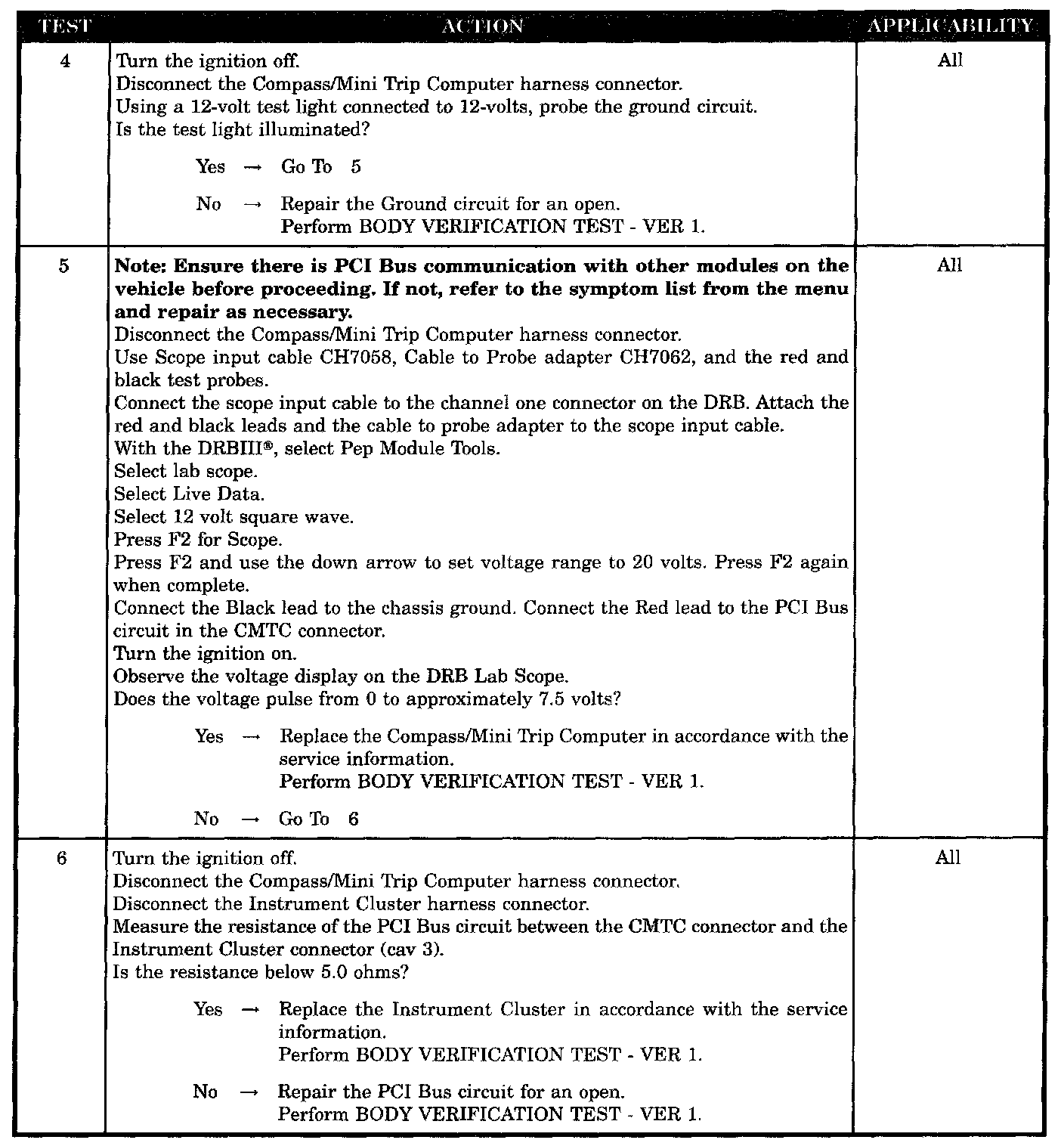

Test 4 - 6:

SYMPTOM
NO RESPONSE FROM TRAVELER (CMTC)

POSSIBLE CAUSES
- Attempt to communicate with the BCM and the MIC
- Fused ignition switch output circuit open
- Fused B+ circuit open
- Ground circuit open
- Compass/Mini trip computer (CMTC)
- PCI bus circuit open
- Instrument cluster
