No Response From Transmission Control Module - NGC

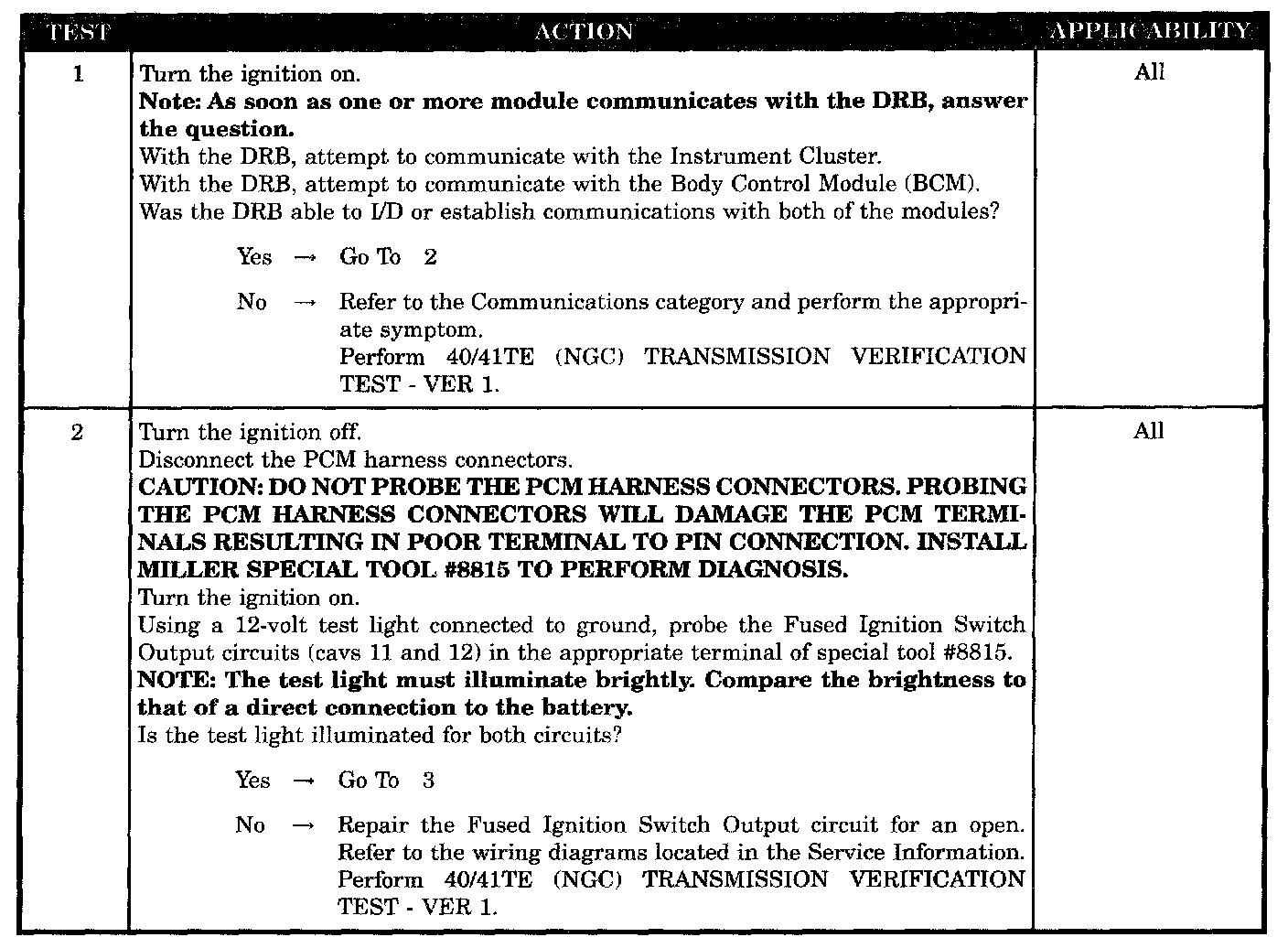

Test 1 - 2:

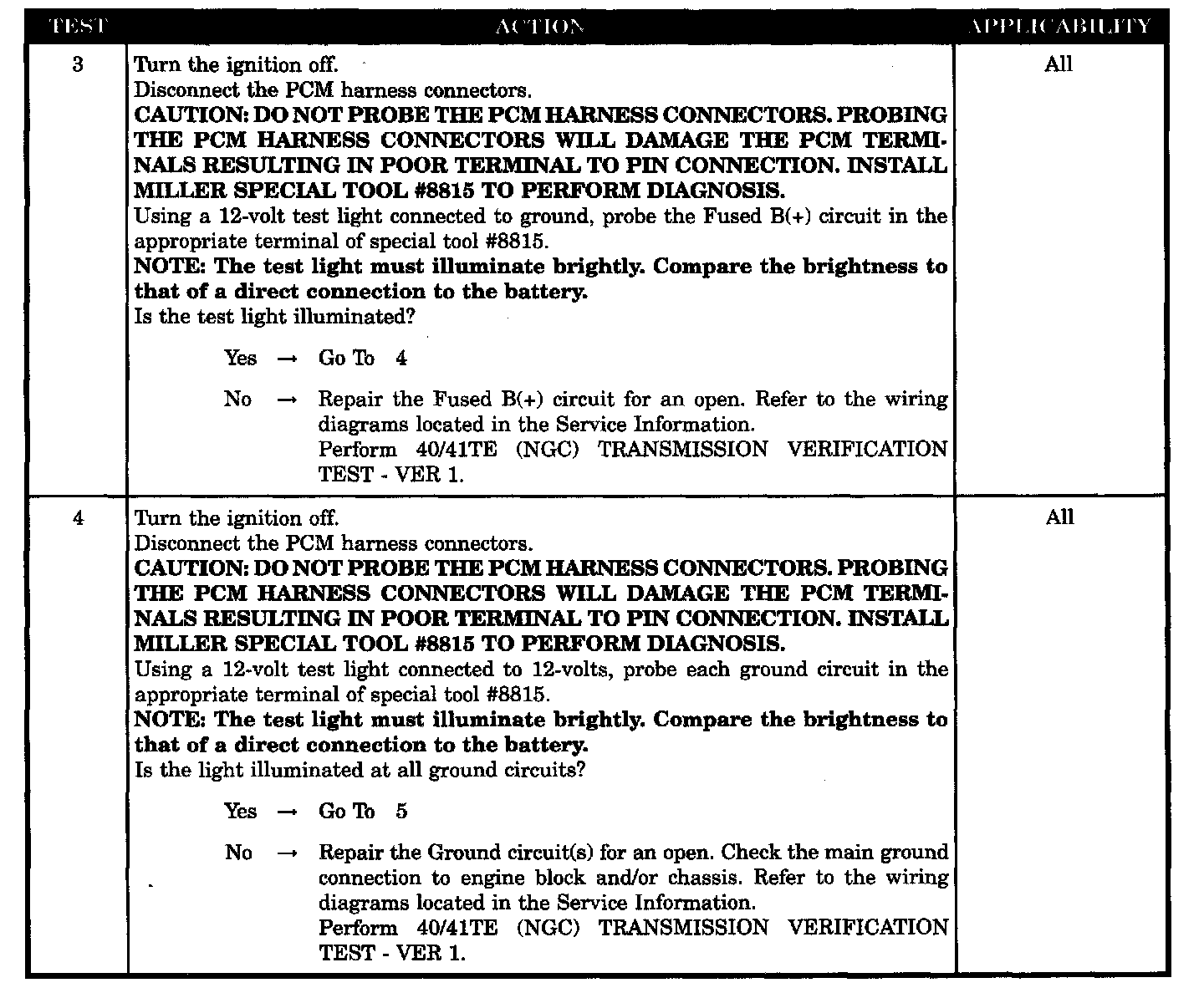

Test 3 - 4:

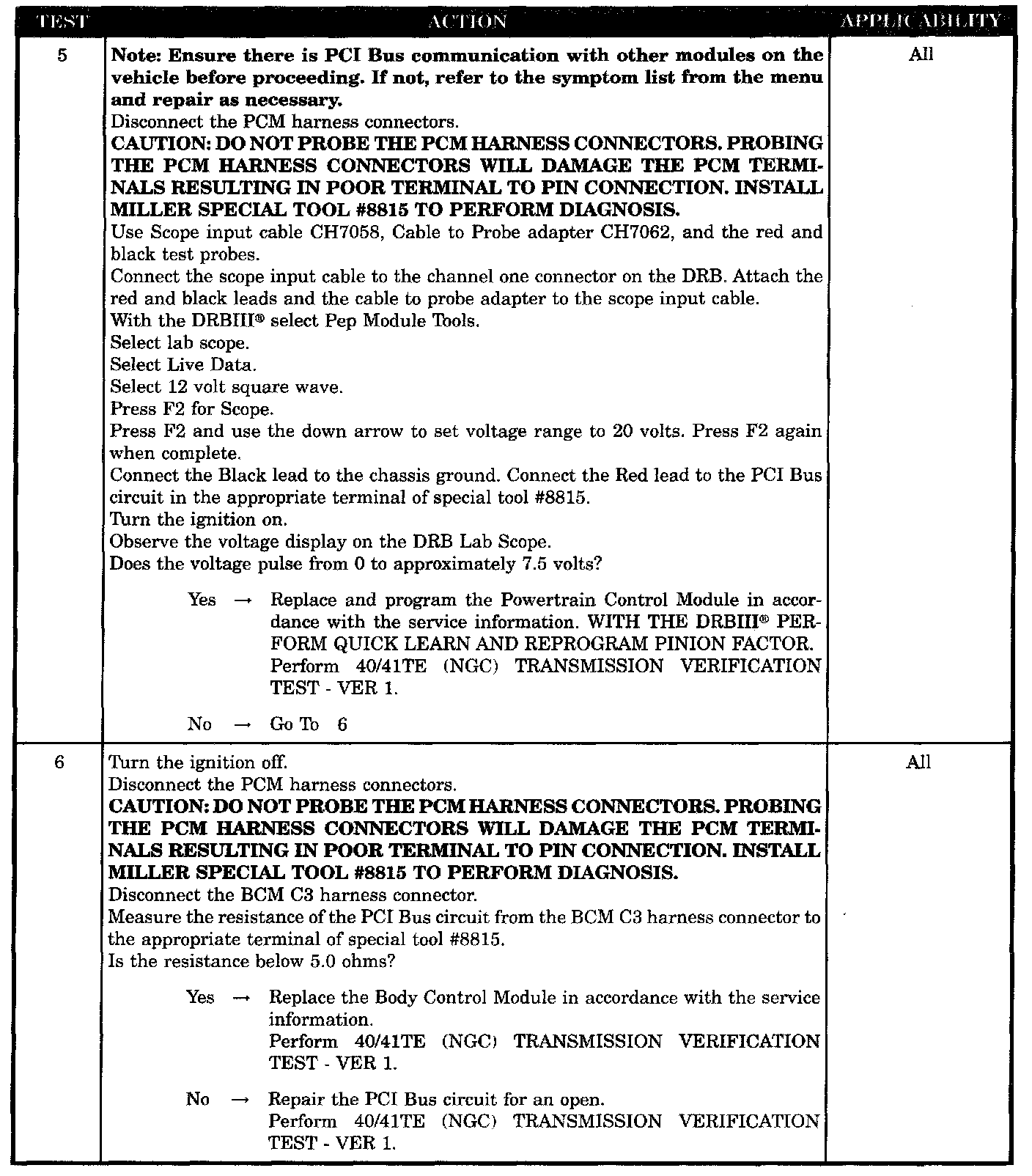

Test 5 - 6:

SYMPTOM
NO RESPONSE FROM TRANSMISSION CONTROL MODULE - NGC

POSSIBLE CAUSES
- No response from transmission control module
- Fused ignition switch output circuit open
- Fused B(+) circuit open
- Ground circuit(s) open
- Powertrain control module
- PCI bus circuit open
- Body control module
