No Response From PCM (PCI BUS) - NGC

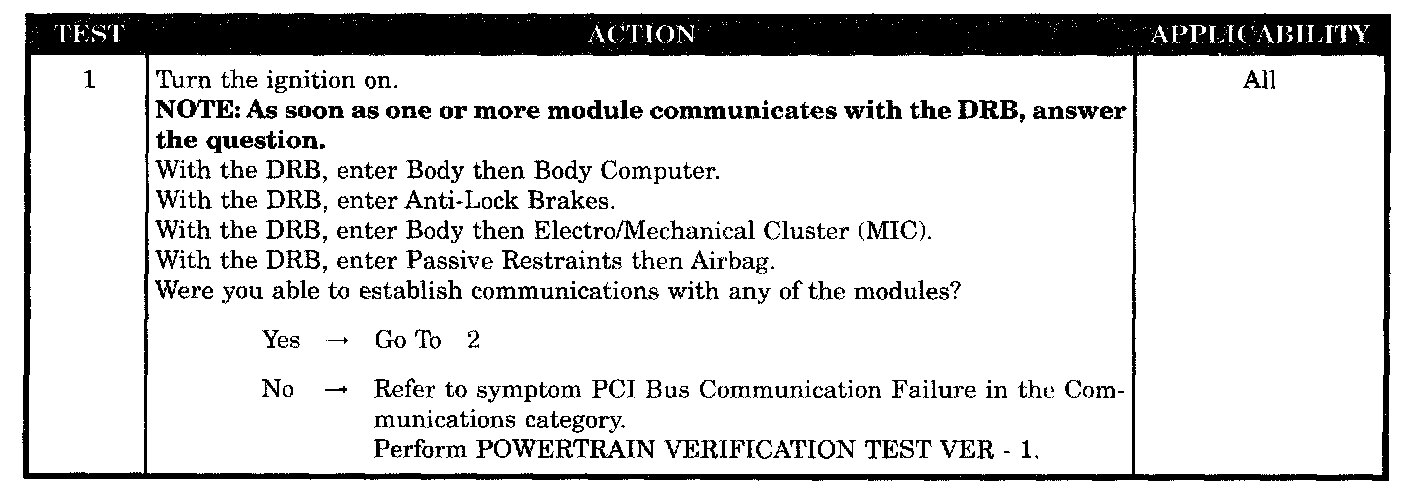

Test 1:

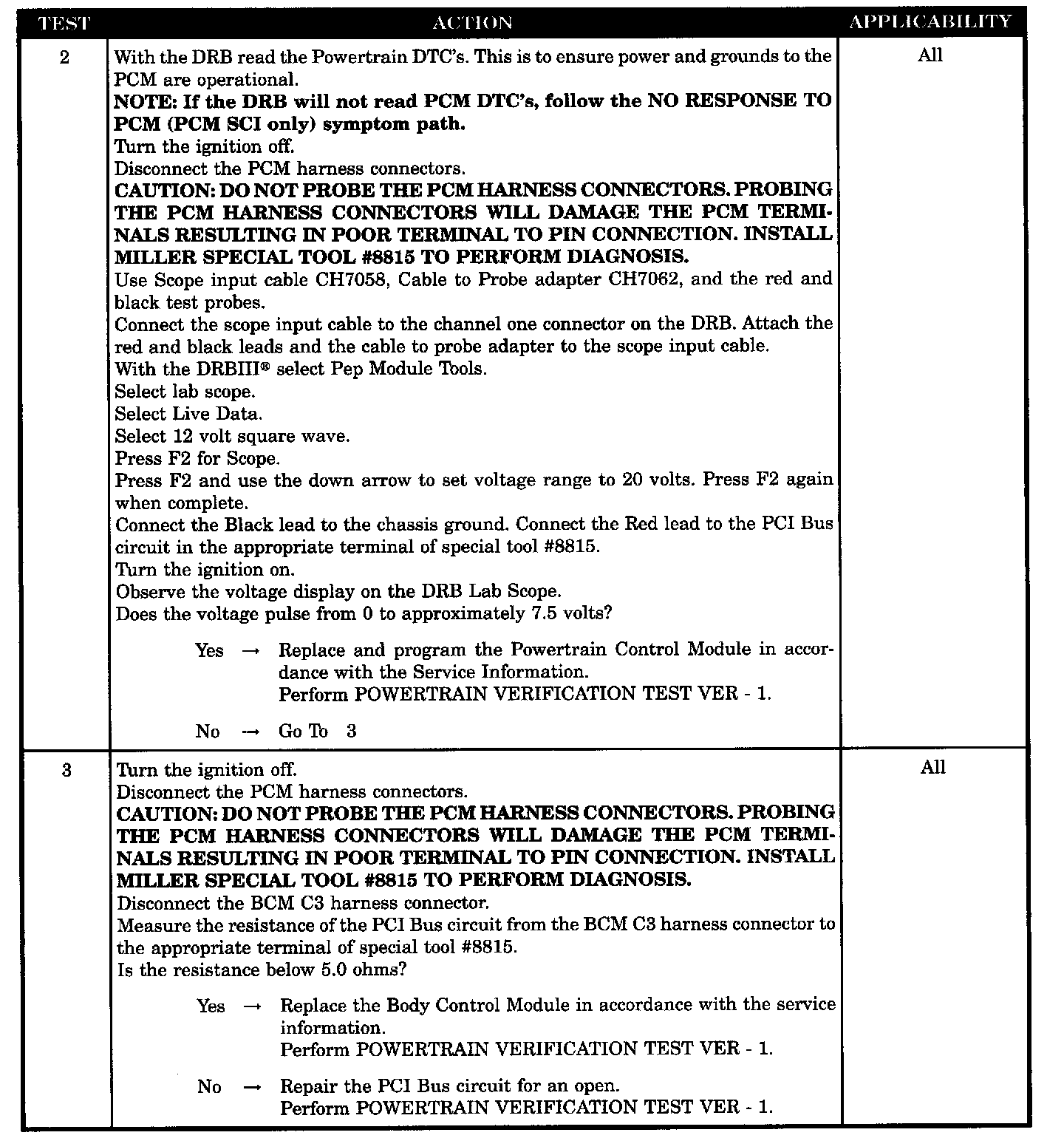

Test 2 - 3:

SYMPTOM
NO RESPONSE FROM PCM (PCI BUS) - NGC

POSSIBLE CAUSES
- PCM PCI no response
- Powertrain control module
- PCI bus circuit open
- Body control module
