Chrysler
>>
2004
>>
Intrepid (CANADA) V6-2.7L
>>
Repair and Diagnosis
>>
Lighting and Horns
>>
Fog/Driving Lamp
>>
Diagrams
>>
Connector Views
Connector Views

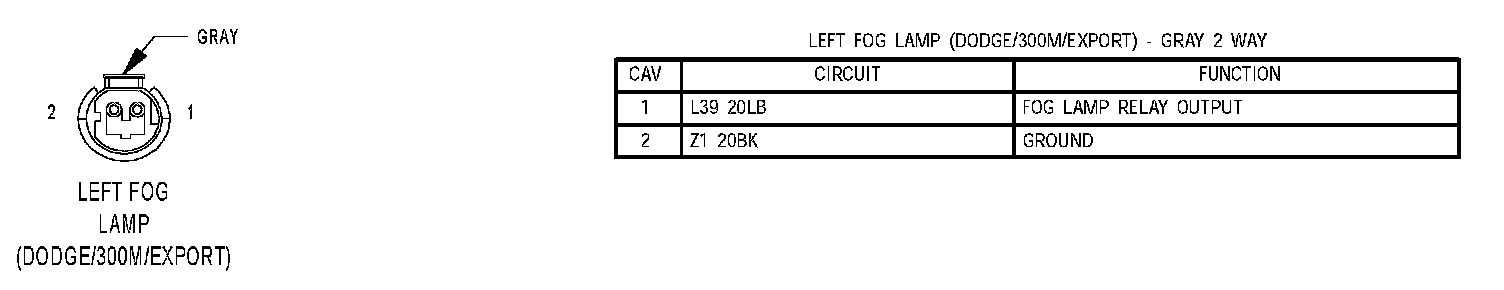

Left Fog Lamp (Dodge/300M/Export):
Left Rear Fog Lamp (Export):

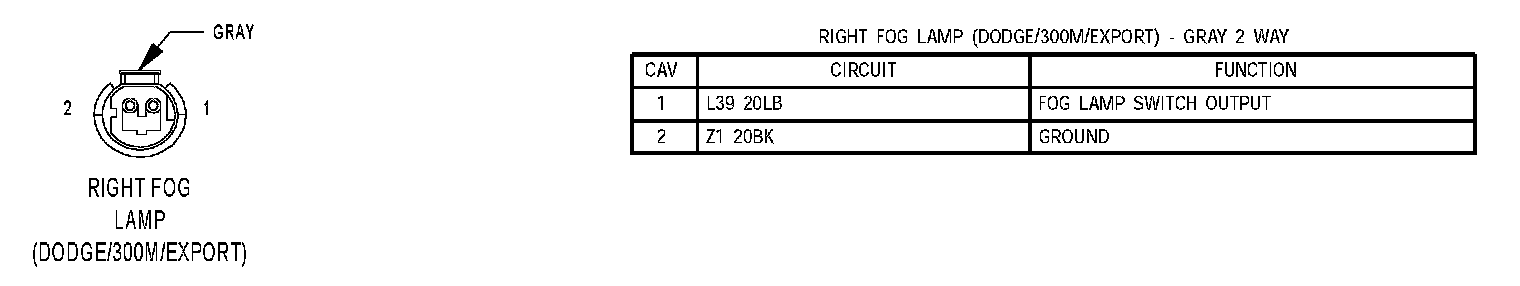

Right Fog Lamp (Dodge/300M/Export):
Right Rear Fog Lamp (Export):
