Washer Nozzle Replacement

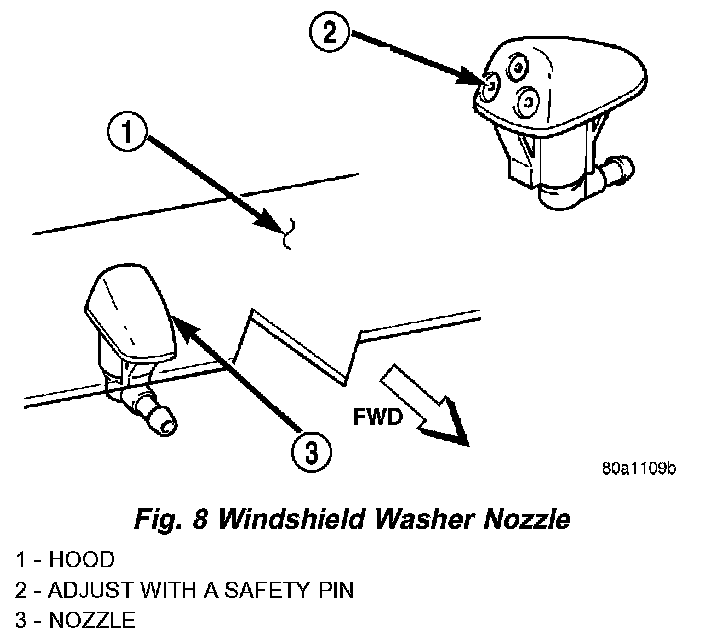

Fig. 8 Windshield Washer Nozzle:

REMOVAL
1. Using a plastic body filler spreader or equivalent (credit card), gently place it underneath the front of the washer nozzle. Be careful not to damage the hood seal underneath the nozzle .
2. Rock the nozzle back and forth slightly to release it from the hood panel.
3. Pull the nozzle out of the hood panel far enough to disconnect the hose.

INSTALLATION
1. Connect washer hose and position nozzel over opening in hood and firmly snap into place.

After connecting hose, check for proper system function and to assure leak free connections by actuating the washer system switch from inside of vehicle.
