Headlamp Washer Hose: Service and Repair

HEADLAMP WASHER HOSES - EXPORT REPLACEMENT

REMOVAL
1. Open hood and disconnect the negative battery cable remote terminal from the remote battery post.
2. Hoist vehicle.
3. Remove the front fascia. Refer to Body for REMOVAL procedures.

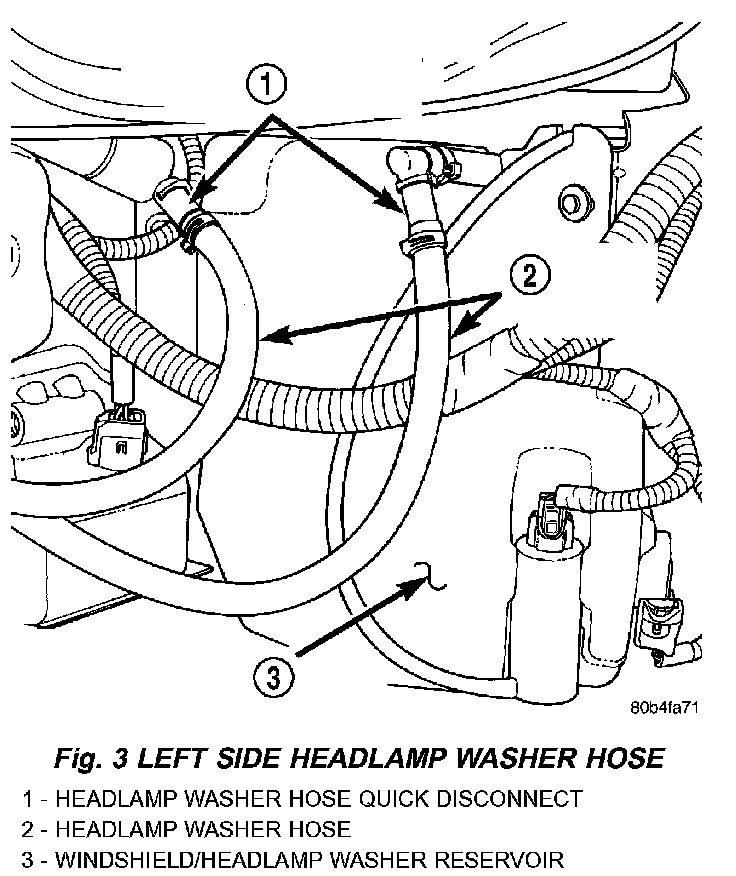

Fig. 3 Left Side Headlamp Washer Hose:

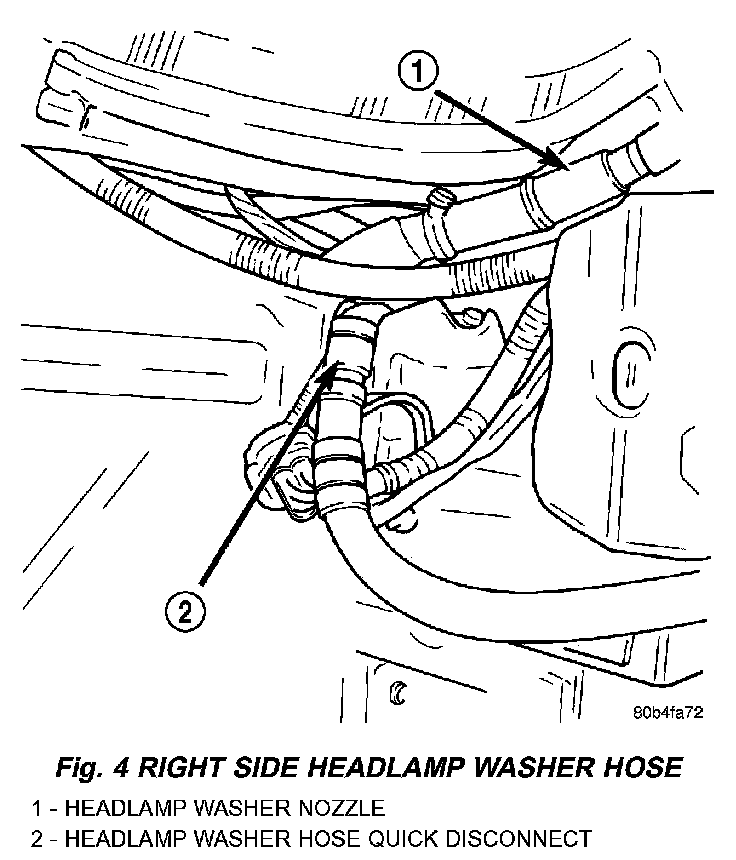

Fig. 4 Right Side Headlamp Washer Hose:

4. Disconnect the headlamp washer hoses at the quick disconnect connectors and.
5. Remove the headlamp washer hoses from the radiator closure panel.

INSTALLATION
1. Install the headlamp washer hoses to the radiator closure panel.
2. Connect the headlamp washer hoses quick disconnect connectors and.
3. Reinstall the front fascia. Refer to Body for INSTALLATION procedures.
4. Lower vehicle from hoist.
5. Refill the washer fluid.
6. Reconnect the negative battery cable remote terminal.
