Wiring Diagram Index

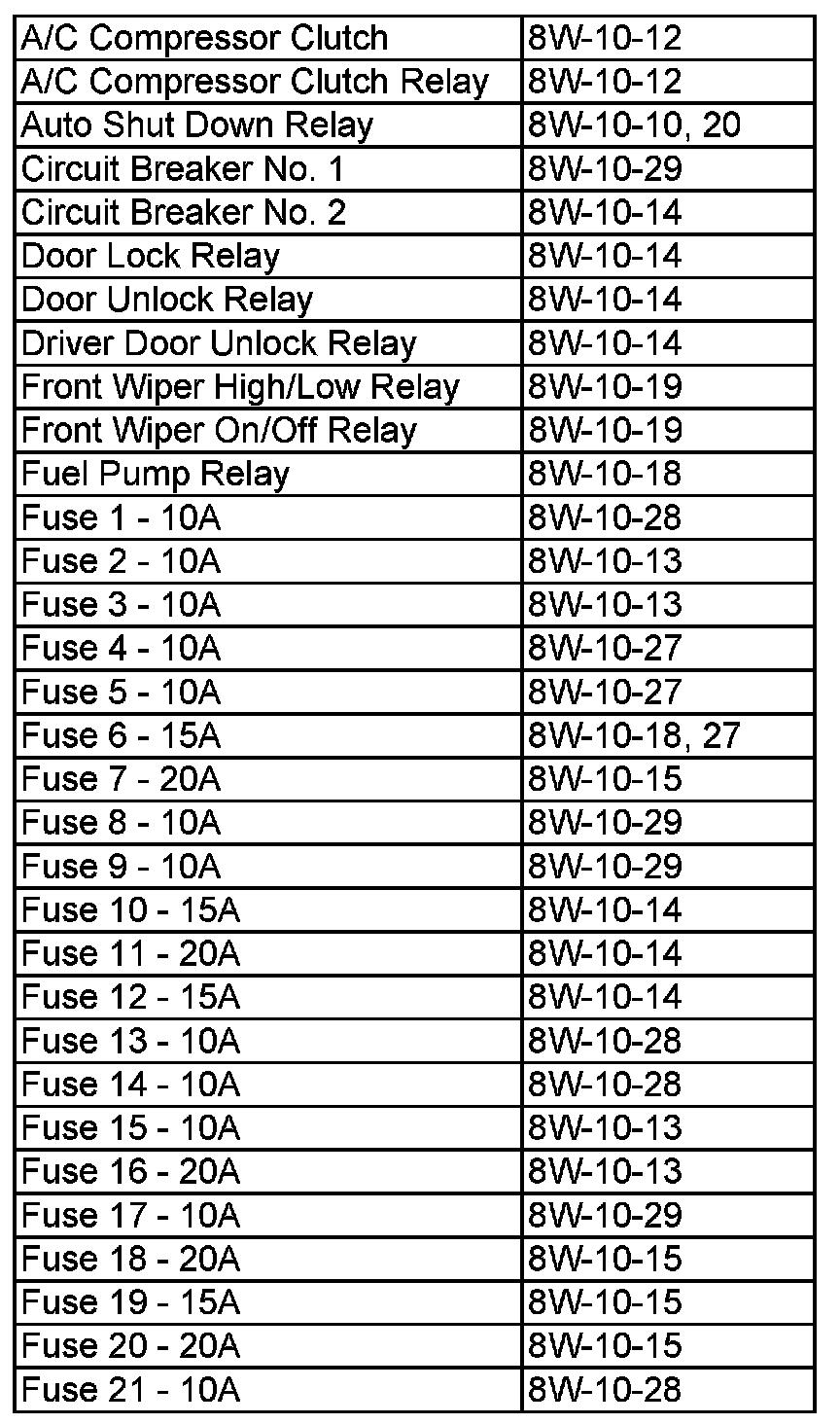

Power Distribution Circuits (A/C Compressor Clutch - Fuse 21):

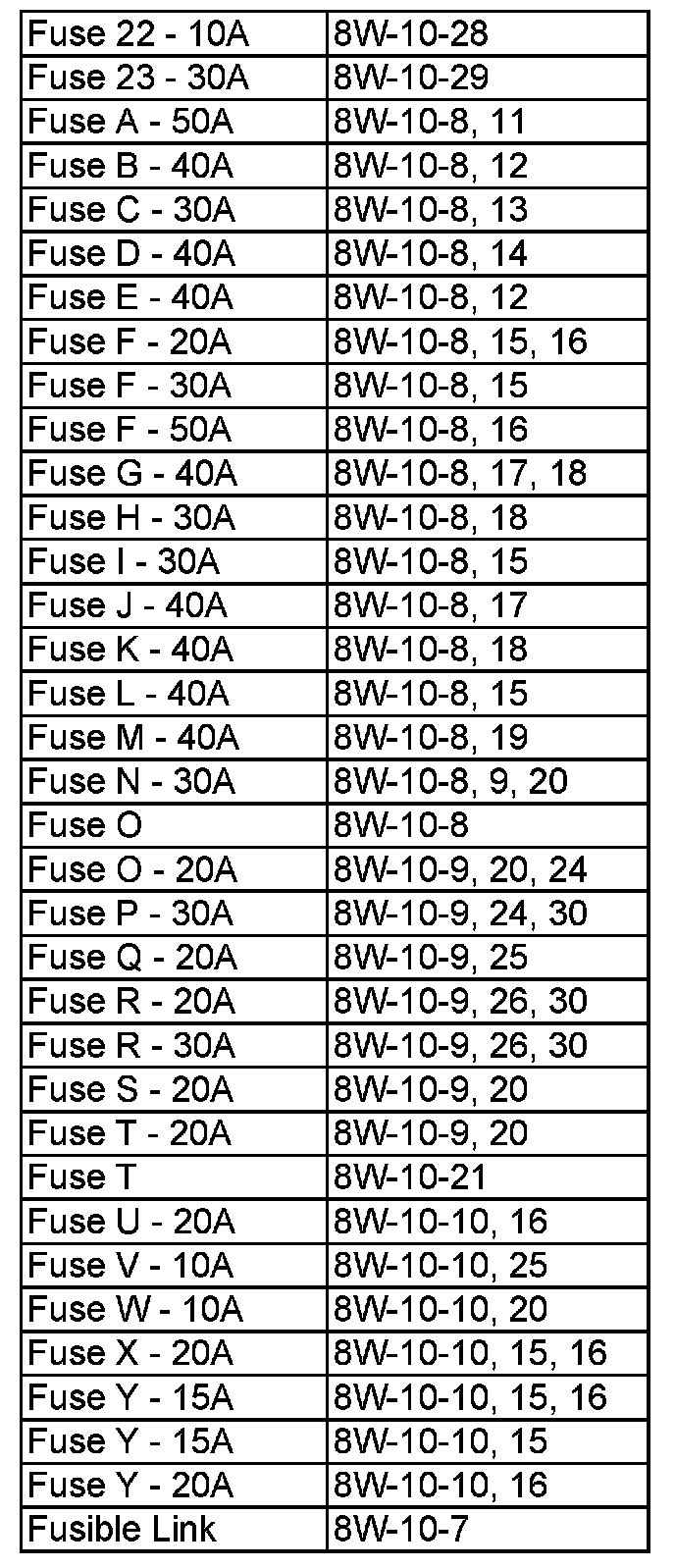

Power Distribution Circuits (Fuse 22 - Fusible Link):

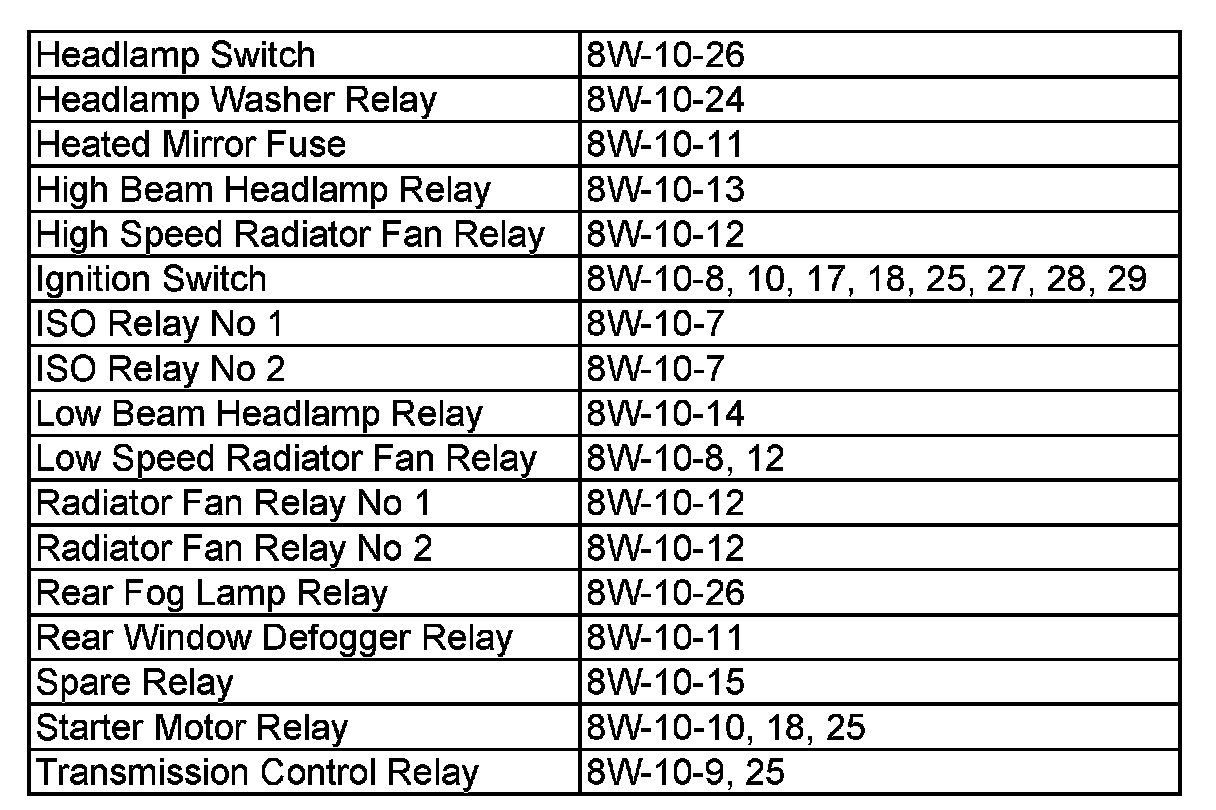

Power Distribution Circuits (Headlamp Switch - Transmission Control Relay):

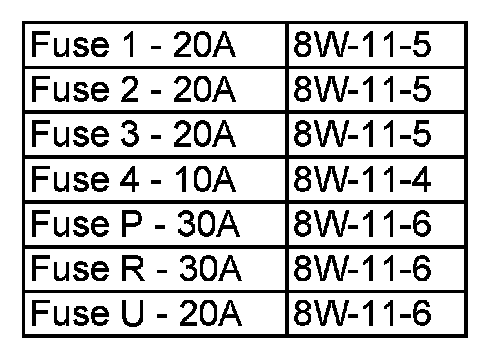

Fuse Block Circuits (Fuse 1 - Fuse U):

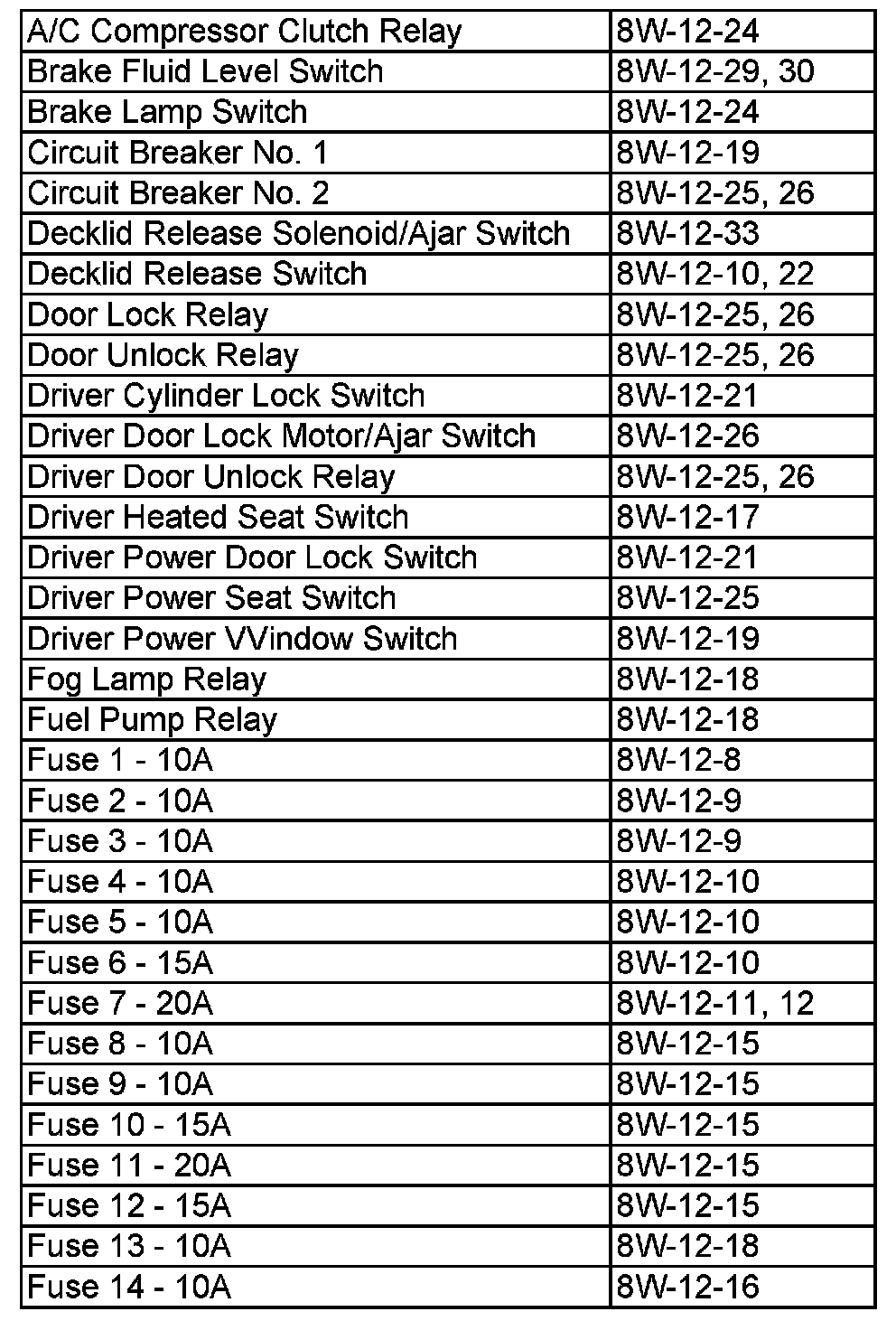

Junction Block Circuits (A/C Compressor Clutch Relay - Fuse 14):

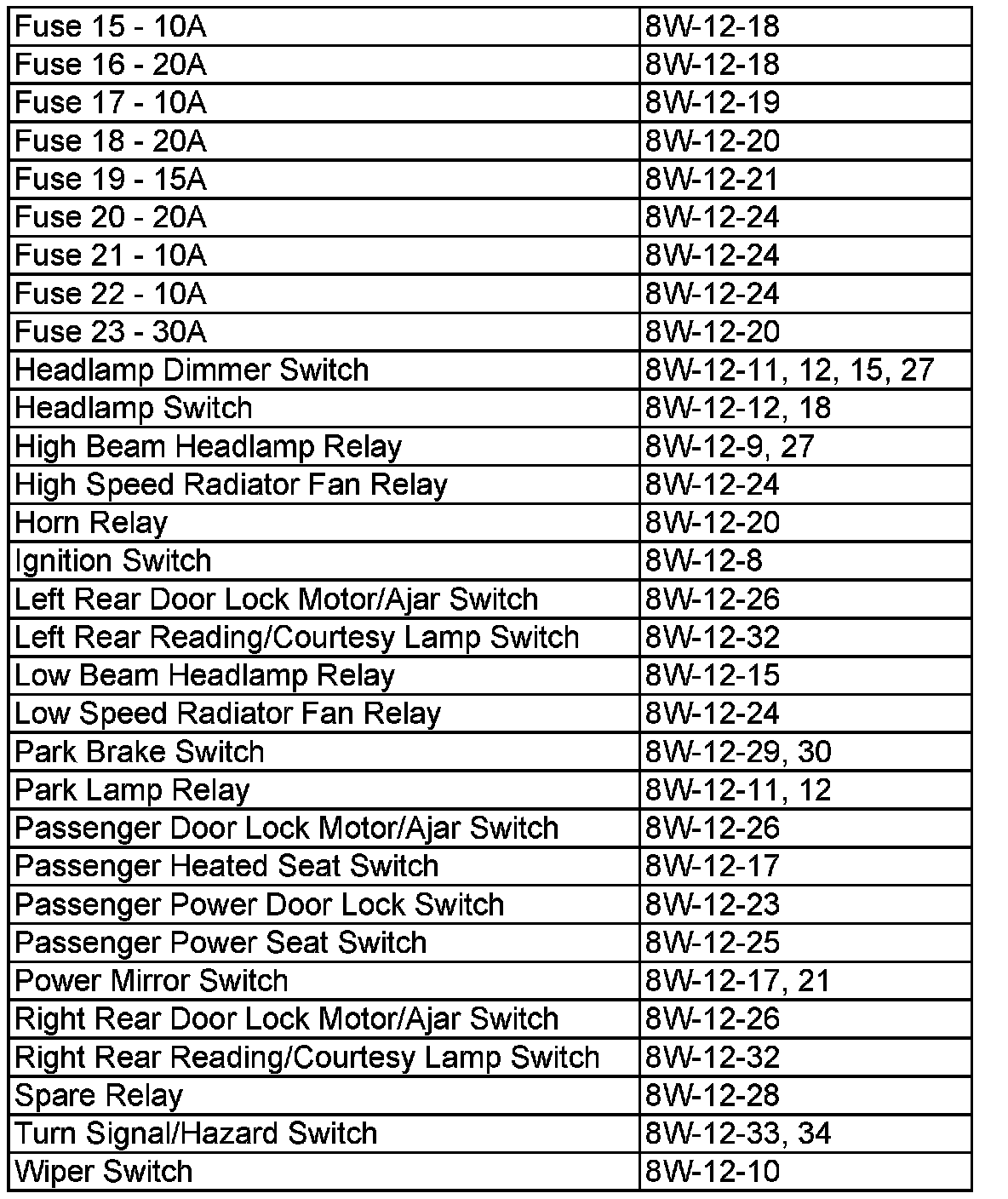

Junction Block Circuits (Fuse 15 - Wiper Switch):
