System Specifications

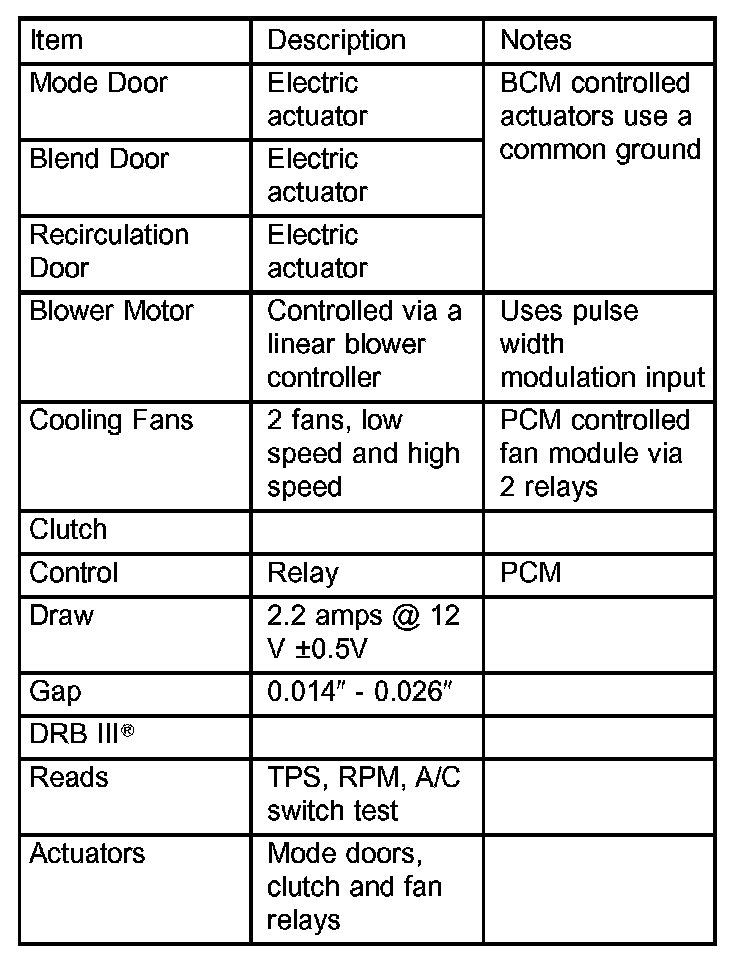

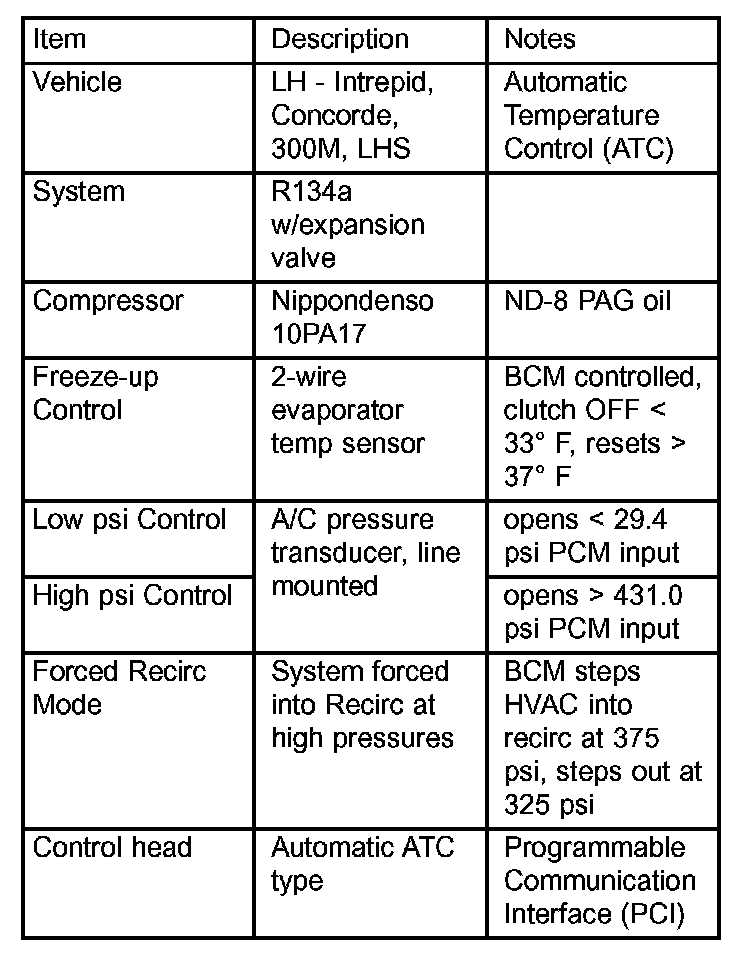

A/C Application Table - ATC:




A/C Application Table - ATC:




A/C Application Table - MTC:




A/C Application Table - MTC:




A/C Application Table - MTC:

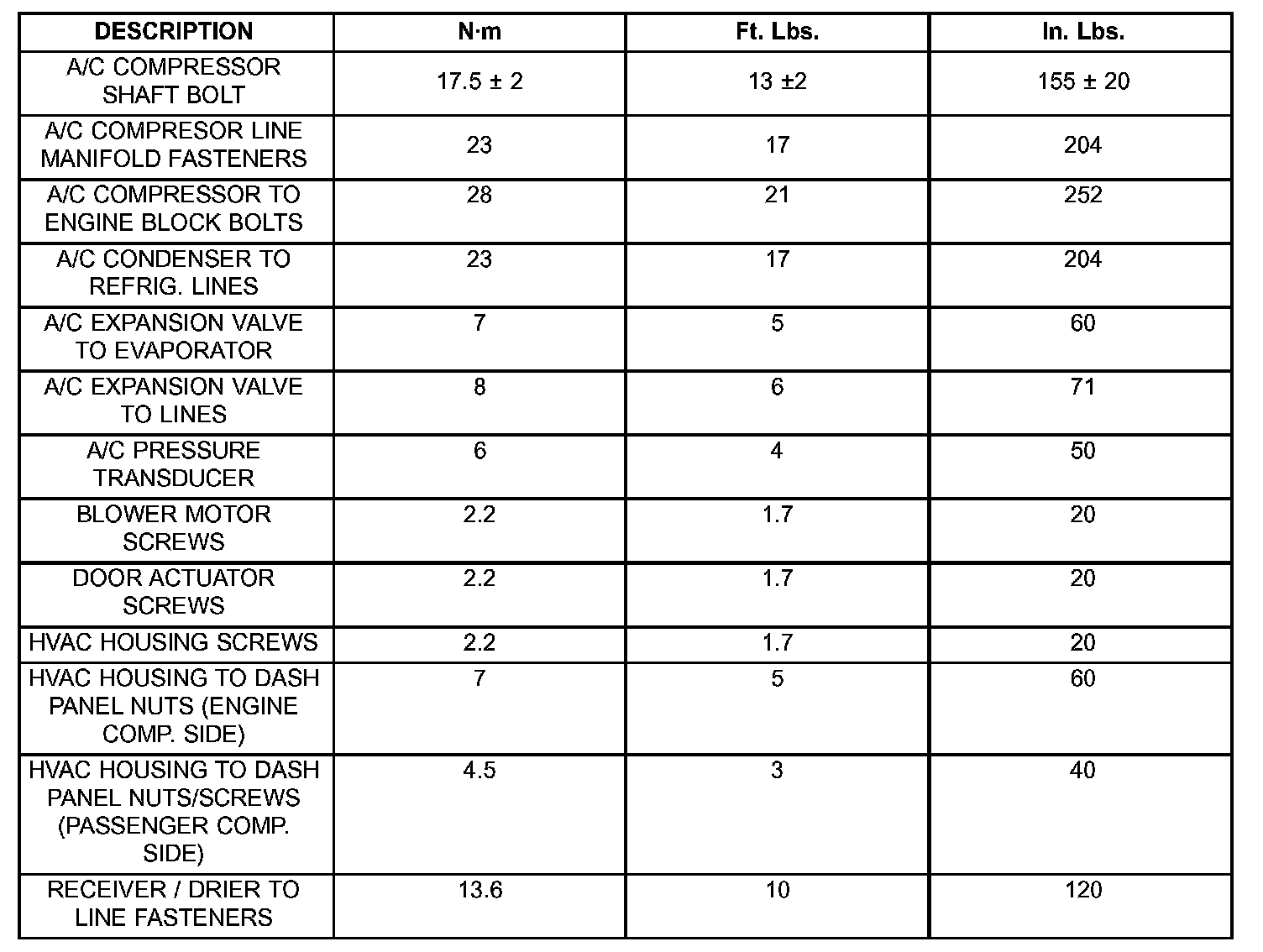

Torque Specifications:
