Lighting and Horns

EXTERIOR LAMPS

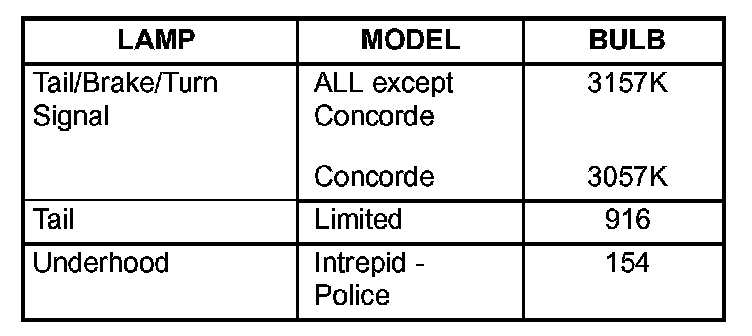

Bulb Application Table:

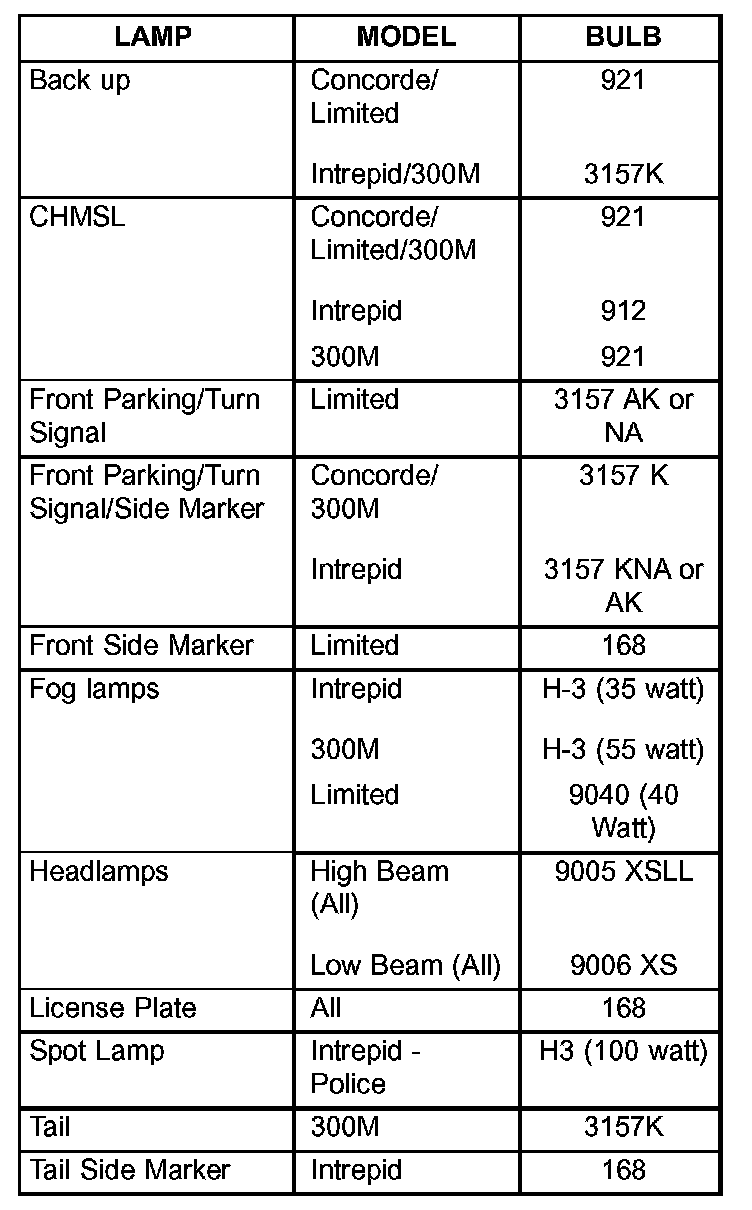

Bulb Application Table:

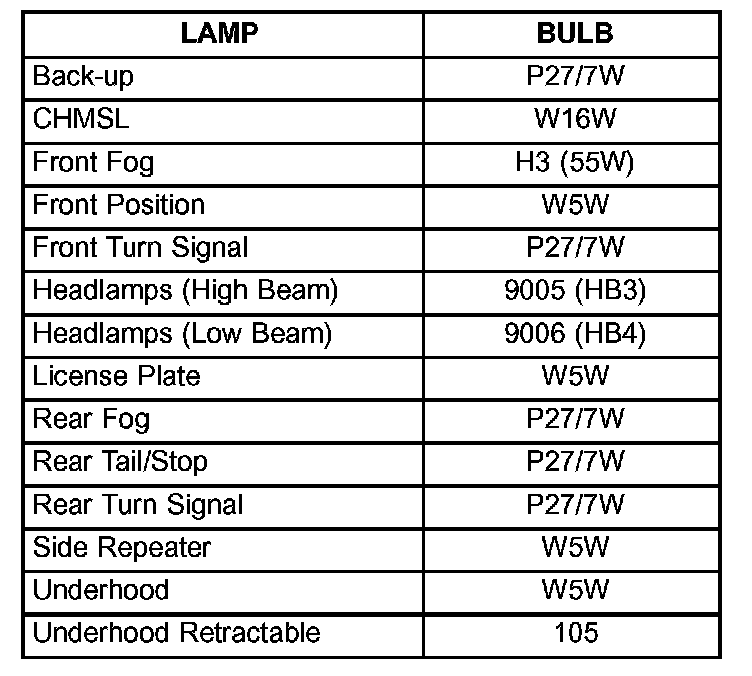

Bulb Application Table - Export:

CAUTION: Do not use bulbs other than those listed in the Bulb Application Table. Damage to lamp can result.

Do not touch halogen bulbs with fingers or other oily surfaces. Bulb life will be reduced.


INTERIOR LAMPS

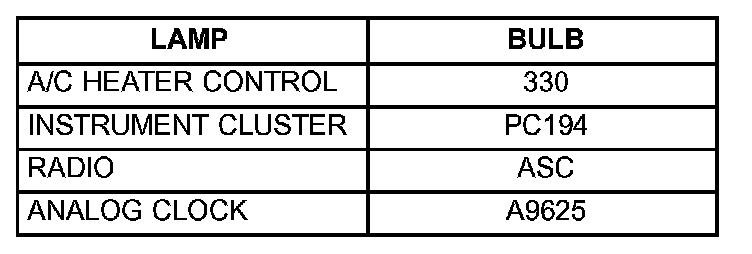

Dimmer Controlled Lamp Application Table:

DIMMER CONTROLLED INTERIOR LAMPS
Service procedures for most of the lamps in the instrument panel, Instrument cluster and switches are located in Electrical, Instrument Cluster. Some components have lamps that can only be serviced by an Authorized Service Center (ASC) after the component is removed from the vehicle. Contact local dealer for location of nearest ASC.

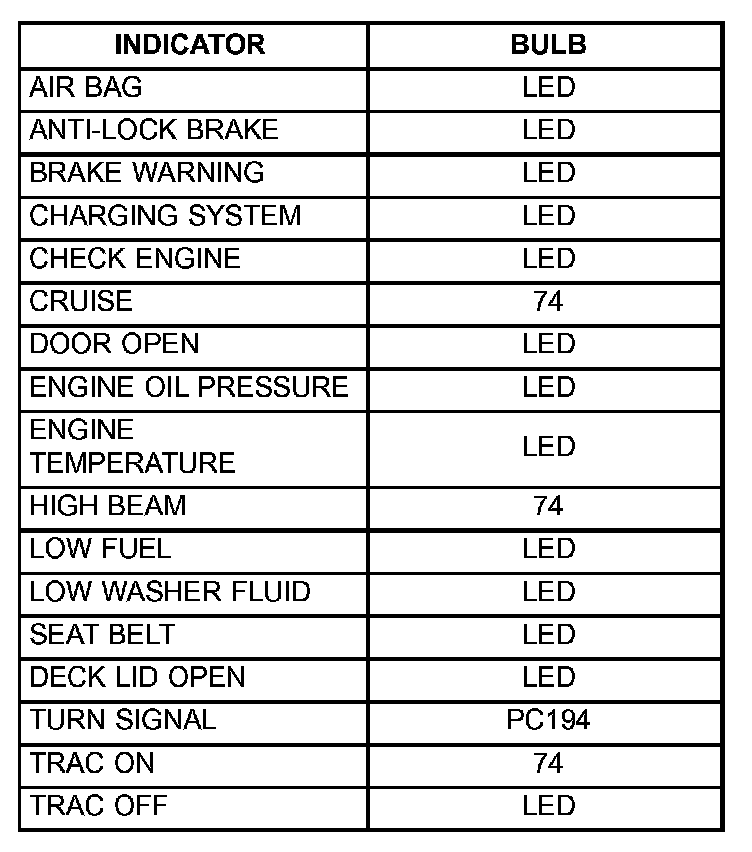

Indicator Lamp Application Table:

INDICATOR LAMPS
Service procedures for most of the lamps in the instrument cluster are located in Electrical, Instrument Cluster.

CAUTION : Do not use bulbs other than those listed in the Bulb Application Table. Damage to lamp can result.

CAUTION : Do not touch halogen bulbs with fingers or other oily surfaces. Bulb life will be reduced.

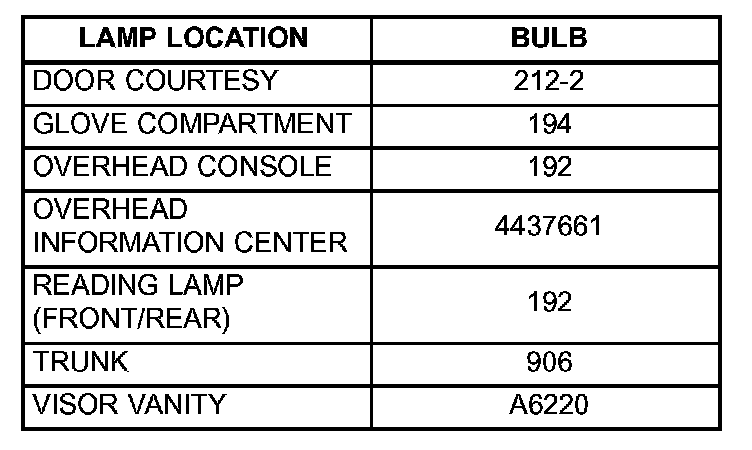

Interior Lamp Application Table:

INTERIOR LAMPS
Service procedures for most of the lamps in the following list can be found in Body. Some components have lamps that can only be serviced by an Authorized Service Center (ASC) after the component is removed from the vehicle. Contact local dealer for location of nearest ASC.
