Drive Belt: Adjustments

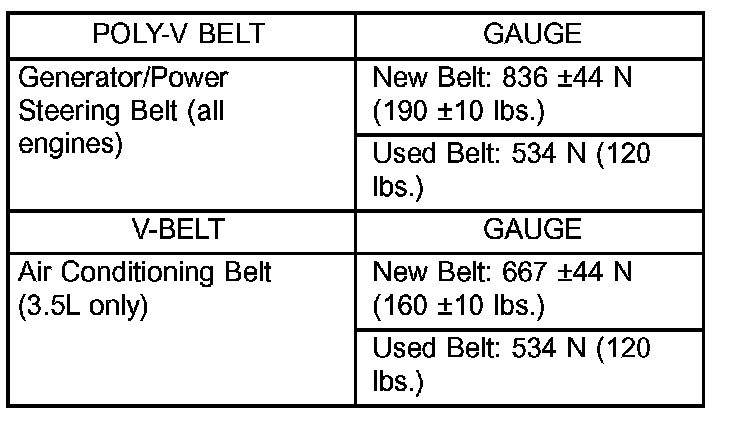

BELT TENSION CHART:

ADJUSTMENTS - BELT TENSION
Use belt tension gauge, Special Tool 7198 for conventional V-belts and Poly-V belts.

Adjust the belt tension for NEW or USED belt tension applications. Refer to BELT TENSION CHART.
