Underhood Lamp - Police Replacement

REMOVAL
1. Open hood, disconnect and isolate the battery negative remote terminal or pull fuse Y in the PDC.
2. Insert a small flat blade in access slot between the lamp base and lamp lens.

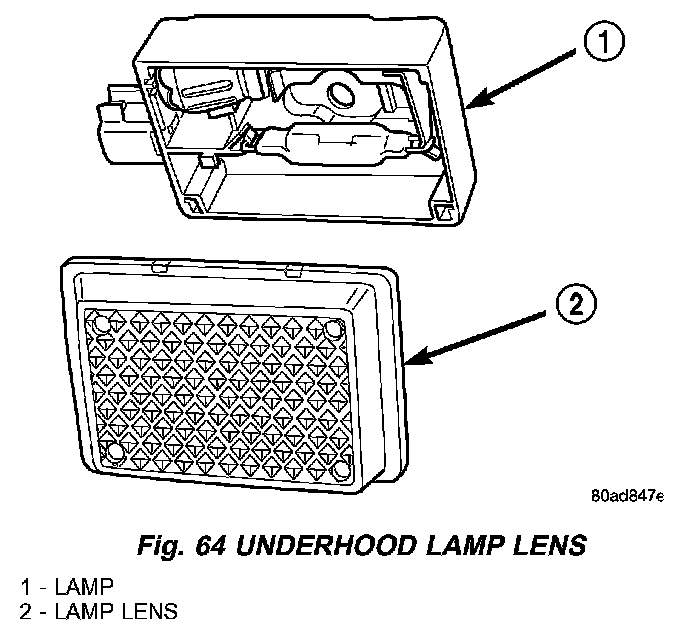

Fig.64 Underhood Lamp Lens:

3. Lift the lamp lens upward and remove the lamp lens.

Fig.65 Underhood Lamp:

4. Depress bulb terminal inward to release bulb.

INSTALLATION
1. Engage the replacement bulb wire loop to terminal closest to lamp base wire connector.
2. Depress the opposite terminal inward and engage the remaining bulb wire loop.
3. Position the lamp lens on the lamp base and press into place.
4. Connect the battery negative remote cable or reinsert fuse Y in the PDC.
5. Verify system and vehicle operation.
