Turn Signal Flasher: Service and Repair

REMOVAL

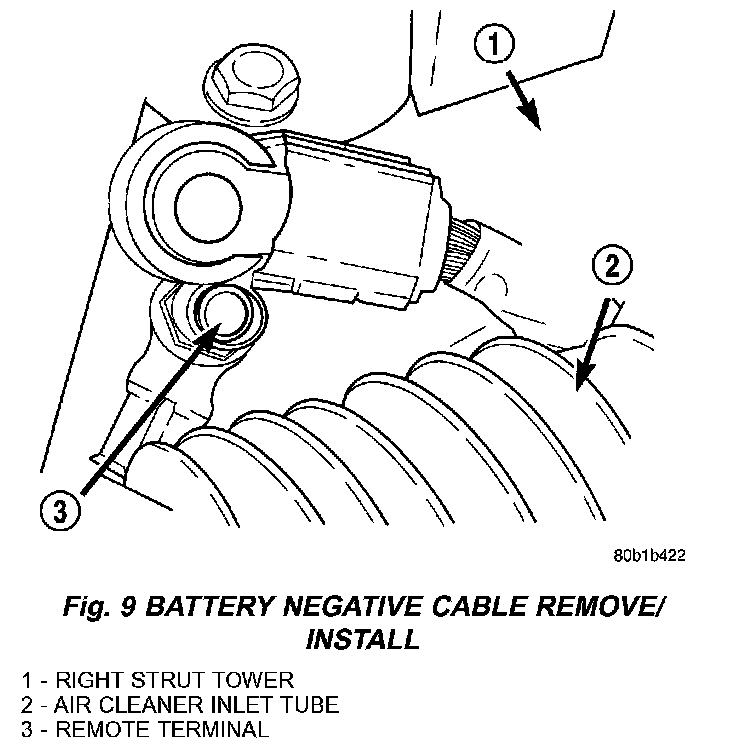

Fig.9 Battery Negative Cable Remove/Install:

1. Open hood and disconnect the negative battery cable remote terminal from the remote battery post.
2. Remove the left instrument panel silencer. Refer to Body, Instrument Panel Silencer, Removal.
3. The flasher can be removed by pulling in a rearward direction.

INSTALLATION
1. Install the flasher by firmly pushing it into place.
2. Install the left instrument panel silencer. Refer to Body, Instrument Panel Silencer, Installation.
3. Connect the negative battery cable remote terminal to the remote battery post.
