Spot Lamp: Description and Operation

SPOT LAMP ASSEMBLY - POLICE

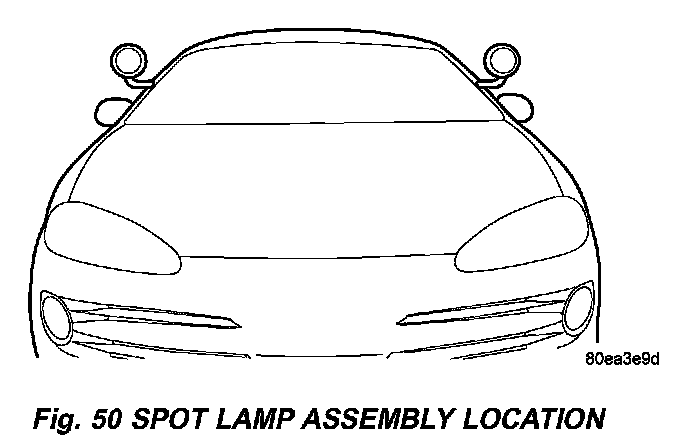

Fig.50 Spot Lamp Assembly Location:

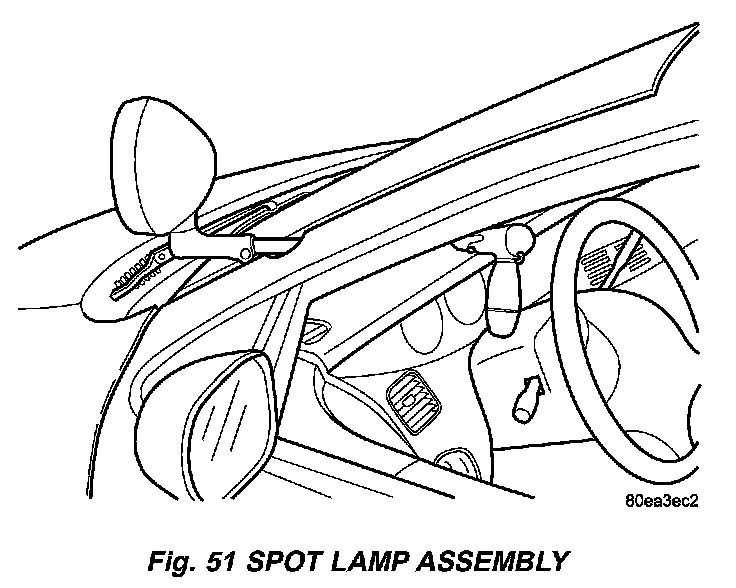

Fig.51 Spot Lamp Assembly:

This vehicle may be equipped with up to two spot lamp assemblies, attached to the A-Pillars (Fig. 50). The spot lamp assembly switch is located on the handle (Fig. 51), just above the rotating handle grip.

Each spot lamp assembly contains a 100 watt halogen bulb. The spot lamp assemblies are fused individually and powered hot at all times. There are three fuses in the Power Distribution Center (PDC) that control the spot lamp assemblies:
- Fuse F - IP ACC3/SPOT LPS - 50 amp
- Fuse X - SPOT LP LT - 20 amp
- Fuse Y - SPOT LP RT/UNDERHOOD - 20 amp

The parts available for service are:
- Complete spot lamp assembly
- FI3 100 watt halogen bulb.
- Inside control handle w/switch.

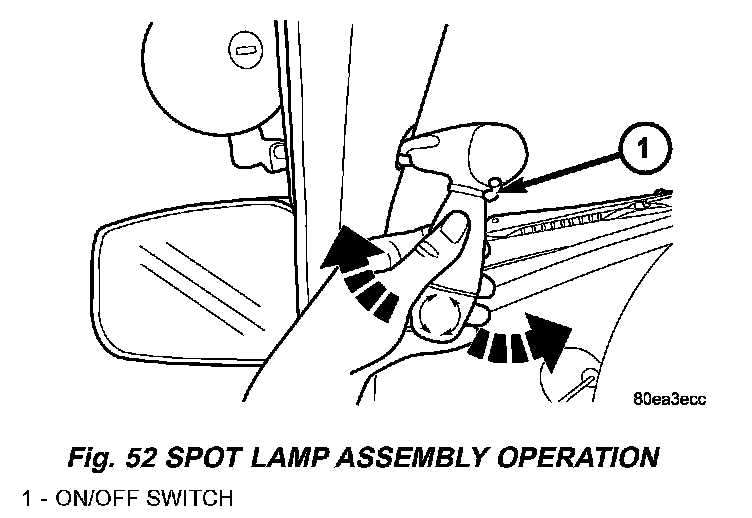

Fig.52 Spot Lamp Assembly Operation:

Use this switch to turn the spot lamp assembly ON and OFF. Rotate and twist the handle to adjust the position of the spot lamp assembly (Fig. 52).
