License Plate Lamp Replacement

REMOVAL
1. Remove screws attaching license plate lamp to rear bumper fascia
2. Remove license plate lamp from rear bumper fascia.

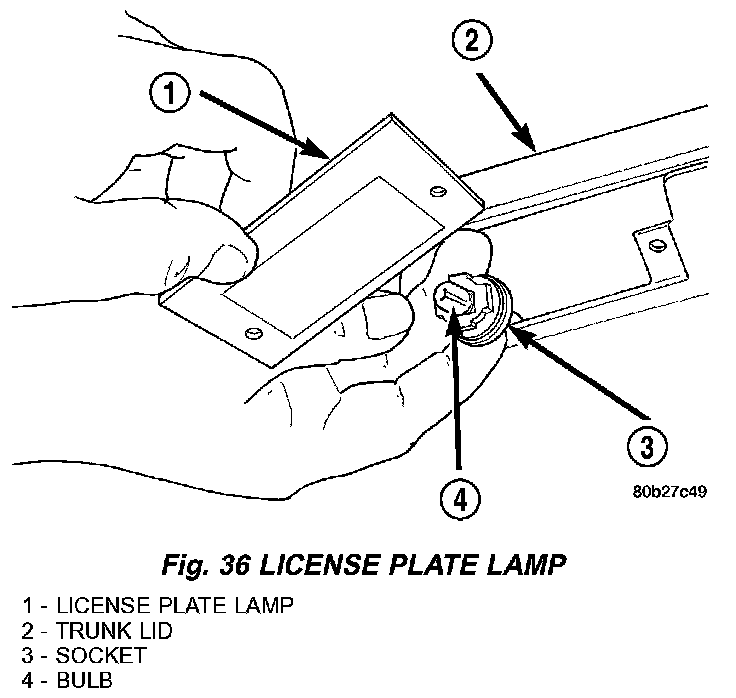

Fig.36 License Plate Lamp:

3. Remove socket from lamp (Fig. 36).
4. Pull bulb from socket.

INSTALLATION
1. Push bulb into socket.
2. Install socket into lamp.
3. Place license plate lamp in position on rear bumper fascia.
4. Install screws to attach license plate lamp to rear bumper fascia
