Headlamp Switch Test

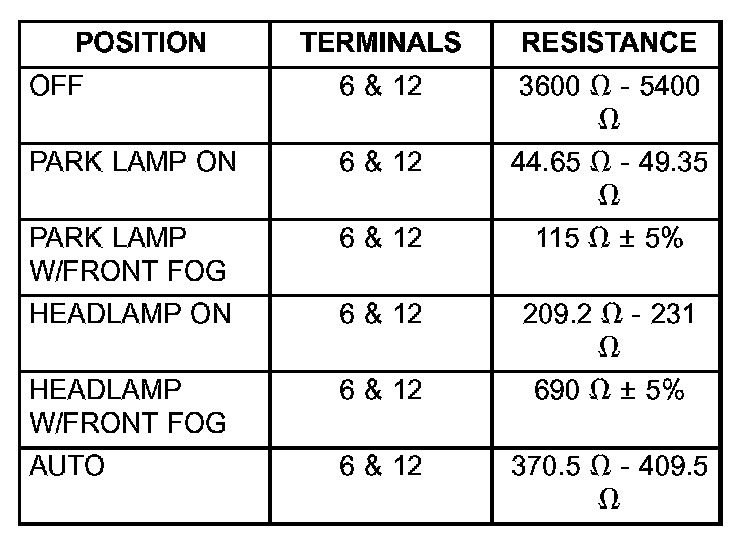

Headlamp Switch Resistance Part 1:

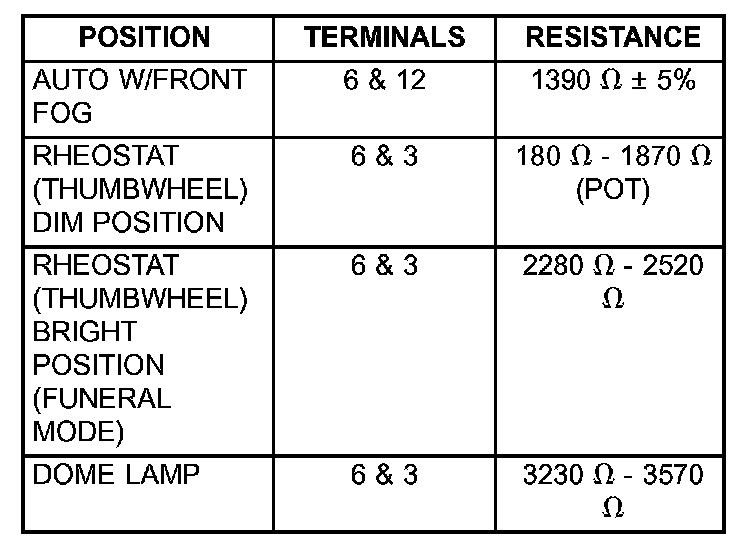

Headlamp Switch Resistance Part 2:

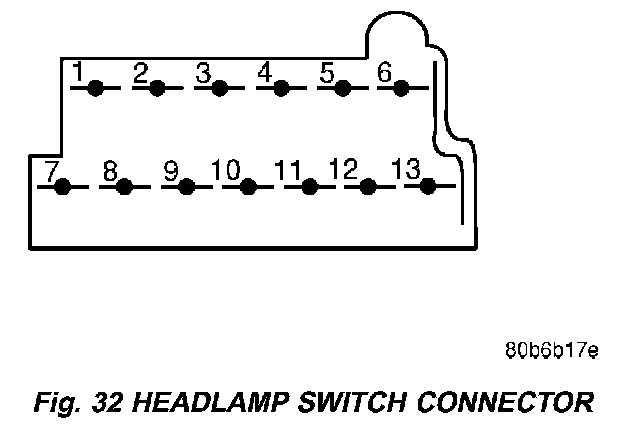

Fig.32 Headlamp Switch Connector:

Using an ohmmeter, test for resistance values between the terminals of the switch as shown in the HEADLAMP SWITCH RESISTANCE table and (Fig. 32).
